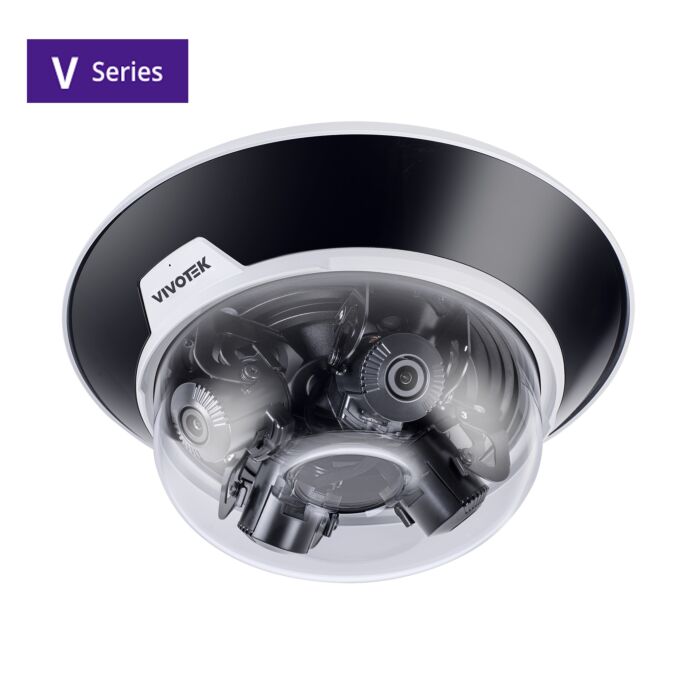

Vivotek MA9322-EHTV-V2 4 x 5MP Multi-Directional Panoramic AI Camera
SKU: MA9322-EHTV-V2
Contact Us for Stock Levels
Key Features:
- 4 x 5MP (2560x1920) Resolution
- Up to 30fps
- Motorised Varifocal Lens with Remote Focus
- Lens Focal Length = 3.2 - 7.7mm
- AI-powered Smart Motion Detection and Smart VCA
- Built-in IR Illuminators up to 30m
- Two-way audio (requires AO-006 cable)
- Signed Firmware, Secure Boot, TPM 2.0
- IP66, IK10, and NEMA 4X-rated Protection
- Trend Micro IoT Security
- NDAA compliant
This camera is powered by 24V AC or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek MA9322-EHTV-V2 Quick Installation Guide
Vivotek MA9322-EHTV-V2 User Manual
Vivotek V-Series Multi-Directional Panoramic AI Cameras Datasheet
Vivotek Product Brochure
Please note that this product may be subject to a 7~10 day lead time to fetch it from the manufacturer.
Contact us before purchase for specific lead times.
Cloud-based Video Surveillance Solution
Details
The Vivotek MA9322-EHTV-V2 Multi-Directional Camera delivers 5MP resolution in each of its 4 channels. Its panoramic field of view eliminates blind spots and reduces the need for multiple cameras. It is equipped with built-in IR illuminators, effective up to 30m, and is IP66, IK10, and NEMA 4X-rated, making it suitable for outdoor use.

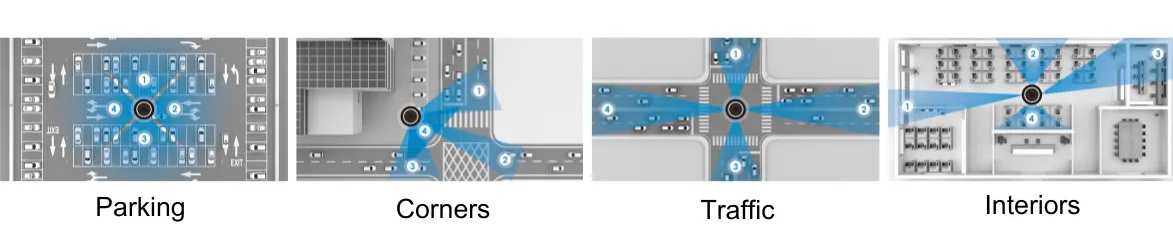

Typical Application
Events
Event Triggers - Audio detection*, Camera tampering detection, Cybersecurity events (brute force attack event, cyberattack event, quarantine event), Digital input*, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, Shock detection, and System boot.
*Requires AO-006 cable
Event Actions - Event Notifications via Audio clip*, Camera link, Digital output*, Email, HTTP, FTP/SFTP, NAS server, and SD card.
File Upload via Email, HTTP, FTP/SFTP, NAS server, and SD card.
*Requires AO-006 cable
DORI: Detect, Observe, Recognise, Identify
A camera's DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25PPM / 8PPF | 63PPM / 19PPF | 125PPM / 38PPF | 250PPM / 76PPF |
| 3.2-7.7mm | 68.5m/136.9m | 27.4m/54.8m | 13.7m/27.4m | 6.8m/13.7m |
Included Accessories:
- Quick installation guide
- Alignment sticker
- Desiccant bag
- Screws pack
- Screw driver
