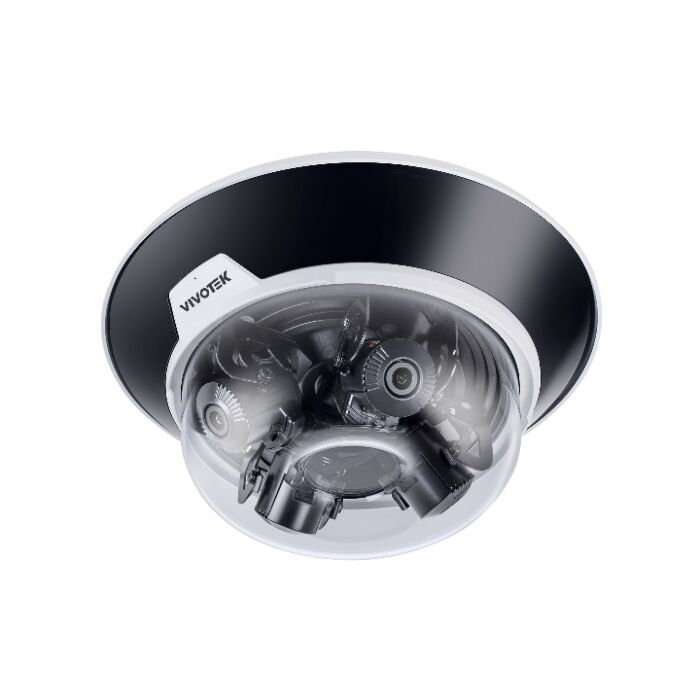

Vivotek MA9322-EHTVL Multi-Sensor Adjustable Dome Network Camera
SKU: MA9322-EHTVL
Contact Us for Stock Levels
Key Features:
- 20MP Total Resolution
- 4x Independent 5MP Sensors, with adjustable views
- Motorised, Vari-focal Lens - 3.7 ~ 7.7mm
- Built-in Installation aids - Remote focus, and Remote zoom
- 12 fps at 2688x1920 per Sensor
- H.265 Compression technology
- WDR (Wide Dynamic Range) Pro 120dB - for optimal image quality in areas of high contrast
- SNV (Supreme Night Visibility) - for impressive performance in Low Light conditions
- Built-in IR Illuminators - up to 30m
- Weather-proof IP66 and Vandal-proof IK10
- Built-in Microphone
- Operating Temperature - -40°c ~ 50°c
- System Requirments - Operating System | Windows 10/8/7 or Mac 10.12 (Chrome only)
- Live Viewing for up to 20 Clients
- Effective Security Protocols - Includes Access list, Password protection, User access log, and more
- NDAA Compliant
This camera is powered by 24V AC, or PoE. We recommend using PoE.
Please note this camera is supplied without a power supply.
Vivotek Product Brochure
Vivotek MA9322-EHTVL User Manual
Vivotek MA9322-EHTVL Quick Installation Guide
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The Vivotek MA9322-EHTVL is a Multi-directional Adjustable view Dome camera, with 20MP total resolution, made up of four Independent 5MP sensors, allowing for the most flexible, wide reaching surveillance experiance possible.
Main Features

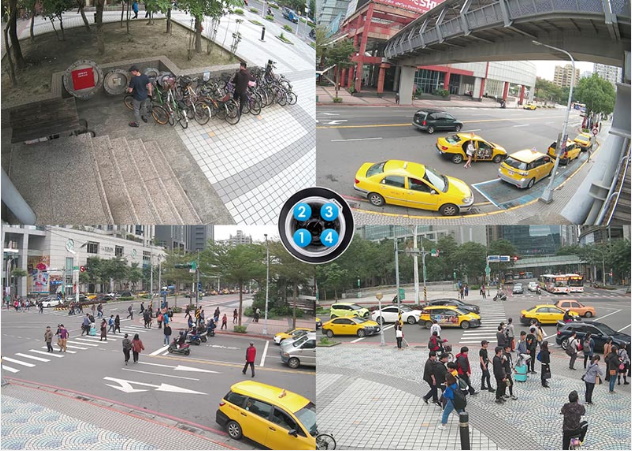

Wide Area Coverage - With four independent sensors, each focused on individual points of view, users can keep an eye on a 360° with ease, using just one camera - designed with a 3-axis layout along a circular track.
Each sensor utilises a 3.7 to 7.7mm motorised focus lens, with 2688x1920 5MP resolution, equipped with a removable IR-cut filter and WDR Pro technology, to allow for impressive image quality.

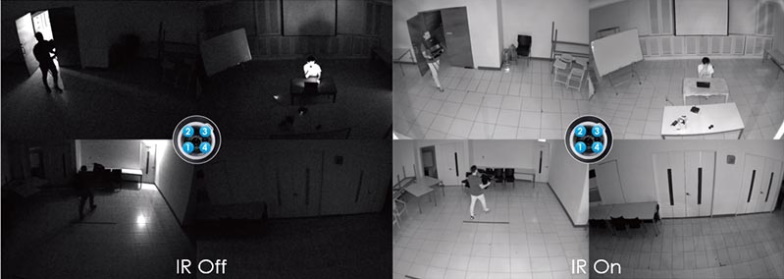

Extreme Low Light Visibility - With its application of WDR (Wide Dynamic Range - used to improve visibility of objects in areas with both very bright or dim light) Pro technology, SNV (Supreme Night Visibility - to improve performance in low light conditions), and up to 30m IR Illumination, the MA9322-EHTVL offers impressive image quality regardless of the time of day, or amount of light in a scene.
Ideal for a Range of Applications - With its various features and ability to capture every angle of a scene, the MA9322-EHTVL offers a time and cost saving solution (acting as a single camera where traditional setups would require multiple) ideal for a wide variety of different applications/environments. Some examples include:
Alarms and Events
Event Triggers - Audio detection, Camera Tampering detection, Digital input, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD Card life expectancy, System boot
Event Actions - Event Notification via Audio clip, Digital output, Email, HTTP, FTP, NAS server, SD card, and File Upload (via Email, HTTP, FTP, NAS or SD card)
DORI: Detect, Observe, Recognise, Identify
A camera's DORI distance provides users with a general overview of its capability to distinguish between people and objects found within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25ppm / 8ppf | 63ppm / 19ppf | 125ppm / 38ppf | 250ppm / 76ppf |
| Distance (Wide / Tele) | 74m / 153.9m | 29.3m / 61.1m | 14.8m / 30.8m | 7.4m / 15.4m |
Packing Contents:
- Quick Installation Guide
- Alignment sticker
- Desiccant bag
- Screw driver
- Screws pack
Dimensions:
