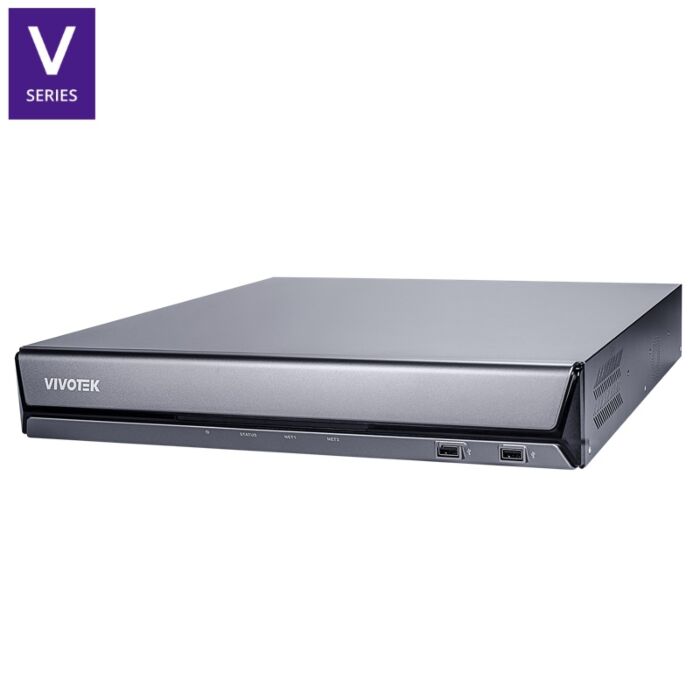

Vivotek ND9442P 16-ch Embedded PoE Network Video Recorder
SKU: ND9442P
Out of stock
Key Features:
- LiveView Display - 16-channels
- Up to 4K Video Output Display - allows for clear and detailed surveillance footage
- 1080P Image Resolution, at 360fps
- Decoding resolution - 7680x2560 at 90fps
- Supports cameras up to 20MP
- Playback Display - 4 channels | Multi-layout Display - 1x1, 2x2, 1P+3, and, 3V
- Supports Deep Search technologies - Includes; Attribute search, and Scene search
- Includes Vivotek Smart VCA - supports VCA counting solution and Event search
- Equipped with 16 PoE ports, 802.3at/af, and PoE Management
- Supports RAID 0, 1, and, 5 - to prevent Recording Data loss
- Alarm In/Out - 16 / 8
- Equipped with Trend Micro IoT Security and Cybersecurity management
- Support for VIVOCloud app, VAST 2, and VSS
- Operating Conditions - Temperature: -10°c ~ 55°c | Humidity: 0 ~ 90%
Please Note: this NVR is supplied without hard drives. Vivotek recommends Western Digital HDDs, ranging from 8 to 12 TB.
Recommended HDDs -
Western Digital WD8001PURP (8TB), WD101PURP (10TB), and, WD121PURZ (12TB)
Vivotek Product Brochure
Vivotek ND9542P | ND9442P Quick Installation Guide
Vivotek ND9542P | ND9442P User Manual
Please contact us for stock levels of this product.
If in stock in Europe please allow 7-10 working days for delivery.
Details
The ND9442P is a 16-channel Network Video Recorder, with support for Multi-layout display, and a selection of Advanced features (including Deep Search and VCA solutions)
Vivotek have also designed the ND9442P to feature impressive, next generation, NVR Firmware - Core+AI
With Core+AI NVRs are capable of Deep search functions (comprised of Attribute search and Scene search), utilising AI, to offer users the most efficient and effective surveillance / evidence search experience possible.
Main Features and Specs
Deep Search Capabilties - Includes; Object Search (people, vehicle), Scene Search, and, Attribute Search
Attribute Search - uses people and vehicles as search criteria using a range of attributes to accurately find a person or vehicle of interest. Supported attributes include - Gender, Age, Clothing colour, and Accessories (for people), along with, Vehicle Type, and Vehicle Colour (for vehicles)
Scene Search - allows users to search through a specific camera's video footage, to find evidence / footage of interest, using detection capabilities - including; Line crossing, Intrusion, and Loitering (to detect suspicious activity within the camera's field of view)
Advanced Features - Includes; VCA Counting, VCA Event Search, Smart Search II, Trend Micro IoT Security, Cybersecurity management
Smart VCA Event Search - working alongside alarm management (to alert users if suspicious activity has occurred), the ND9442P supports event search, allowing users to search through footage with filters relating to single or multiple event types (please see the list of 'detection capabilties' for Scene Search). Users can then playback triggered events and export search results to video clips, ready for use if the need for evidence should arise.
(Please note: these features require Smart VCA enabled cameras)
Impressive Video Input and Output capabilties - The ND9442P is equipped for use with high resolution IP Cameras, with up to 4K video input and output. This allows high res video surveillance systems to work as effectively as possible, allowing users to experience highly detailed video surveillance.
VIVOCloud App and Portal - With support for the VIVOCloud app, surveillance with the ND9442P is made portable, and capable of on-the-go 24/7 viewing. Equipped for convenient remote access, users can view live streams and play recorded video anytime, anywhere.

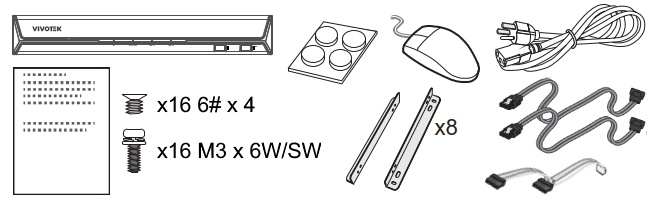

Packing Contents:
Interface Overview:

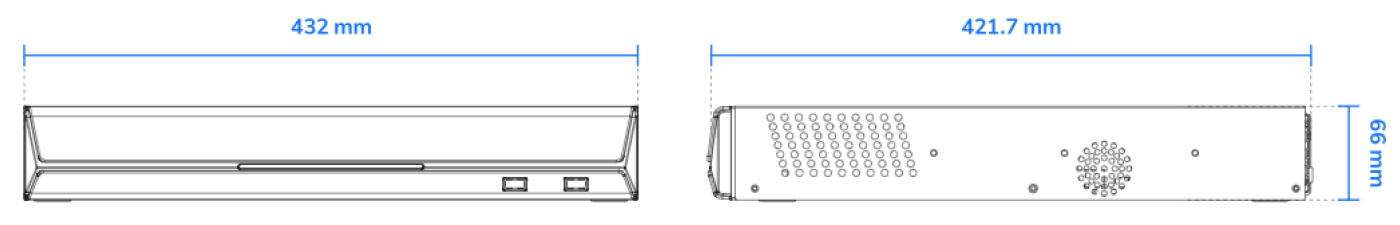

Dimensions:
