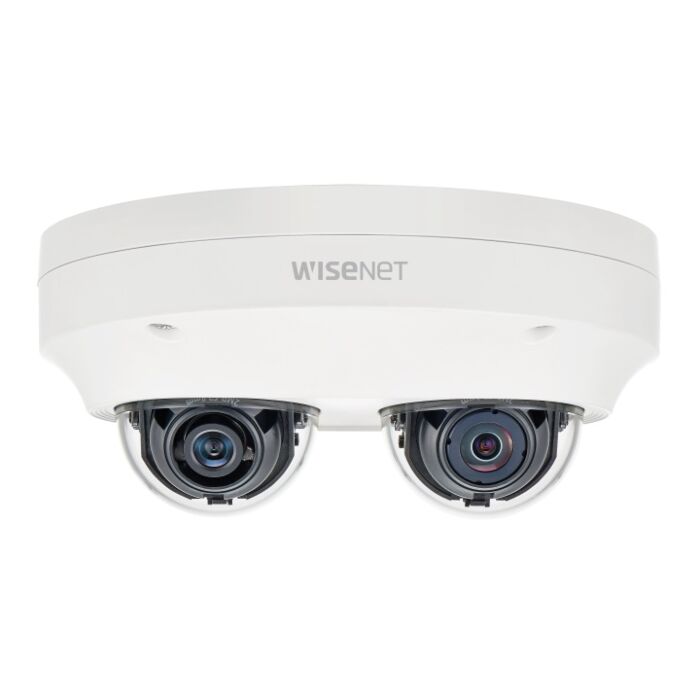

Wisenet PNM-7002VD 2MP x 2ch Multi-directional Camera
SKU: PNM-7002VD
Out of stock
Key Features:
- 2ea x 1920 x 1080 resolution
- Max. 60fps @ 2MP (H.265/H.264)
- H.265, H.264, MJPEG codec supported
- Day and Night, WDR (150dB)
- Loitering, Directional detection, Fog detection
- Motion detection, Tampering, WiseStream II support
- SD/SDHC/SDXC memory 2 slots (each camera)
- IP66 weather resistant
- IK10 vandal resistant
- Operating temperature -40°C ~ 55°C
- Multiple language options
- ONVIF
This product is powered by PoE.
Please note: this product does not come with a power supply.

This product is supplied without lenses
Lenses must be purchased separately.

Wisenet PNM-7002VD User Manual
Wisenet PNM-7002VD Quick Guide
Wisenet P Series Brochure
Wisenet Quick Guide
Hanwha Solutions Brochure
Hanwha Techwin Product Portfolio

This product may not be immediately available from UK stock, in which case it may take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for your lead time.


Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet PNM-7002VD is a 2MP multi-directional camera that the user can select their own lens combination for. The double dome design allows users to cover more than one area with the same camera unit, as each lens can be positioned to cover the area desired, as demonstrated by the demo video at the bottom of the page.
This camera is not supplied with lenses. You must purchase your lens choices separately.
Available lenses:
- SLA-2M2400D (2.4mm)
- SLA-2M2800D (2.8mm)
- SLA-2M3600D (3.6mm)
- SLA-2M6000D (6mm)
The PNM-7002VD has an IP66 weatherproof-rated and IK10 vandal resistant-rated housing making it suitable for use in a wide range of applications, both indoors and outdoors. The multi-directional design makes it perfect for use in scenarios where there are more than one area of interest such as a reception area or in long or angled corridors.

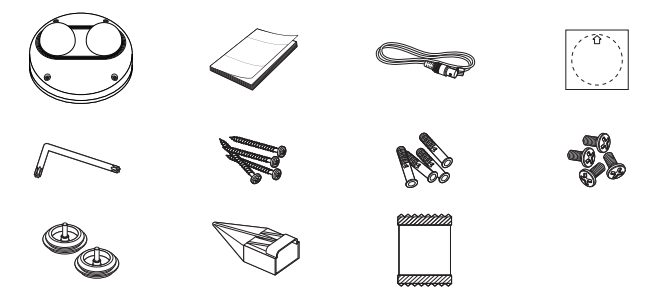

Pack Contents:
- PNM-7002VD x 1
- Cable for testing monitor x 1
- Mounting template x 1
- Torx L-wrench x 1
- Tapping screw x 4
- Plastic anchor x 4
- Machine screws x 4
- Cable bush x 2
- Cap installer x 1



2.4mm - Horizontal field of view: 135.4°
2.8mm - Horizontal field of view: 107.4°
3.6mm - Horizontal field of view: 94.8°
6mm - Horizontal field of view: 50.4°
For help on figuring out which focal length is best for you please see here.
