Wisenet PNM-9000QB 2MP x 4CH Remote Head Camera
SKU: PNM-9000QB
Out of stock
Key Features:
- 4 channels of 2MP video
- extreme WDR 150dB
- Defocus detection, directional detection, motion detection etc
- Max 30fps@2MP
- Compatible with:
- SLA-T4680VA
- SLA-T1080FA
Please Note: This camera module is supplied WITHOUT lenses! for this product.
Wisenet PNM-9000QB User Manual
Wisenet PNM-9000QB Quick Guide
Wisenet P Series Brochure
Hanwha Solutions Brochure
Hanwha Product Portfolio
This product may not be immediately available from UK stock, in which case it will take 7~14 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful Wisenet Tools
- Wisenet WAVE
- Wisenet Device Manager
Details

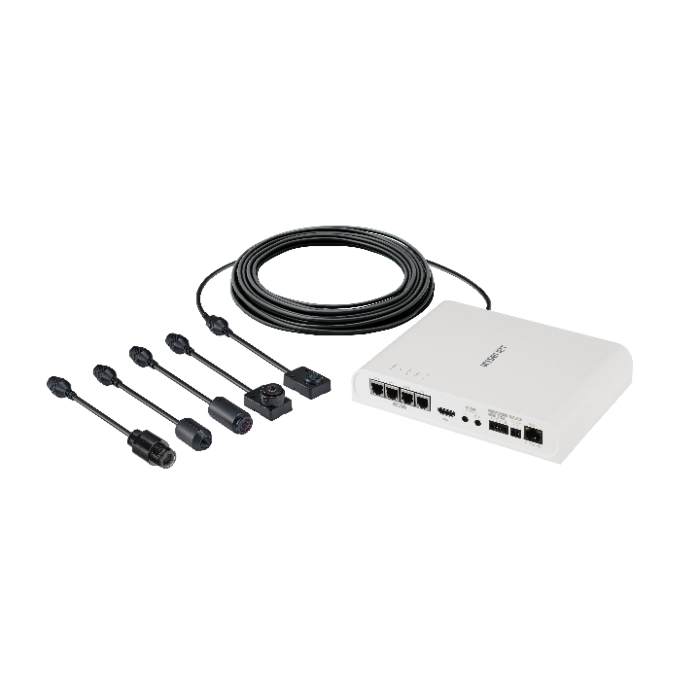

The Wisenet PNM-9000QB camera module has been designed by Hanwha Techwin specifically for ATMs, retail and other covert fraud and theft detection applications.
The PNM-9000QB has the Wisenet7 chipset which features the latest generation of 'extreme' Wide Dynamic Range (WDR) technology. With a performance of up to 120dB the device can capture clear, sharp 2 megapixel full HD images at the full frame rate. As well as this, thanks to the Wisenet7 chipset, the PNM-9000QB module is able to simultaneously process images from the 4 remote head cameras.
The remote camera heads comprise an image sensor camera equipped with a fixed, pinhole or fisheye lens. The camera lenses are designed to be installed remotely from the other components of the PNM-9000QB camera body. This enables the lenses to be installed discretely within an ATM or other locations such as the corner of rooms or in a lift.
Due to the lowered cable and network switch requirement the PNM-9000QB is far more cost-effective than its single channel predecessor. With just a single IP connection, there is a cost-saving for end-users, as only one VMS licence is required.
The unit also features Tamper Detection which generates an alarm if someone, covers, changes the angle or paints the camera lenses. This features is part of the suite of Intelligent Video Analytics (IVA) along with defocus detection, motion detection and loitering detection.
Equipped with WiseStream II, bandwidth costs for the PNM-9000QB are significantly reduced. When WiseStream II is combined with the H.265 compression bandwidth efficiency is improved by up to 75% compared to H.264 technology.
With 2 microSD/SDHC/SDXC slots users can store up to 512GB directly on the device, this can provide great backup for if there are any disruptions to the footage stored on the NVR. The Automatic Recovery Back-up (ARB) feature built into the latest generation of Wisenet NVRs, facilitates the transfer and seamless storage of the images stored on the PNM-9000QB’s SD cards when the network connection is restored.
The PNM-9000QB has also been developed to meet the UK’s Secure by Default standard and as such, is cyber and network secure by default out-of-the-box.
