Wisenet PNM-9022V 4CH x 2MP H.265 Panoramic 209˚ Camera
SKU: PNM-9022V
Out of stock
Key Features:
- Max. 2MP x 4CH
- 209Ë Mode, 180Ë Mode support
- 2.8mm fixed focal lens x 4
- H.265/H.264 : Max. 30fps
- MJPEG : Max. 30fps
- extreme WDR (120dB)
- H.265, H.264, MJPEG codec
- WiseStreamII supported
- Digital PTZ Support (2CH)
- Tampering, Heatmap
- IP66 weather-resistant
- IK10 vandal-resistant
- NEMA4X
This camera can be powered by PoE+ or 12V DC.
We recommend using PoE+ to power the camera for ease of use.
Please note the camera does not come with a power supply.


Wisenet PNM-9022V User Manual
Wisenet PNM-9022V Quick Guide
Hanwha Solutions Brochure
Hanwha Product Portfolio

This product is not available from UK stock, in which case it will take 7~10 working days to fetch it from their European warehouse.

Useful Wisenet Tools
- Wisenet WAVE
- Wisenet Device Manager
Details

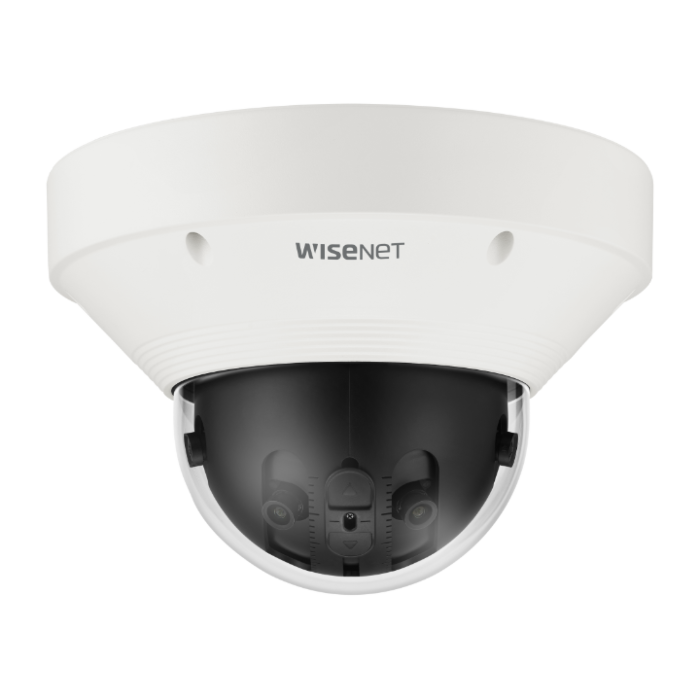

The PNM-9022V is a panoramic camera by Hanwha Techwin that covers a wide area up to 209˚. The camera features 4 x 2MP cameras in order to achieve the coverage of such a wide area. This camera is easy to install, all users need to do is install the back plate, put the camera on the hinge and clip into place and then tighten the 2 screws. It is as simple as that.
The PNM-9022V features Wisenet7 SoC, which is Hanwha Techwin's most powerful chipset to date. This enables the camera to capture powerful high definition colour images even when the lighting level is as low as 0.03Lux. The camera also features 'extreme' Wide Dynamic Range (WDR) technology performing at up to 120dB. This utilises new Local Contrast Enhancement and Scene Analysis technologies to enable the camera to capture clear images in both bright and dark areas.
The camera also has Lens Distortion Correction (LDC) technology which corrects the distortion created through the use of wide-angle lenses to deliver images that closely resemble what is seen through the human eye.
The PNM-9022V is one of many of the new Hanwha cameras which incorporates the UL CAP certificated Wisenet7 chipset and the National Defence Authorisation Act (NDAA) compliant. The device also has the Hanwha Techwin device certificate issuing system, which embeds unique certificates into Wisenet7 products during both the development phase and manufacturing process. This helps to prevent potential hackers from tampering with the firmware.
The camera features 2 microSD/SDHC/SDXC card slots which enable up to 1TB of video or data to be stored on the camera should there be any disruption to the network. Video of any incidents, which could have been lost on the recorder side, are now able to be retrieved from the camera when the network connection has been restored.

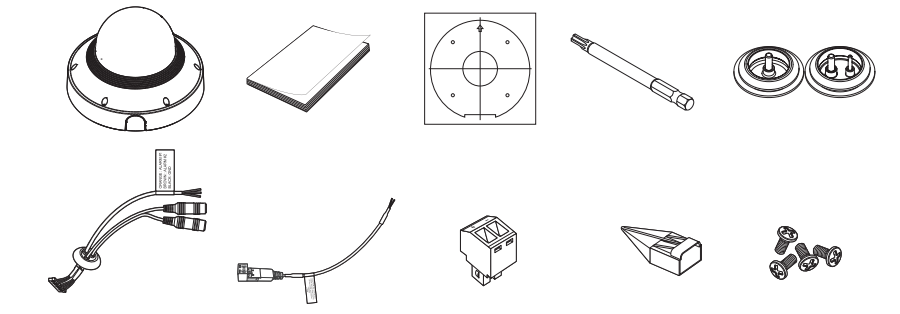

Pack Contents:
- PNM-9022V x 1
- Power terminal block x 1
- Mounting template x 1
- Power cable x 1
- Audio/alarm cable x 1
- Cable bushing x 2
- Machine screws x 4
- Cap installer x 1
- Screw bit x 1
