Wisenet PNM-9084QZ 2MP x 4ch PTRZ Multi-directional Camera

Contact Us for Stock Levels
SKU
PNM-9084QZ
£1,353.60 £1,128.00

Key Features:

- 2MP x 4ch multi-directional camera

- PTRZ support

- Hallway view support with CH1/CH2/CH3/CH4

- Max. 60fps @ 2MP (H.265, H.264), Max. 30fps @ 2MP (MJPEG)

- 3~6mm (2x) motorised varifocal lens

- H.265, H.264, MJPEG codec, Multi-streaming

- Video analytics, WiseStreamII

- IP66, IK10, NEMA4X


This product is powered by PoE. Please note: this product does not come with a power supply.



Wisenet PNM-9084QZ User Manual Wisenet PNM-9084QZ Quick Guide Wisenet P Series Brochure Wisenet Quick Guide Wisenet Product Line Up


Product Datasheets

Wisenet PNM-9084QZ 2MP x 4ch PTRZ Multi-directional Camera Datasheet (0.36MB)


This product is made to order so will incur a lead time. Please contact us before purchase.



Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager

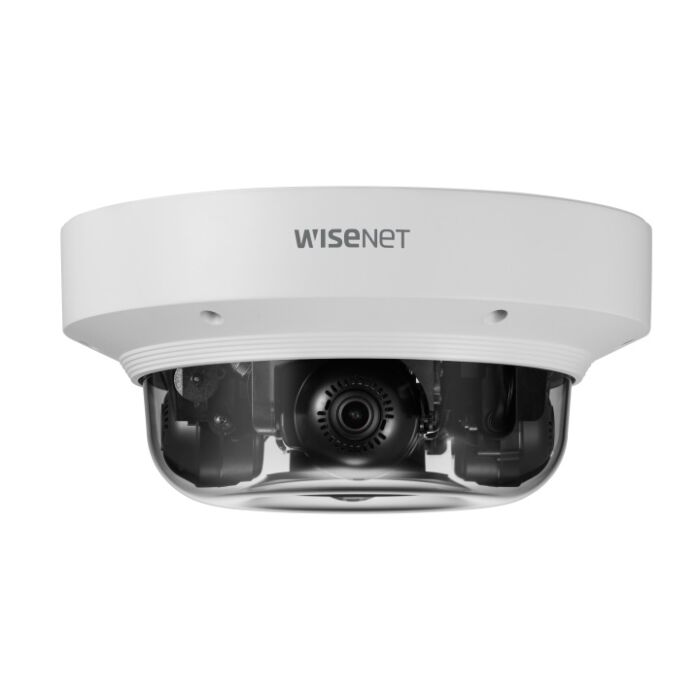

The Wisenet PNM-9084QZ is a 2 megapixel by 4 channel multi-directional camera that boasts a wealth of features including complete 360° view, audio/alarm support and PTRZ support.

The camera is ideal for use in a wide range of applications including commercial, hospital, school and warehouse thanks to the PNM-9084QZ's IP66, IK10 and NEMA4X rated housing. The housing protects the camera against harsh outdoor weather conditions as well as vandal attempts.

This product is not only for use in outdoor applications but makes an affordable solution for indoor applications too, particularly for a requirement where a user wants to view activity taking place along a corridor.

Each of the cameras four sensors offer true day/night functionality and is able to capture 2 megapixel high definition colour images when light levels are as low as 0.04Lux.

The PNM-9084QZ uses WiseStreamII which dynamically controls encoding, balancing quality and compression according to movement in the image. Bandwidth is also dramatically improved by up to 75% compared to using H.264 technology.

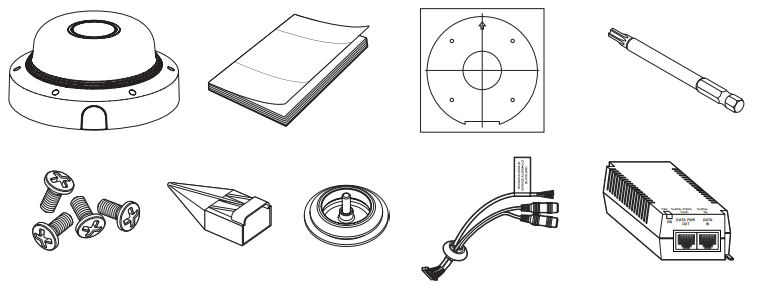

Pack Contents:

- PNM-9084QZ x 1

- Mounting template x 1

- Machine screws x 1

- Cap installer x 1

- Drill bit x 1

- Cable bush x 2

- HPoE injector x 1

- Audio/Alarm cable x 1

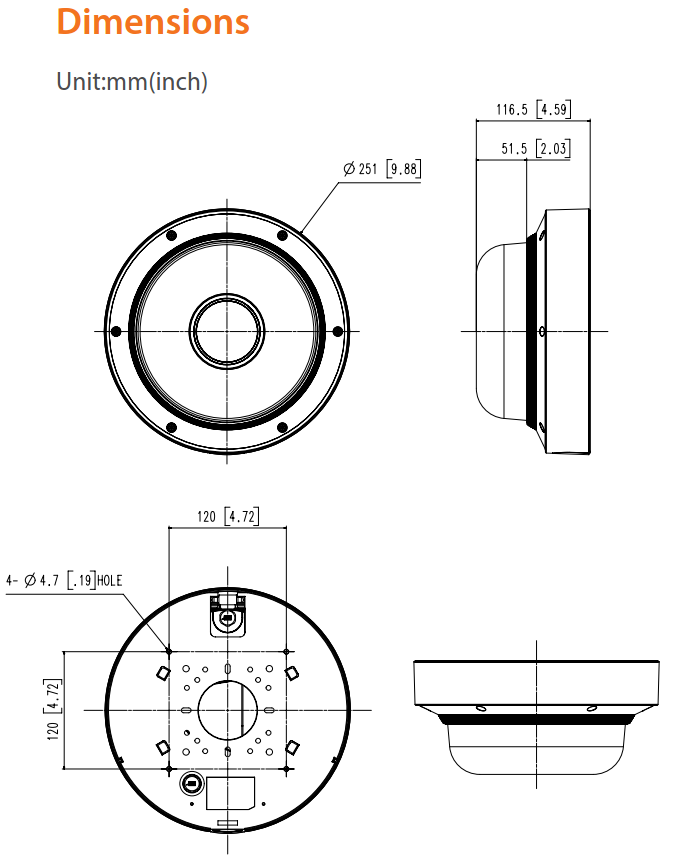

PNM-9084QZ Dimensions

3mm - 6mm: Horizontal field of view: 107° to 56.3°

For help on figuring out which focal length is best for you please see here.

Specs
Country Of Origin South Korea
Image chip size 1/2.8"
Image chip type CMOS
Image Compression H.265,H.264,MJPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 1945 x 1097
Min. low-light lux 0.004
Supply Volts POE only
Lens Mount DC auto iris
Lens Focal Length 3~6mm
Viewing Angle 107° ~ 56.3° Horizontal Field of View
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens DC Iris
Max. Images per second 60
PSU included No
ONVIF Compatible Yes
Power Consumption max. 33W
Warranty 3 Years
Launch Date Summer 2021
