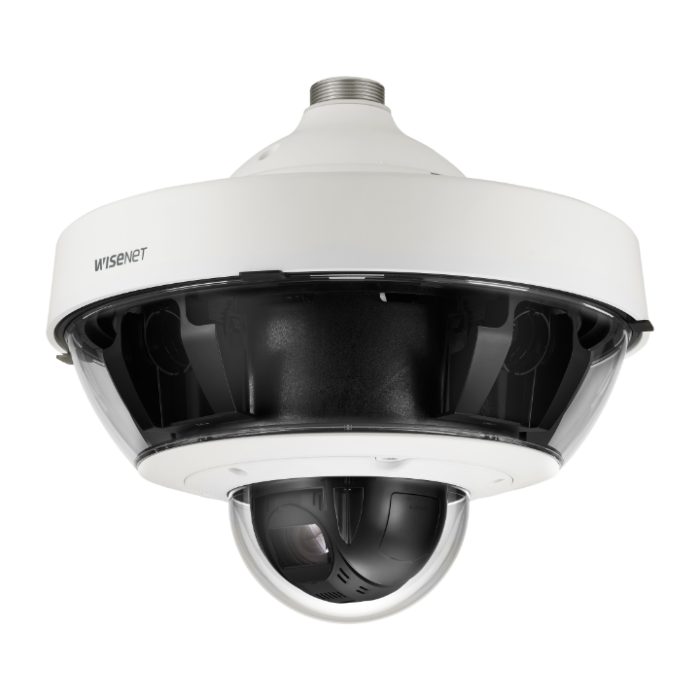

Wisenet PNM-9322VQP Multi-Directional PTZ Camera
SKU: PNM-9322VQP
Out of stock
Key Features:
- Exchangeable 4ea x 2M / 5M lens modules
- 10M to 20M resolution (depend on the combination of lens modules)
- Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
- WDR 150dB with 2M, 120dB with 5M lens module
- 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
- 3.7mm, 4.6mm, 7mm fixed lens (5M module)
- H.265, H.264, MJPEG codec,WiseStreamII
- SD / SDHC / SDXC memory 5 slots
- 4.44~142.6mm(Optical 32x) lens
- Day&Night (ICR)
- New install base design
- IP66 weather resistant
- IK10 vandal resistant
- Operating temperature -35°C ~ 55°C
- MicroSD/SDHC/SDXC card slot
- ONVIF
This camera is powered by HPoE and is supplied with a HPoE injector.
Wisenet PNM-9322VQP User Manual
Wisenet PNM-9322VQP Quick Guide
Hanwha Solutions Brochure
Hanwha Techwin Product Portfolio
This product may not be immediately available from UK stock, in which case it may take 7~10 working days to fetch it from their European warehouse.
Please contact us before purchasing for your lead time.
Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet PNM-9322VQP is a multi-directional Pan Tilt Zoom camera which has been designed by Hanwha Techwin to provide a highly cost-effective solution for detecting and tracking object over wide, open areas.
This camera has the option of selecting exchangeable 2 and 5 megapixel lens modules, which in turn allows the camera's sensors to work together in order to capture 360° images up to 20 megapixels. Making the PNM-9322VQP ideal for use in a wide range of applications that require complete 360 surveillance. As well as this the devices PTZ camera element can be configured to zoom in and track a moving object along with moving to a user-defined preset positions when the line crossing detection function detects any activity.
The PNM-9322VQP is equipped with the Wisenet7 chipset and is NDAA compliant making it the perfect successor to the highly popular PNM-9320VQP camera.
The Wisenet PNM-9322VQP has a choice of optional lenses that customers can purchased separately so users can create the camera that best suits their needs:
- SLA-2M2400P(2MP 2.4mm)
- SLA-2M2800P(2MP 2.8mm)
- SLA-2M3600P(2MP 3.6mm)
- SLA-2M6000P(2MP 6.0mm)
- SLA-2M1200P(2MP 12mm)
- SLA-5M3700P(5MP 3.7mm)
- SLA-5M4600P(5MP 4.6mm)
- SLA-5M7000P(5MP 7.0mm)
The PNM-9322VQP is packed full of high quality features which include Wisenet's cutting-edge WDR technology which even with backlight is able to address the limitation found in conventional WDR cameras while producing clear and vivid images.
The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
Another great asset of the Wisenet P series multi-sensor cameras is that they support a variety of exclusive video and audio analytics, which includes face detection, tampering notification and motion detection.

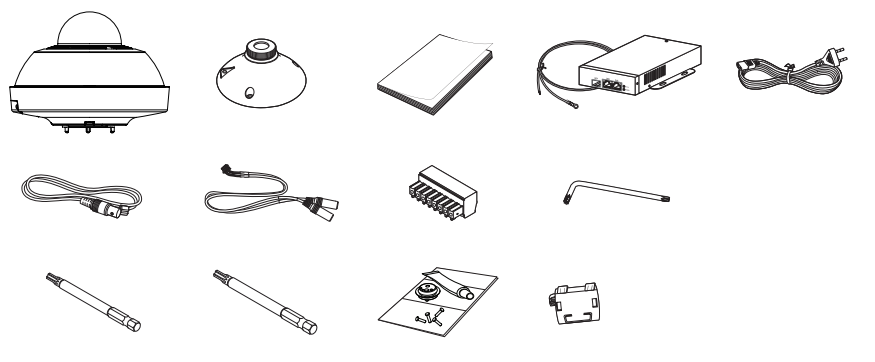

Pack Contents:
- PNM-9322VQP x 1
- Cable for testing monitor x 1
- Power cord x 1
- SFP HPoE injector x 1
- Audio cable x 1
- Alarm terminal block x 1
- Torx L-wrench x 1
- Waterproof accessories x 1
- Screw bit (Torx 30) x 1
- Screw bit (Torx 20) x 1
- Ferrite core x 1
