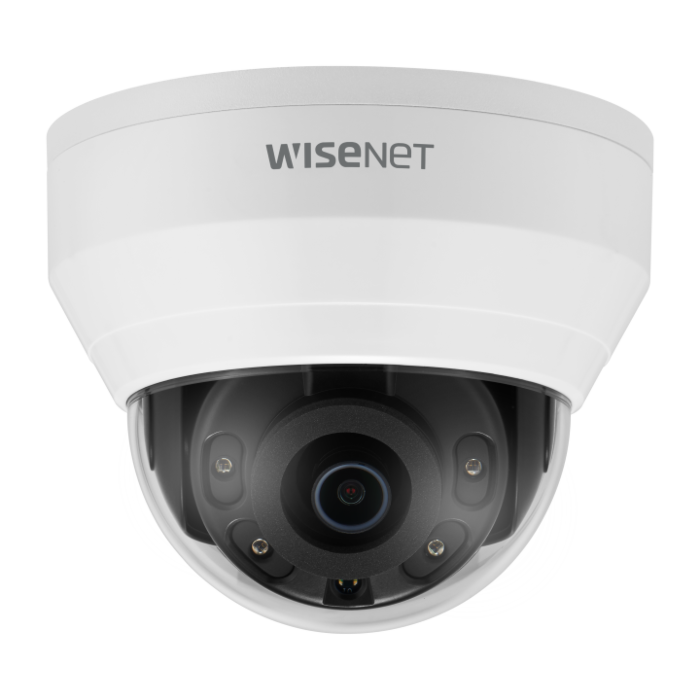

Wisenet QND-8010R/QND-8020R/QND-8030R 5MP Indoor Dome Camera
The 5 megapixel indoor dome cameras are part of Wisenet's new generation of Q series products. The Q series is a budget friendly range offering simple and essential features ideal for small to medium sized applications.
The QND-80x0R range of cameras come in three different focal length options: - QND-8010R ~ 2.8mm - QND-8020R ~ 4mm - QND-8030R ~ 6mm This choice enables users to select the camera with the focal length that best suits their needs.
Wisenet's Q series features a range of bullet, dome, flateye and PTZ camera as well as NVRs. View the full Q Series range here.
This product is powered by PoE. Please note: this product does not come with a power supply.
Wisenet Q Series User Manual Wisenet Q Series Quick Guide Wisenet Q Series Brochure Wisenet Quick Guide Wisenet Product Line Up
Product Datasheets
Wisenet QND-8010R/QND-8020R/QND-8030R 5MP Indoor Dome Camera Datasheet (0.31MB)
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.


Useful Wisenet Tools
- Wisenet WAVE
- Wisenet Device Manager
- Max. 5 megapixel resolution - 2.8mm/4mm/6mm focal length options - 0.15 Lux (Colour), 0 Lux (B/W, IR LED on) - Max. 30fps @ 5MP resolution - H.265, H.264, MJPEG codec support, multiple streaming - Day and Night, WDR (120dB) - Tampering, motion detection, defocus detection - MicroSD/SDHC/SDXC memory slot - Hallway view, WiseStream II support
QND-8010R - Horizontal field of view: 104.7° QND-8020R - Horizontal field of view: 82° QND-8030R - Horizontal field of view: 49.4°
For help on figuring out which focal length is best for you please see here.
Image chip size | 1/2.8" |
---|---|
Image chip type | CMOS |
Image Compression | H.265/H.264 (Main/High) and MJPEG |
Indoor / Outdoor | Indoors only |
Colour / monochrome | True Day/Night |
POE built-in | Yes |
POE Class | Class 3 (6.49-12.95W) |
Max. Resolution | 2592 X 1944 |
Min. low-light lux | 0 Lux (IR LED ON) |
Supply Volts | POE only |
Lens Mount | fixed lens |
Aspect ratio | 4:3 |
Megapixels | 5 MP |
Supplied with lens | Yes |
Max. Images per second | 30 |
PSU included | No |
ONVIF Compatible | Yes |
Power Consumption | max.7.5W |
Warranty | 3 Years |
Launch Date | June 2019 |
Video |
