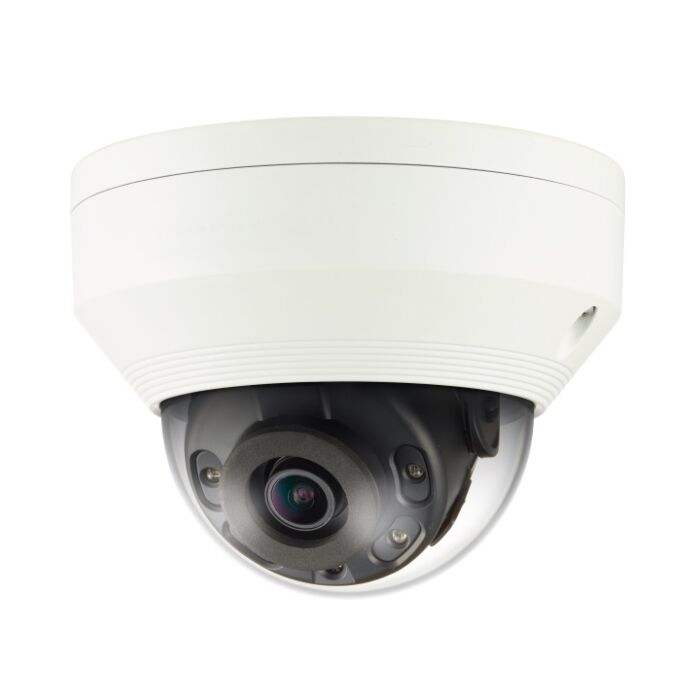

Wisenet QNV-7010R/QNV-7020R/QNV-7030R | 4MP Vandal-Resistant IR Dome Camera
SKU: QNV-7010R ~ EOL
Out of stock
The QNV-70x0R is now End of Life.
May we recommend the
Wisenet QNV-7012R/QNV-7022R/QNV-7032R
as a direct replacement.
Key Features:
- Max. 4 megapixel resolution
- Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- PoE / 12V DC
- IR viewable length 20m (QNV-7010R), 25m (QNV-7020R) 30m (QNV-7030R)
- Hallway view, WiseStream support
- IP66, IK10
- LDC support (Lens Distortion Correction)
This product can be powered by either PoE or a 12V DC PSU, we usually recommend PoE for ease of installation.
Please note: this product does not come with a power supply.
Wisenet Q Series User Manual
Wisenet Q Series Brochure
Wisenet Quick Guide
Wisenet Product Line Up
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Useful Wisenet Tools
- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet QNV-70x0R range of cameras are 4 megapixel vandal resistant dome cameras that have a choice of focal length options:
- QNV-7010R ~ 2.8mm
- QNV-7020R ~ 3.6mm
- QNV-7030R ~ 6mm
Please note: if you need help selecting a focal length we have a guide further down the product page.
As well as this the unit is ideal for use in indoor or outdoor applications with its IP66 weather-resistant and IK10 vandal-resistant housing which protects the cameras against both harsh outdoor weather conditions and vandal attempts. This camera can be used in a wide range of applications including outside of houses, offices, shops etc.
With a choice of either 12V DC or PoE power the device could not be easier to install. Selecting PoE will make the installation even simpler as both the power and data will be transported across the one cable saving on both installer time and cost.
The camera is able to produce excellent images both day and night with its auto (ICR) day and night lens and built-in IR LEDs effective up to 30m (dependent on model selected, QNV-7010R = 20m, QNV-7020R = 25m, QNV-7030R= 30m).

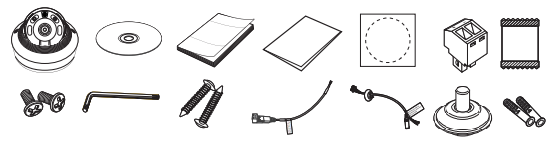

Packing List:
- QNV-7010R x 1
- Instruction book, installer S/W CD x 1
- Quick guide x 1
- Warranty card x 1
- Template x 1
- Power terminal block x 1
- Machine screws x 2
- L wrench x 1
- Tapping screw x 2
- Card-type absorbent x 1
- Power cable x 1
- Audio/alarm cable x 1
- Cable bush x 1
- Plastic anchor x 2
QNV-7010R - Horizontal field of view: 111° QNV-7020R - Horizontal field of view: 81° QNV-7030R - Horizontal field of view: 53°
For help on figuring out which focal length is best for you please see here.
