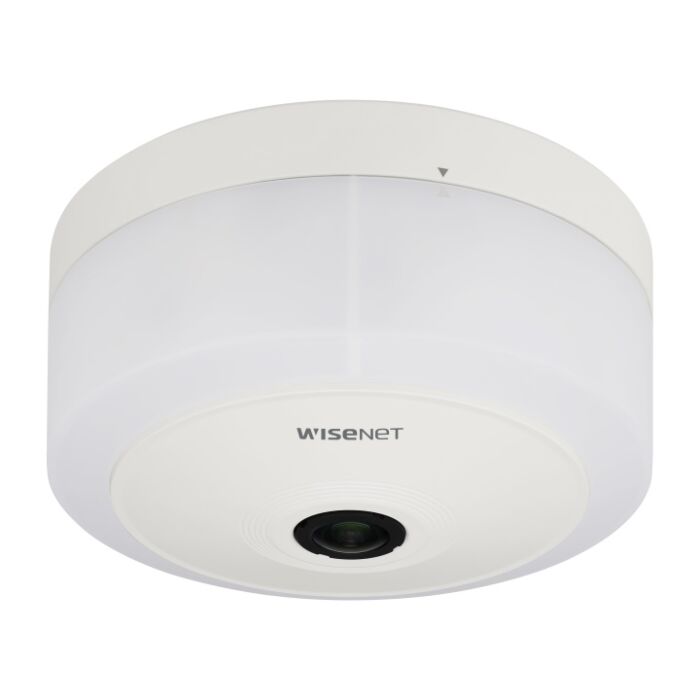

Wisenet TNF-9010 12MP Sensor Fisheye Parking Guidance Camera
SKU: TNF-9010
Out of stock
Key Features:
- Up to 30fps at 3008 x 3008 resolution
- Stereographic type lens enhances images on the edges
- 360° monitoring with onboard dewarping
- AI-based parking detection identifies up to 16 lots
- Various LED colors & single/split mode
- Central/side raceway installations
- Defocus/audio detection and tampering
- Integrated to emergency alerts with alarm & audio I/O
- Simultaneous streaming of up to five channels offers 1 overview and 4 single views
- An RJ-45 port facilitates the camera’s connection to a cable raceway
- ‘Direct Point’ enables the vehicle detection area within each of the camera channel’s field of view to be precisely defined
- Digital PTZ (DPTZ) functionality allows operators to precisely set the camera’s field of view
- Supported by Wisenet Wave, Milestone, and Genetec video management software platforms
This product can be powered by 12V DC or PoE.
We recommend using PoE.
Please note: this product does not come with a power supply.
Wisenet TNF-9010 User Manual
Wisenet TNF-9010 Quick Guide
Wisenet TNF-9010 Online Help
Wisenet T Series Brochure
Wisenet Quick Guide
Hanwha Solutions Brochure
Hanwha Techwin Product Portfolio
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Please contact us before purchasing for an accurate lead time.
Useful Wisenet Tools
- Wisenet Viewer
- Wisenet WAVE
- Wisenet Device Manager
Details
The Wisenet TNF-9010 is a 360° parking guidance camera that features built-in AI-based vehicle detection and is able to capture 12-megapixel images. This product has been designed for use in multi-story/underground car parks to help aid drivers with finding an available parking space.
Hanwha's main objective when creating this camera was to maximise the revenue for car park operators, they have achieved this as one TNF-9010 is able to monitor and analyse up to 16 parking spaces to determine if they are occupied or available. The device is quick and easy to install and has significantly lower maintenance costs compared to solutions that require multiple cameras to cover the same area.
The TNF-9010 has built-in LEDs which provide real-time visual information on where drivers can find available parking spaces. These LEDs can be configured to display up to 7 different colours to stipulate several different categories of available spaces, including, electric car spaces, disabled parking spaces, parent and children spaces, and spaces reserved for company employees or visitors.
As well as having parking guidance capabilities the Wisenet TNF-9010 is able to deter and detect anti-social criminal activity as it can monitor larger areas without blind spots thanks to the 360° lens. The presence of this camera can also make drivers feel safe about leaving their car unattended as well as feeling safe themselves walking in the car park. Images captured by the camera are enhanced at the edges with the help of a stereographic lens and the onboard dewarping processing ensures that when the device is in quad mode there is no digital distortion of the image.
The camera can broadcast alarms through connected speakers when integrated with emergency alerts technology. Control room operators are able to easily access the recorded video from the triggered alarm and then verify what has happened/is happening.
Equipped with Hanwha Techwin's most powerful chipset yet, Wisenet7, which helps aid the camera with capturing clear, sharp images in a wide range of lighting conditions with the help of advanced noise reduction and WDR technology. The chipset is also able to ensure that the TNF-9010 firmware is protected from hackers.

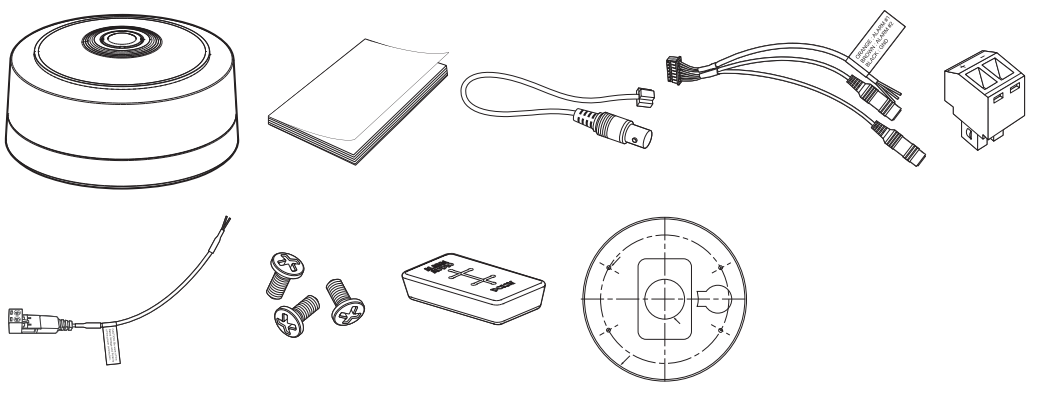

Pack Contents:
- TNF-9010 x 1
- Cable for testing monitor x 1
- Template x 1
- Audio/alarm cable x 1
- Power terminal block x 1
- Power cable x 1
- Machine screws x 3
- Connector cover x 1
