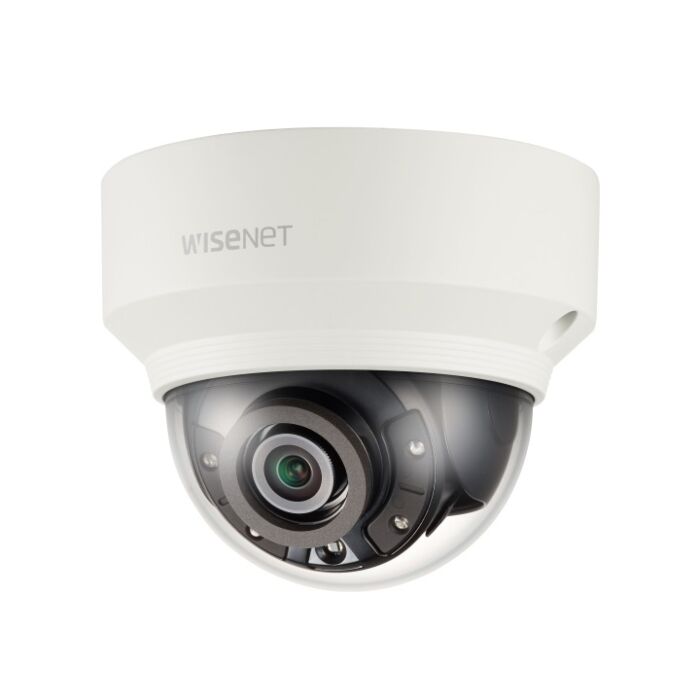

Wisenet XND-8020R 5 Megapixel Network IR Dome Camera

Contact Us for Stock Levels
£393.60 £328.00

The Wisenet XND-8020R is a 5 megapixel network dome camera that is part of the Wisenet X series of cameras with improved features such as; WiseStream II support, lens distortion correction, loitering and directional detection.

- XND-8020R = 3.7mm lens - XND-8030R = 4.6mm lens - XND-8040R = 7mm lens

This product can be powered by either PoE or a 12V DC PSU, we usually recommend PoE for ease of installation.

Please note: this product does not come with a power supply.

Wisenet X Series User Manual Wisenet X Series Brochure Wisenet Quick Guide Wisenet Product Line Up

This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager

- Max 5 megapixel resolution - Built-in fixed lens - Max 25fps - H.265, H.264, MJPEG codec - Day and night - WDR - Loitering, directional detection, fog detection, audio detection - Motion detection - SD/SDHC/SDXC memory slot - Hallway viw, WiseStream II support - IR viewable length 30m - LDC support

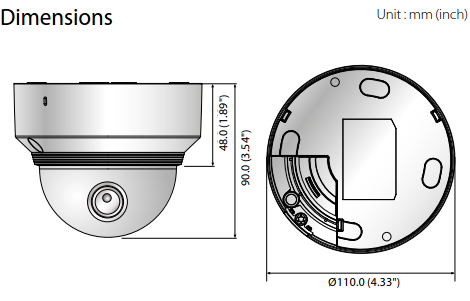

XND-80x0R Dimensions

QND-6010R - Horizontal field of view: 97.5° QND-6020R - Horizontal field of view: 77.9° QND-6030R - Horizontal field of view: 50.7°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Indoor / Outdoor Indoors or Outdoors
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2560 X 1920
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts 12V DC or PoE
Lens Mount board-in type
Aspect ratio N/A
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
IR Range Up to 30m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 9W
Warranty 2 Years
Launch Date January 2017
Focal Length 3.7mm
Audio/Alarm I/O Audio/Alarm I/O
Wireless Wireless
Frames per Second 8.3 fps
Resolution 720p
Colour White
Built-in PIR No Built-in PIR
