Wisenet XNF-9010RVM 12MP IR Fisheye Camera - M12 Connector

Contact Us for Stock Levels
SKU
XNF-9010RVM
£812.40 £677.00

Key Features:

- 1/2.3" 12MP CMOS

- 1.08mm fixed focal lens

- Stereo graphic type lens, enhanced resolution for the peripheral regions

- Fisheye, Single panorama, Double panorama, Quad view

- On board dewapring, Digital PTZ

- Extreme WDR (120dB)

- H.265, H.264, MJPEG codec supported, WiseStream II support

- Wise IR, IR viewable length 10m

- Plugin support, selectable I/O port

- Advanced Video Analytics, Business Intelligence: Heatmap, People Counting, Queue Management

- IP66/IK10/NEMA4X


This product is not available from UK stock, in which case it will take 7~10 working days to fetch it from their European warehouse.


Wisenet XNF-9010RVM User Manual Wisenet XNF-9010RVM Quick Guide Wisenet Product Line Up


Product Datasheets

Wisenet XNF-9010RVM 12MP IR Fisheye Camera - M12 Connector Datasheet (0.59MB)


XNF-9010RV Features


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager

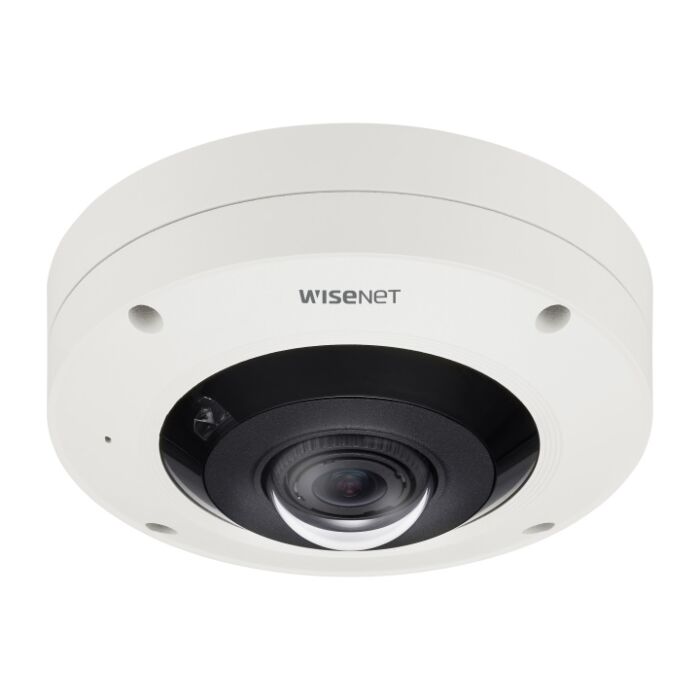

The Wisenet XNF-9010RVM is a 12-megapixel fisheye camera equipped with the Wisenet 7 chipset providing users with industry-leading cybersecurity features and cutting edge image processing technology.

Wisenet 7 Chipset


The XNF-9010RV can be used for both indoor and outdoor applications with its IP66 weather-resistant and IK10 vandal-resistant housing, protecting the camera against both harsh outdoor weather conditions and vandal attempts. As well as this, the camera features a 10m IR range, ensuring excellent quality images around the clock.

Featuring a choice of viewing modes including single panorama, double panorama, and quad views, users can select the view that best suits their environment. Digital PTZ allows you to electronically pan, tilt and zoom in on specific areas for a more detailed view, all whilst continuing to record the whole 360° view.

With an M12 connector, this camera is able to withstand vibrations and is EN50155 certified so is ideal for use on buses, trains, lorries, and other forms of transport.



XNF-9010RV Dimensions

XNF-9010RV

Specs
Image chip size 1/2.3"
Image chip type CMOS
Image Compression H.265,H.264,MJPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome Colour/Mono switching
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution N/A
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts 12V DC or PoE
Lens Mount fixed focus
Viewing Angle 187° Horizontal Field of View
Aspect ratio N/A
Megapixels 12 MP
Supplied with lens Yes
IR Range Up to 10m
Max. Images per second 30
PSU included No
ONVIF Compatible Yes
Power Consumption max. 12.95W
Warranty 3 Years
Launch Date Autumn 2020
