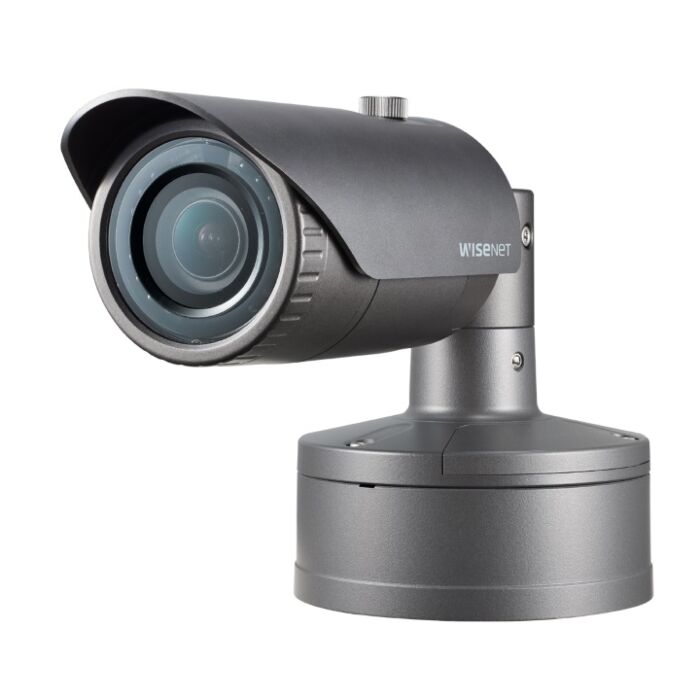

Wisenet XNO-8020R/XNO-8030R/XNO-8040R | 5 Megapixel IR Bullet Camera

Availability: Contact Us for Stock Levels

£480.73 Incl VAT Excl VAT. £400.61

Samsung/Wisenet XNO-80x0R

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

* Required Fields

£480.73 Incl VAT Excl VAT. £400.61

Quick Overview

The Wisenet XNO-80x0R is a 2 megapixel network IR bullet camera that is part of the Wisenet X series of cameras with improved features such as; people counting, queue management, loitering and directional detection.

- XNO-8020R = 3.7mm lens
- XNO-8030R = 4.6mm lens
- XNO-8040R = 7mm lens

XRN-1610S banner
Click on the firmware button on the left for a link to the Wisenet website where you can find the latest firmware under the software tab.

This product may not be immediately available from UK stock, in which case there will be a 7-10 day lead time to fetch from their European warehouse.

Accessory ChartUser ManualH.265 BrochureX Series Brochure

Product Datasheets

Wisenet XNO-8020R/XNO-8030R/XNO-8040R | 5 Megapixel IR Bullet Camera Datasheet (1.08MB)

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager


Frequently bought together

+
+

Price for all selected :

£522.73Incl VAT

Excl VAT. £ 435.61

  1.    This itemWisenet XNO-8020R/XNO-8030R/XNO-8040R | 5 Megapixel IR Bullet Camera
  2.    Level One POI-2002 Single Port POE Injector
  3.    HIKV12VDC 12V DC PSU for Hikvision Cameras

Key Features

- Max 5 megapixel resolution
- Built-in fixed lens
- Max 30fps
- H.265, H.264 and MJPEG codec support
- Day and night
- Loitering, directional detection, fog detection
- Motion detection, heatmap, people counting
- SD/SDHC/SDXC memory slot
- Hallway view
- IR viewable length 30m
- IP66/IP67
- LDC support

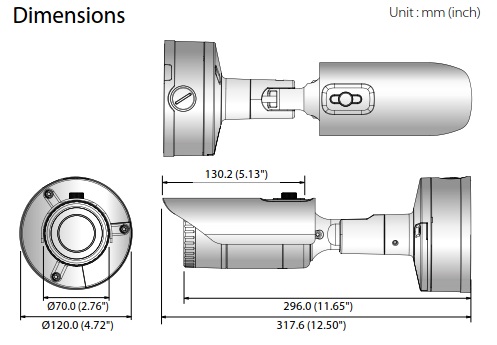

XNO-80x0R Dimensions


XNO-8020R - Horizontal field of view: 97.5°
XNO-8030R - Horizontal field of view: 77.9°
XNO-8040R - Horizontal field of view: 50.7°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Additional Information

Weight 1220.0000
Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio G.711/G.726
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2560 X 1920
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts 12V DC or PoE
Lens Mount board-in type
Aspect ratio 16:9
Megapixels 5 MP
Supplied with lens Yes
ONVIF Compatible Yes
Power Consumption max. 10.3W
Warranty 3 Years
Launch Date January 2017
