744.00

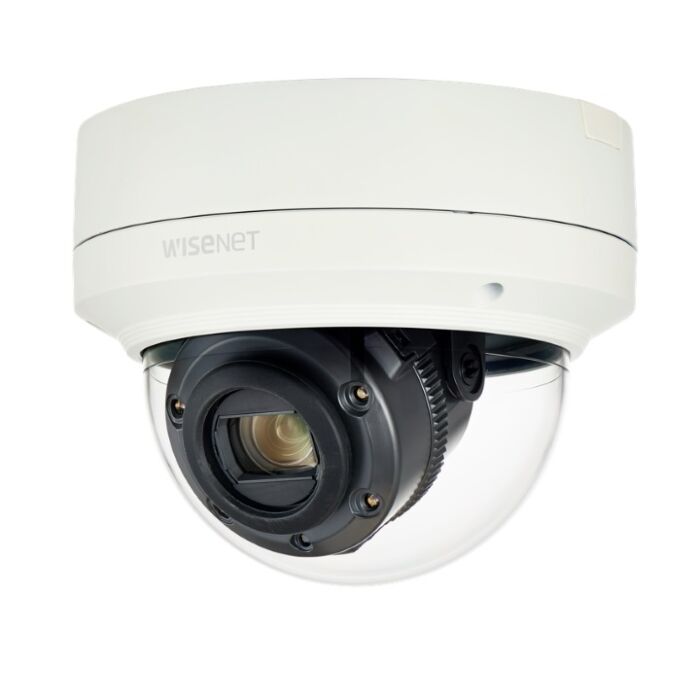

Wisenet XNV-6120R 2MP Vandal Resistant Dome Camera

Availability: Contact Us for Stock Levels

£744.00 Incl VAT Excl VAT. £620.00

Samsung/Wisenet XNV-6120R

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The XNV-6120R is a 2MP vandal resistant dome camera from Wisenet with impressive IR LEDs with a max distance of 70m. This camera provides excellent images day and night with the help of wide dynamic range.

Security is improved even further with the use of smart features such as motion detection and loitering detection. The XNV-6120R is a great choice for outdoor applications with strong weatherproof and vandal proof housing along with a varifocal lens.
XRN-1610S banner
Click on the firmware button on the left for a link to the Wisenet website where you can find the latest firmware under the software tab.

This product may not be immediately available from UK stock, in which case there will be a 7 day lead time to fetch from their European warehouse.

Accessory ChartH.265 BrochureX Series Brochure

Product Datasheets

Wisenet XNV-6120R 2MP Vandal Resistant Dome Camera Datasheet (0.35MB)

Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager


Key Features

- 2MP resolution
- 1920 x 1080 resolution
- 5.2mm ~ 62.4mm
- 12X Optical zoom
- Max 60fps
- H.265, H.264, MJPEG codec supported
- Day & Night IR cut filter
- 150dB wide dynamic range
- Defog
- Loitering detection
- Directional detection
- Fog detection
- Audio detection
- Tampering detection
- Motion detection
- SD/SDHC/SDXC memory card slots (Max 512GB)
- Hallway view
- WisestreamII support
- 70m IR LEDs
- IP67
- NEMA 4X
- IK10
- Lens distortion correction
- PoE and 12VDC
- Bi-directional audio support

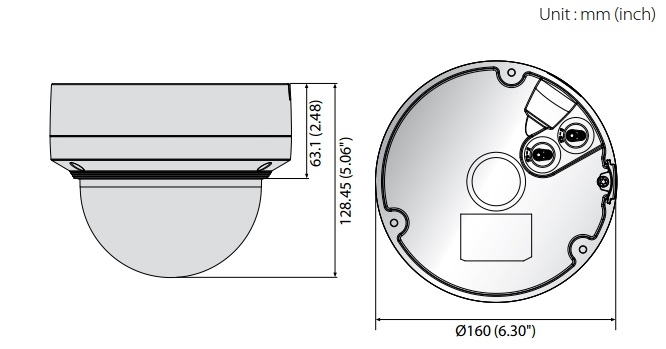

XNV-6120R dimensions


5.2mm - 62.4mm: Horizontal field of view: 54.58° to 5.3°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Additional Information

Weight 995.0000
Image chip size 1/2.8"
Image chip type CMOS
Image Compression H.265/H.264 (MPEG-4 part 10/AVC) Main/Baseline/High, MJPEG
Audio Bi-directional speak/listen
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount board-in type
Lens Focal Length 5.2~62.4mm
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 70m
Max. Images per second 60
ONVIF Compatible Yes
Power Consumption max 12.9W
Warranty 1 Year
Launch Date Spring 2017
