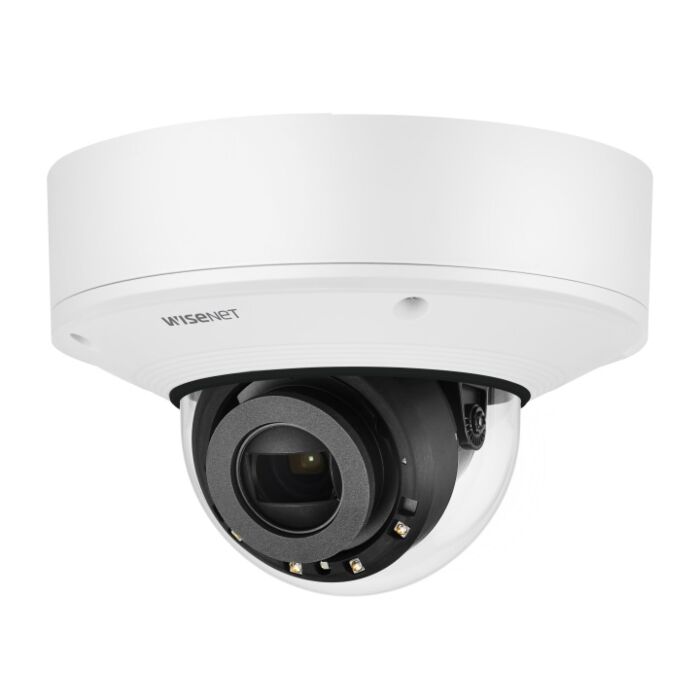

Wisenet XNV-8081RE 5MP Network PoE Extender Vandal Dome Camera

Contact Us for Stock Levels
SKU
XNV8081RE
£936.00 £780.00

Key Features:

- Max. 5MP resolution

- PoE extender (Main cam, extension cam)

- PoE out: Max. 12.95W @ 80m

- 3.9 ~ 9.4mm (2.4x) motorised varifocal

- 0.07 Lux @ F1.3 (Colour), 0 Lux (B/W, IR LED on)

- IR viewable length 50m

- Day and Night (ICR), WDR (120dB)

- Hallway View, WiseStreamII, support

- Video and audio analytics, Audio playback

- Business Intelligence (People counting, Queue management, Heatmap)

- DIS and shock detection with built-in gyro sensor

- Modular structure, PoE+ in/PoE out

- IP66/IP67/IP6K9K, IK10+, NEMA4X


X Series Features


This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.

Wisenet User Manual Wisenet Quick Guide Wisenet X Series Brochure Wisenet Product Line Up


Product Datasheets

Wisenet XNV-8081RE 5MP Network PoE Extender Vandal Dome Camera Datasheet (0.59MB)



This product is powered by PoE+. Please note: this product does not come with a power supply.


Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager



The Wisenet XNV-8081RE is a 5 megapixel power over ethernet outdoor vandal dome camera.

This solution has been designed for covering greater distances and is perfect for a two camera installation with one power source (PoE+). Compatible with all Wisenet cameras.

Users can utilise the power supply from the PoE entender for other devices such as Flood Lights and Motion Sensors.

This camera is part of the X Plus series of cameras and so benefits includes:

- quick and simple installation

- magnets locking sensor modules into dome housing

- prefigure IP network settings without the need to remove the camera module from the box.

Hanwha wanted to create a camera for those who may have a reduced security budget and so they created this range of Power over Ethernet Extender cameras as a cost-effective way to add a camera or another PoE enabled device to an existing system, users can also install a new two-camera video surveillance.

Along with being good value for end-users, the XNV-8081RE also provides great benefits for installers as the setup of the product is quick and easy. Designed to save end-users money and installers time, the cameras feature magnets that lock sensor modules into the dome housing and a water-resistant gland for the network cable to be inserted with the aid of an RJ45 plastic push-through device. Installers and technicians are able to configure IP network settings from wherever without needing to remove the camera module from its packaging.

For retrofit applications where an additional camera is needed, system integrators need to simply substitute an existing Wisenet camera with a PoE Extender camera, and then re-install it at the new camera location, with both devices being able to share the same cable run.

The XNV-8081RE comes with a wide range of license-free specialist analytics such as directional detection, virtual line, enter/exit, appear/disappear and loitering detection. The camera also features an audio analysis function that is able to recognise critical sounds including explosions, screams and broken glass, then immediately generates an alert to enable emergency services to react quickly and effectively to an incident.

Specs
Image chip size 1/1.8"
Image chip type CMOS
Image Compression H.265, H.264 (Baseline/ Main/ High Profile), MJPEG
Indoor / Outdoor Outdoor
Ingress Protection IP69K
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 1920 X 1080
Min. low-light lux 0.07
Supply Volts POE only
Lens Mount DC auto iris
Lens Focal Length 3.9~9.4mm
Viewing Angle 92.1° ~ 38.7° Horizontal Field of View
Aspect ratio 16:9
Megapixels 5 MP
Supplied with lens Yes
Accepts auto-iris lens DC Iris
IR Range Up to 50m
Max. Images per second 30
PSU included No
ONVIF Compatible Yes
Power Consumption max. 25.5W
Warranty 3 Years
Launch Date Summer 2020
