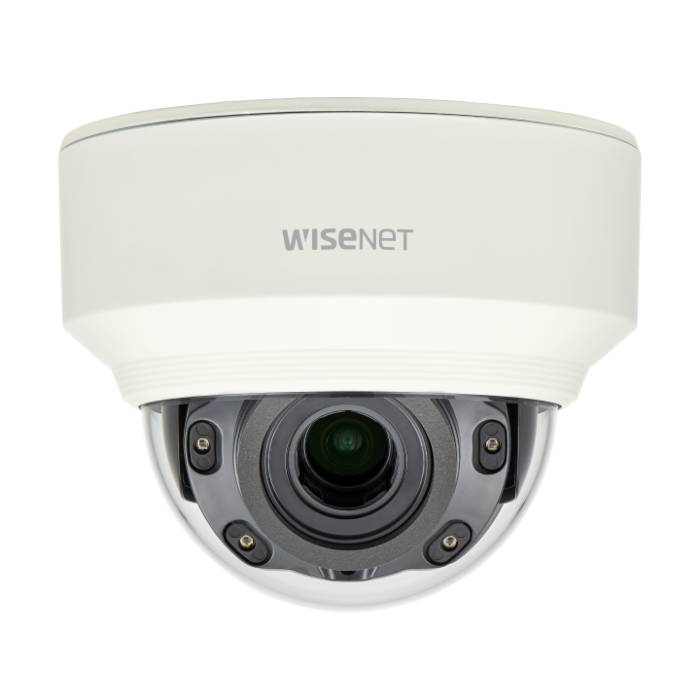

Wisenet XNV-L6080R 2MP Vandal Resistant IR Dome Camera

Availability: Contact Us for Stock Levels

£486.00 Incl VAT Excl VAT. £405.00

Hanwha Techwin XNV-L6080R

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Wisenet XNV-L6080R is a 2 megapixel vandal resistant dome camera with an IR viewable length of up to 30m.

Equipped with a 3.2~10mm varifocal lens, this camera provides users with flexibility in regards to the the area of coverage and so can select the exact focal length required for their application. Covering an area from 109° ~ 33.2°, this can be used for wide or narrow area of coverage in both indoor and outdoor applications.

The XNV-L6080R is part of the Wisenet X plus series which means that it is made for easy installation, reducing the amount of time spent installing, setting up and maintenance adjustments. This is due to their 'drill, fix, clip, cover' installation method.


This product is powered by PoE. Please note: this product does not come with a power supply.




Wisenet X Series Brochure
Wisenet Quick Guide
Wisenet Product Line Up

Product Datasheets

Wisenet XNV-L6080R 2MP Vandal Resistant IR Dome Camera Datasheet (0.36MB)


This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.



Find use-IP on Youtube   Find out more at the use-IP forum    Find the correct firmware for your camera


Useful Wisenet Tools

- SmartViewer
- Wisenet WAVE
- Wisenet Device Manager


Key Features

- Max. 2 megapixel resolution
- 3.2 ~ 10mm (3.1x) motorised varifocal lens
- Max. 60fps @ all resolutions
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day and Night (ICR), WDR (120dB), Defog
- Tampering, Defocus detection
- Motion detection, Handover
- SD/SDHC/SDXC memory slot
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66, IK10, PoE support




3.2mm - 10mm: Horizontal field of view: 109° to 33.2°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.



Additional Information

Weight 940.0000
Image chip size 1/2.8"
Image chip type CMOS
Image Compression H.265/H.264 (MPEG-4 part 10/AVC) Main/Baseline/High, MJPEG
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts POE only
Lens Mount board-in type
Lens Focal Length 3.2~10mm
Viewing Angle 109° ~ 33.2° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens DC Iris
IR Range Up to 30m
Max. Images per second 60
ONVIF Compatible Yes
Power Consumption max. 11W
Warranty 3 Years
Launch Date March 2018
