Veracity VHW-HWPS-B4 Highwire PowerStar Base 4 Ethernet and PoE over coax
SKU: VHW-HWPS-B4
Contact Us for Stock Levels
Key Features:
- Four-Channel Ethernet and POE Over Coax Unit
- Re-use existing coax currently used for analogue cameras
- Replace typical 4 channel video encoders with a full IP system
- Reliability power new IP cameras with PoE over coax
- Fully automatic installation - no setup of Ethernet over Coax adaptor required
- Simple fast, cost-effective installation for less time on site
- Gigabit Ethernet network uplink and optional SFP port
- Compatible with HIGHWIRE Powerstar Camera Ethernet over Coax adaptors
- LED status indicators
- Dimensions (including BNC connectors): 173mm(L) x 110mm(W) x 22mm(H)
Please note that the VHW-HWPS-B4 may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Veracity VHW-HWPS-B4 Quick Start Guide
Veracity Product Guide
Details
The Veracity VHW-HWPS-B4 is a 4 channel Ethernet and PoE over coax unit designed for video encoder replacement. This unit replaces existing analogue video encoders and enables the easy replacement of analogue cameras with high-resolution IP cameras.
A true Plug-and-Play solution for connecting and powering IP cameras over legacy coaxial cabling. The HIGHWIRE Powerstar product family offers reliable power delivery and long-range extension even over low-grade coaxial cable and now enables direct replacement of existing analogue video encoders to allow cost-effective upgrade to IP cameras.

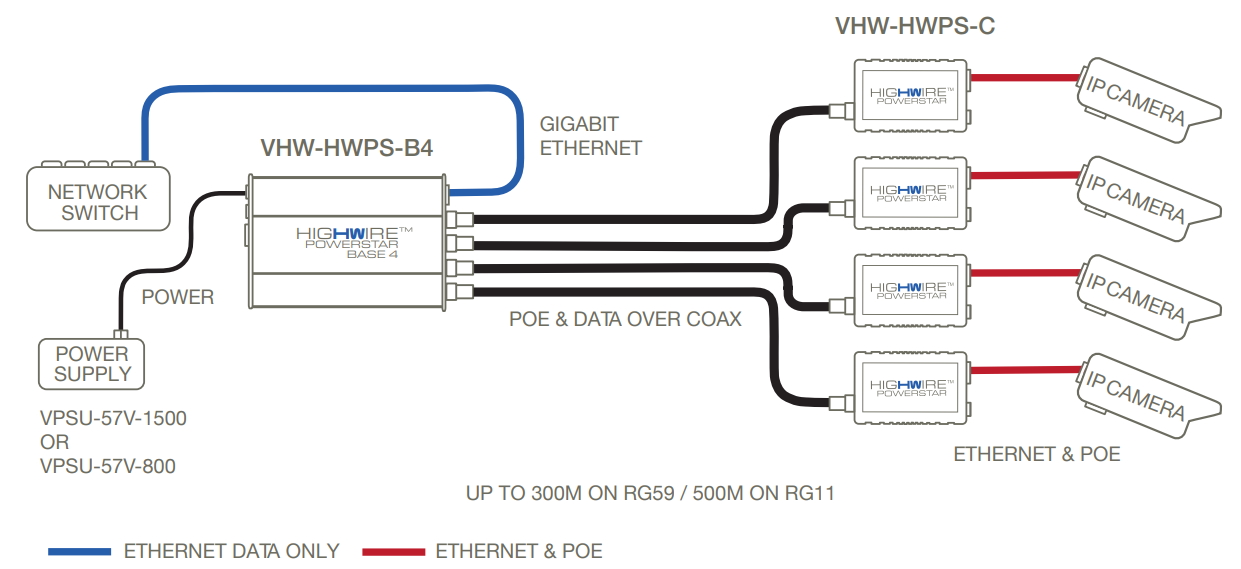

Ethernet and Power over Coax Installation Diagram
HIGHWIRE Powerstar Base 4 delivers Ethernet and POE over legacy coax, for maximum reliability and with no rewiring.
In the diagram above, the legacy analogue encoder is replaced by a HIGHWIRE Base 4 unit and the coax cables are connected to four separate single-channel HIGHWIRE Powerstar Camera adapters. Note that Duo and Quad camera adapters are also available. The low resolution, locally powered analogue cameras are replaced by high-resolution POE powered IP cameras. A Gigabit Ethernet uplink connection on the HIGHWIRE Base 4 ensures there is no network bandwidth limit on available image quality and resolution.
As soon as the power is supplied to the Base 4 unit, a connection is established automatically with the Camera Units, the IP cameras are powered up and the camera IP address will be available on the network. The HIGHWIRE units require no configuration, do not require IP address settings and are completely transparent to the network.
There are two PSU options available for the HIGHWIRE Powerstar Base 4 unit. They are 57V DC to provide the maximum power and distance possible within the POE standard (IEEE 802.8af and 802.3at). The options provide 40W or 80W. The 40W unit provides 10W per channel over the coax on the Base 4 unit, whihc is sufficient for most static IP Cameras. The 80W provides up to 20W per channel on the Base 4 unit.

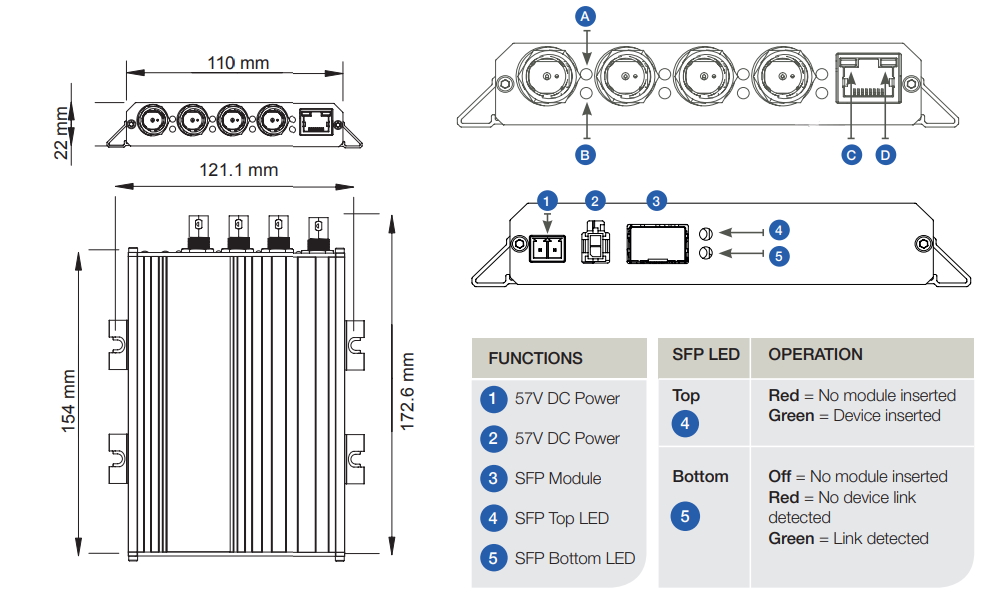

Veracity VHW-HWPS-B4 HIGHWIRE PowerStar Base 4 Dimensions, Connections and LEDs
| Location | POE LED | Function | Green | Orange | Red |
| A | Coax Link Activity | Coax data connection |
Blink = No link to camera On = 100Base-TX to camera Flash = 100Base-TX Activity |
Blink = 10Base-T link to camera Flash = 10Base-T activity |
On = Data rate <100% Cable distance at limit |
| B | Coax POE (power) | POE over coax status | On = Device detected |
On = Approaching power limit Flash = Short circuit. Check for cable faults or incompatible equipment |
On = Power limit reached Flash = POE discontinued due to overload |
| Ethernet LED | Function |
| C - RJ45 Yellow |
On = Link Blink = Activity |
| D - RJ45 Green | On = Power On |
