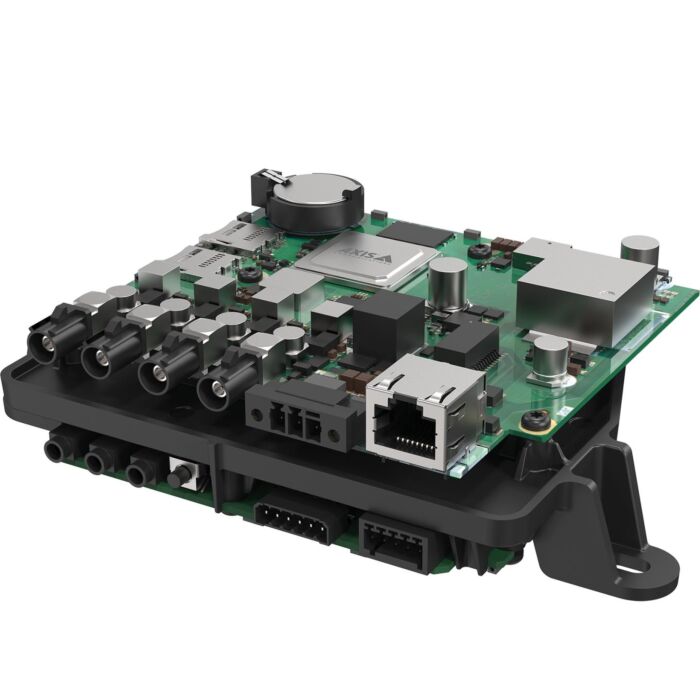

Axis F9104-B 4-Channel Barebone Main Unit 02192-031
SKU: 02192-031~EOL
Out of stock
The F9104-B is now End of Life.
We recommend the F9104-B Mk II as a suitable replacement.
Key Features:
- 2nd generation
- 4-channel modular barebone unit
- Compact barebone main unit
- UL recognised component
- Multiple sensor and cable options
-1080p at 30fps on 4-channels
- Easy integration and installation
Please note: this product is only compatible with 2nd generation sensors and cables. (Cables and sensors are sold separately)
Please see the frequently bought-together section for compatible units.
This product is powered by PoE.
Please note: this product does not come with a power supply.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F9104-B barebone main unit has been designed for use with 2nd generation sensors and cables from the Axis F series. The unit is ideal for building customised video solutions, this UL recognised component is designed for integration into a UL-certified end product.
The F9104-B supports up to four sensor units and requires only one video management software (VMS) license. With four HDTV 1080p video streams at 30fps on all channels, this unit delivers high-quality video even in challenging and low-light conditions. Forensic WDR enables the device to provide clarity in scenes where there are both light and dark areas and Axis Lightfinder captures sharp, colour images even in low light.
Ideal for use in emergency vehicles and buses, the F9104-B includes an ignition control functionality with controlled shutdown to ensure that the vehicle's battery is not drained. As well as this the unit is great for building your own customised solution. It is ideal for customers who want to integrate into other devices such as ATMs and ticket machines.
Not only this but the device includes built-in cybersecurity features such as Axis Edge Vault to protect users' Axis device ID and to simplify the authorisation of Axis devices on your network.
| F9104-B | |
| System on Chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 2 x 1024MB RAM, 512MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 1920 x 1080 HDTV 1080p |
| Frame Rate | Up to 30fps in 1080p (WDR Mode) Up to 60fps in 720p |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image Setting | Contrast, brightness, sharpness, Forensic WDR, fixed orientation aid, white balance, tone mapping, exposure control, exposure zones, compression, rotation: 0°, 90°, 180°, 270°, mirroring, polygon privacy mask, control queue |
| Network | |
| Security | IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS)a network access control, multi-level user, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, RTCP, DHCP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G and ONVIF® Profile S, specification at onvif.org |
| Event Conditions | Device status, edge storage, scheduled event, video |
| Event Actions | Send images, publish MQTT, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips |
| Data Streaming | Event data |
| Analytics | |
| Applications | Included: AXIS Video Motion Detection Supported: AXIS People Counter, tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| General | |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 10-48V DC, typical 9W, max 25.5W |
| Connectors | RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE 4x FAKRA for sensor units 3-pin terminal block for 10-48 V DC input |
| Approvals | Safety: UL recognized component, IS 13252 Network: NIST SP500-267 |
Included Accessories:
- Installation guide
- Windows Decoder 1-user license
- Connector kit
