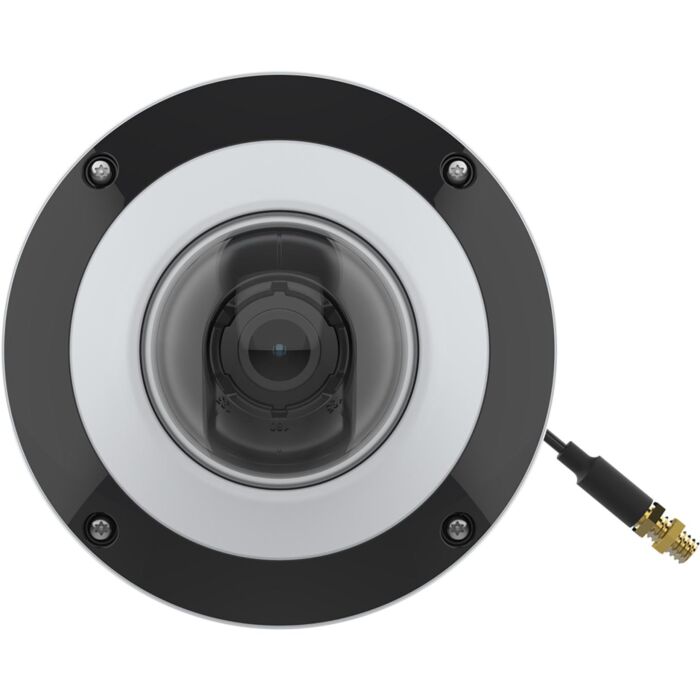

Axis F4105-LRE Dome Sensor 02364-001
SKU: 02364-001
Contact Us for Stock Levels
Key Features:
- 2nd generation
- Up to 60fps at 1080p and up to 180fps at 720p
- 2.8mm focal length
- 111° horizontal field of view
- Rugged sensor unit
- IP6K9K weather-resistant rating
- Exchangeable M12 lenses
Please note: this product is only compatible with 2nd generation main units and cables.
Please see the frequently bought-together section for compatible units.
Please note: the F4105-LRE is just the sensor and the main unit and cable needs to be purchased separately.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F4105-RE has been designed for use with 2nd generation main units and cables with SMA-FAKRA connectors to withstand vibration and ensure a ruggedised installation.
The F4105-RE has been designed for both indoor and outdoor applications and can operate in temperatures from -30°C ~ 55°C. The unit provides flexible installation and supports a wide range of exchangeable M12 lens options. Built to withstand shock and vibrations the F4104-RE is ideal for use in environments with high vibrations. As well as this the lens is IP6K9K rated making it resistant to hot pressure water, enabling it to be used in food processing, hospitals, and other sterile environments.
Designed for discreet surveillance and based on a divided network camera concept the device ensures maximum flexibility and lowers installation and configuration costs when compared to a standard dome camera.
The F4105-RE is able to deliver high-quality video even in challenging and low-light conditions thanks to features such as ForensicWDR. ForensicWDR provides clarity in scenes where there are both dark and light areas. With a 111° horizontal field of view, the unit is ideal when a wide area of coverage is needed. Not only this but the unit features IR illumination allowing for surveillance in complete darkness without the need for extra lighting.
| F2115-RE | |
| Image Sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | 2.8mm, F2.0 For 1080p: 111° horizontal field of view For 720p: 70° horizontal field of view |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Colour: 0.3lux at 50 IRE, F2.0 0 Lux with IR illumination on |
| Shutter Speed | With AXIS F9111: 1080p, 25/30 fps: 1/20000 s to 1.5 s 1080p, 50/60 fps: 1/27000 s to 1 s HDTV 720p, 175/180 fps: 1/32500 s to 0.5 s With AXIS F9104-B, F9114 and F9114-B: 1080p, 25/30 fps: 1/20000 s to 1.5 s HDTV 720p, 50/60 fps: 1/32500 s to 0.5 s |
| Camera Angle Adjustment | Pan: ±180° Tilt: 120° Rotation: ±90° |
| Casing | IK10-, IP66-, IP67-, and IP6K9K-rated plastic casing Polycarbonate clear dome Colour: white NCS S 1002-B |
| Power | Typical 3.7 W, max 5.0 W IR illumination on: typical 2.68 W, max 4.16 W |
| Operating Conditions | With IR illumination off -30 °C to 55 °C (-22 °F to 131 °F) With IR illumination on -30 °C to 45 °C (-22 °F to 113 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C (-40°F) Humidity 10–100% RH (condensing) |
| Dimensions | Depth: 83 mm (3.3 in) ø 112 mm (4.4 in) 54.4 mm (2.14 in) Cable length: 100 mm (3.93 in) |
| Included Accessories | Installation guide Lens tool |
| Required Hardware | AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable, AXIS F91 Main Unit (Must be purchased separately) |
