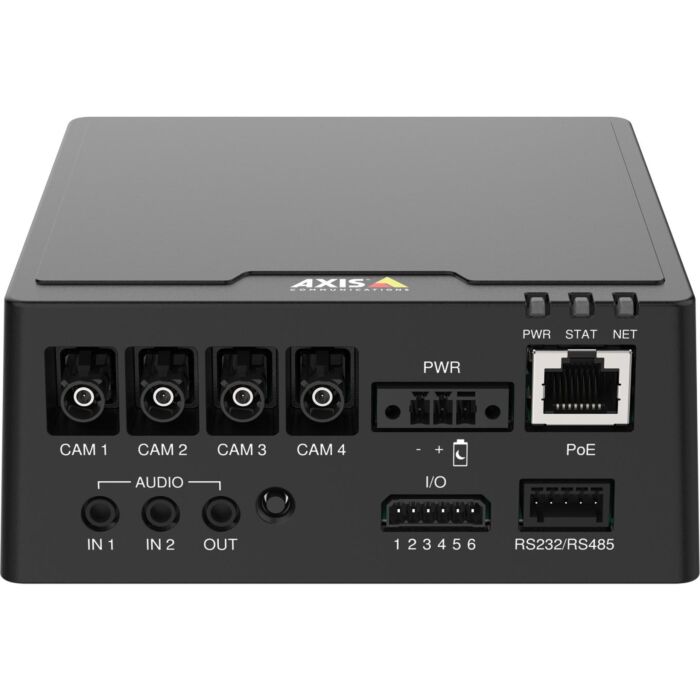

Axis F9114 4-Channel Main Unit 01991-001
SKU: 01991-001~EOL
Out of stock
The F9114 is now End of Life.
We recommend the F9114-R Mk II as a suitable replacement.
Key Features:
- 2nd generation
- 4-channel unit
- Multiple sensor and cable options
- 1080p at 30fps on all 4-channels
- Rugged design and connectors
- Zipstream
- Lightfinder
- ForensicWDR
- Easy integration and installation
Please note: this product is only compatible with 2nd generation sensors and cables. (Must be purchased separately)
Please see the frequently bought-together section for compatible units.
This product can be powered by 10-48V DC or PoE. Please note: this product does not come with a power supply.
This product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Details
The Axis F9114 4-channel main unit has been designed for use with 2nd generation sensors and cables from the Axis F series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedised installation.
The F9114 supports four HDTV 1080p video streamsat 30fps or 720p video strems at up to 60fps. Axis Zipstream with support for H.264 and H.265 enables the device to reduce storage and bandwidth requirements without compromising on the image quality. Forensic WDR enables the device to provide clarity in scenes where there are both light and dark areas and Axis Lightfinder captures sharp, colour images even in low light.
Ideal for use in emergency vehicles and buses, the F9114 includes an ignition control functionality with controlled shutdown to ensure that the vehicle's battery is not drained. As well as this the unit supports two-way audio and I/O making it possible to connect a digital or analogue microphone enabling users to listen in and trigger audio warnings.
Not only this but the device includes built-in cybersecurity features such as Axis Edge Vault to protect users' Axis device ID and to simplify the authorisation of Axis devices on your network. The F9114 is based on a divided network camera concept and so enables maximum flexibility with both sensor unit and cable type and lengths are chosen based on the individual user needs.
| F9111 | |
| System on Chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 2 x 1024MB RAM, 512MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 1920 x 1080 HDTV 1080p |
| Frame Rate | Up to 30fps in 1080p (WDR Mode) Up to 60fps in 720p |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode Video streaming indicator |
| Image Setting | CContrast, brightness, sharpness, Forensic WDR, fixed orientation aid, white balance, tone mapping, exposure control, exposure zones, compression, rotation: 0°, 90°, 180°, 270°, mirroring, polygon privacy mask, control queue |
| Audio | |
| Audio Streaming | Two-way, full duplex |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
| Audio Input/Output | 2x external microphone input or line input, 1x line output, ring power, digital audio input |
| Network | |
| Security | IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS)a network access control, multi-level user, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, RTCP, DHCP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G and ONVIF® Profile S, specification at onvif.org |
| Event Conditions | Device status, digital audio, edge storage, I/O, PTZ, scheduled event, video MQTT subscribe |
| Event Actions | Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips |
| Data Streaming | Event data |
| Analytics | |
| Applications | Included: AXIS Video Motion Detection Supported: AXIS People Counter, tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| General | |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 10-48V DC, typical 11W, max 25.5W |
| Connectors | RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE 4x FAKRA for sensor units 6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA 3.5 mm mic/line in, 3.5 mm line out 5-pin terminal block RS232/RS485 3-pin terminal block for 10-48 V DC input |
| Approvals | EMC CISPR 24, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, EAC, ECE R10 rev.05 (E-mark) Safety IEC/EN/UL 62368-1, UN ECE R118, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP3X, IEC/EN 61373 Category 1 Class B, NEMA TS 2 (2.2.7-2.2.9) Network NIST SP500-267 |
Included Accessories:
- Installation guide
- Windows Decoder 1-user license
- Connector kit
