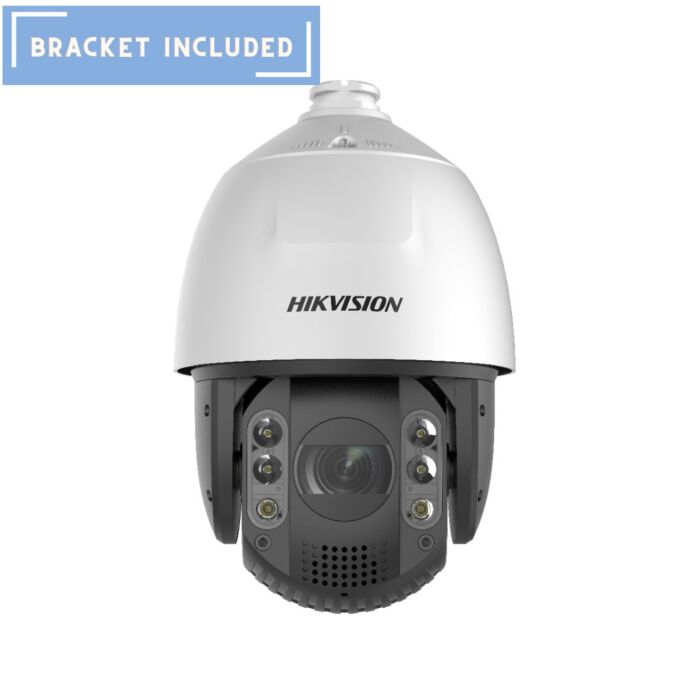

Hikvision DS-2DE7A432IW-AEB(T5) 4MP 32x Zoom IR Network Speed Dome Camera
SKU: DS-2DE7A432IW-AEB(T5)
In stock
Key Features:
- 4MP Speed Dome PTZ
- AcuSense Technology
- Audio And Visual Alarm
- 32x Optical Zoom, 16x Digital Zoom
- IR Range Up To 200m
- 120 dB WDR, Digital Defog, BLC, HLC, 3D DNR
- Powered By Darkfighter
- Face Capture Up To 5 Faces
- Built-In Memory Card Slot
- Audio and Alarm I/O
PLEASE NOTE: This product comes with the DS-1602ZJ Wall Mount Bracket included.
This product can be powered by 24V AC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Speed Dome Camera User Manual
Hikvision DS-2DE7A432IW-AEB(T5) Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be available for Next Working Day Delivery.
Please contact us before purchasing if you need this item urgently.
Useful Hikvision Tools
SADP Download
IE Tab Download
Hik-Connect
Details
The Hikvision DS-2DE7A432IW-AEB(T5) is a 4MP speed dome, PTZ network camera with 32x optical zoom and 16x digital zoom. With a varifocal lens ranging between 5.9mm - 188.8mm providing a horizontal field of view of 50.8°-2.6° it has been designed for use where high definition is required, for example, rivers, roads, railways, airports and large venues. With a var
Featuring AcuSense technology, a deep learning algorithm, the DS-2DE7A432IW-AEB(T5) can accurately classify Humans and/or Vehicles. This means that false alarms that are commonly caused by foliage, heavy winds/rain and small animals are greatly reduced therefore improving overall alarm effectiveness and efficiency.
When certain events have been triggered users can make use of the Audio and Visual alarm function. This consists of a flashing light to provide a visual alarm, intended to deter and bring attention to intruders and possible security threats. Then, the audio alarm feature can play siren style audio or warning alerts via the built-in speaker.
To provide a flexible security solution, the DS-2DE7A432IW-AEB(T5) features the following Smart Events.
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Existing Detection
- Unattended Baggage Detection
- Object Removal Detection
- Audio Exception Detection
The DS-2DE7A432IW-AEB(T5) features powerful built-in supplement IR lighting which can illuminate a scene for up to 200m in some environments. It also features Darkfighter technology to ensure that the low-light-level performance is high quality. Other image-enhancing features include BLC (Backlight Compensation) HLC (High Light Compensation), 3D DNR (Digital Noise Reduction) and 120dB WDR (Wide Dynamic Range).
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 2046.9m | 812.3m | 409.4m | 204.7m |
With an IP rating of IP66, the DS-2DE7A432IW-AEB(T5) is able to withstand water and dust ingress which makes it suitable for use outdoors. Also rated IK10, this PTZ is impact/vandal-resistant (excluding the glass window). Finally, it has TVS 6000V lightning protection, surge protection and voltage transient protection.
Finally to power the DS-2DE7A432IW-AEB(T5) users can use Hi-POE or 24 VAC mains power supply. We recommend powering via POE for general ease of installation. To do so, a suitable Hi-POE injector or switch will be required.

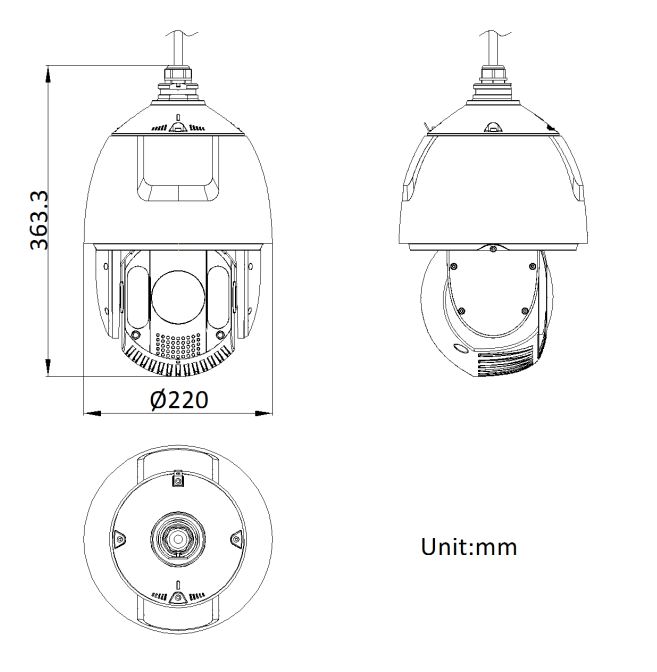

Dimensions
