Veracity LONGSPAN MAX VLS-LSM-B Base Device
SKU: VLS-LSM-B
Contact Us for Stock Levels
Key Features:
- Hi-POE Ethernet Extender
- Base Device (For Camera Device See VLS-LSM-C)
- LONGSPAN Enhanced with 90W POE Capability (802.3bt)
- Long Range Point-To-Point Ethernet Over Cat5e or Cat6 Cable
- Unrestricted 100Base-TX With POE At Over 820 Metres
- Can Deliver 60W at 200 metres, 40W at 350 Metres
- Ruggedised For High Performance Over A Wide Temperature Range
- Smart POE Power and Diagnostic Display For Reliable Installation
- Fully Automatic, Simple To Install and Maintenance-Free
- Dimensions:120mm (L) x 36mm (W) x 23mm (H)
Please note that the VLS-LSM-B may not be available for Next Working Day delivery. Please contact our sales team at [email protected] for stock inquiries.
Veracity LONGSPAN VLS-LSM-B Quick Guide
Veracity Product Guide
Details
The Veracity LONGSPAN Max base device delivers PoE for even the most power-hungry external IP PTZ cameras at considerable distances. It adds 90W POE power capability to the extremely successful LOGSPAN range of long-distance network extenders for Cat5e or Cat6 cable.

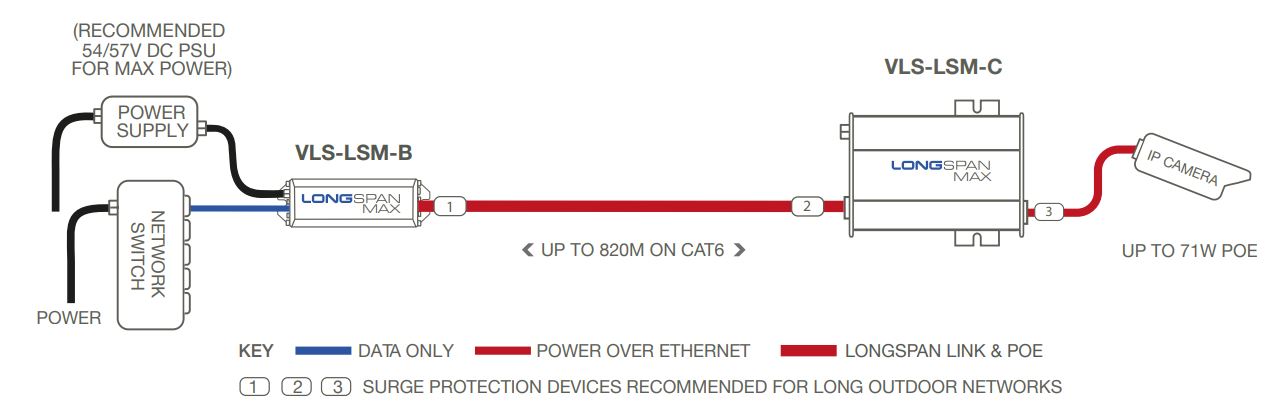

A LONGSPAN Max base device is used with a LONGSPAN Max camera device to achieve a link with higher PoE power. Please note that these items are sold separately. Please see the Veracity LONGSPAN MAX VLS-LSM-C Camera Device for more information.
Power levels can drop quickly with distance. For maximum power delivery to the IP camera, a local PSU may be used to power the LONGSPAN Max Camera Device, in which case, LONGSPAN Max Base Device could be replaced with a LONGSPAN Lite. LONGSPAN MAx Base Camera and Camera extenders deliver full bandwidth Ethernet up to 820 metres. The Base unit can output the maximum POE permitted by the 802.3bt standard.
This unit has been designed for installers with self-configure for the best performance every time they are connected. No user setup, no DIP switch settings and no system pairings are required. Veracity's SAFEVIEW smart LED display provides instant, visible confirmation of link status, power availability and useful diagnostic information, from each device at either end of the cable.
LONGSPAN devices have built-in surge protection, but for long external runs additional surge protection is strongly recommended.
