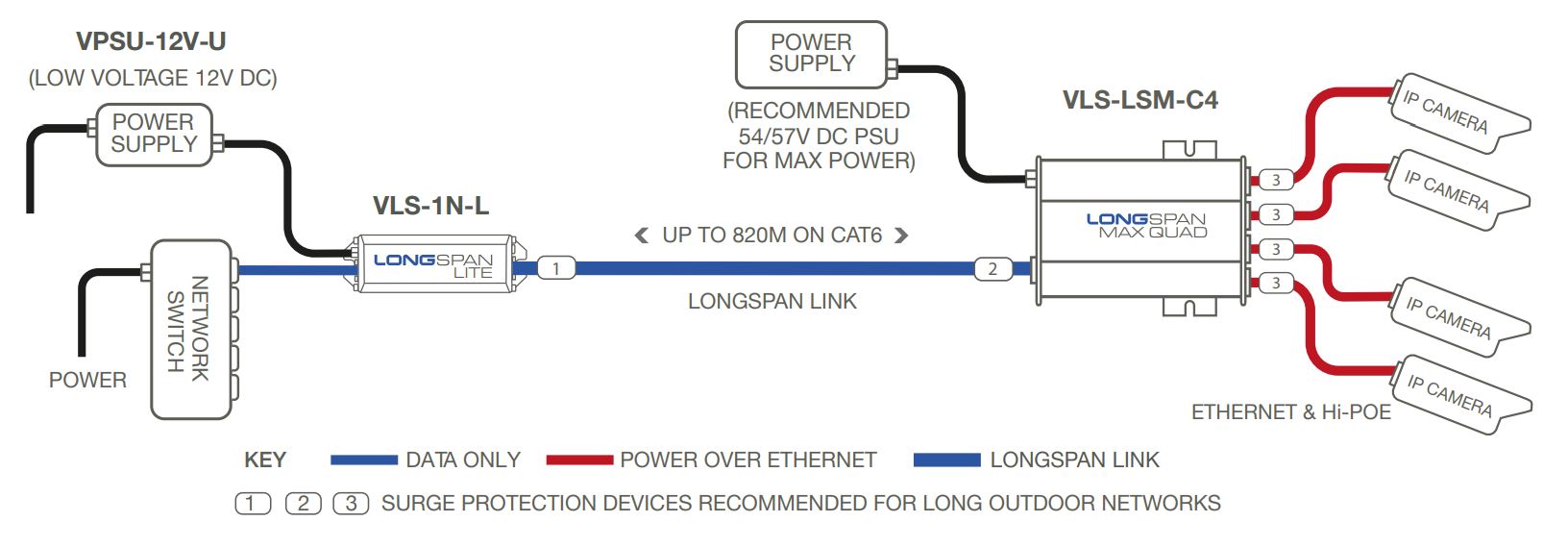

LONGSPAN Max Quad camera devices can be locally powered to deliver the maximum PoE to the IP camera or other types of PoE powered devices, irrespective of LONGSPAN link distance. This can be ideal for external IP PTZ cameras, In this configuration, the LONGSPAN link could be 820m and LONGSPAN Max Base would be replaced with LONGSPAN Lite as PoE transmission over the link is not required.


Find use-IP on Youtube   Find out more at the use-IP forum


408.00

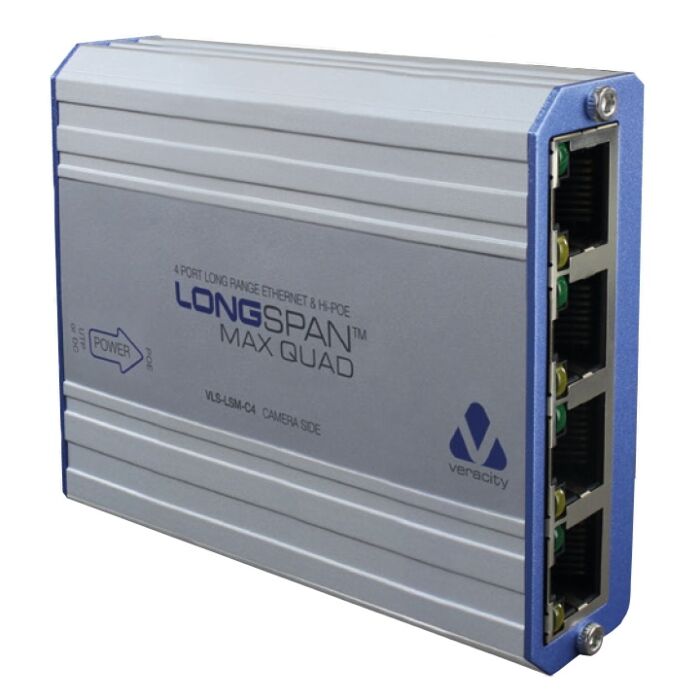

Veracity LONGSPAN MAX QUAD VLS-LSM-C4 Camera Device

Availability: Contact Us for Stock Levels

£408.00 Incl VAT Excl VAT. £340.00

Veracity VLS-LSM-C4

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview


The Veracity LONGSPAN Max Quad delivers PoE for even the most power hungry external IP PTZ cameras at considerable distances.

This product has been designed to connect IP cameras at ranges of up to 820m (with Cat6 cable), supporting the 200Mbps aggregate bandwidth required for full-duplex 100Base-TX Ethernet.

The VLS-LSM-C4 has an integrated 4-port PoE switch to achieve a LONGSPAN link for up to four PoE IP cameras.




LONGSPAN Max devices are capable of of delivering power to 820m, however, higher PoE delivery is only possible to just over 600m.


Veracity LONGSPAN VLS-LSM-C4 Quick Guide

Product Datasheets

Veracity LONGSPAN MAX QUAD VLS-LSM-C4 Camera Device Datasheet (1.19MB)


Please note: this product may not be immediately available from UK stock and so may have a 14 working day lead time to fetch stock



LONGSPAN Max Quad camera devices can be locally powered to deliver the maximum PoE to the IP camera or other types of PoE powered devices, irrespective of LONGSPAN link distance. This can be ideal for external IP PTZ cameras, In this configuration, the LONGSPAN link could be 820m and LONGSPAN Max Base would be replaced with LONGSPAN Lite as PoE transmission over the link is not required.


Find use-IP on Youtube   Find out more at the use-IP forum


Frequently bought together

+

Price for all selected :

£684.00Incl VAT

Excl VAT. £ 570.00

  1.    This itemVeracity LONGSPAN MAX QUAD VLS-LSM-C4 Camera Device
  2.    Veracity LONGSPAN MAX VLS-LSM-B Base Device

Key Features

- Quad LONGSPAN camera device with 802.3bt PoE
- Long range point-to-point Ethernet over Cat5 or Cat6 cable
- Unrestricted 100Base-TX with PoE at over 820m
- Delivers power for 4 x 13W IP cameras up to 330m from Base device
- With local power, can deliver PoE for 71W IP cameras at 820m
- Ruggedised for high performance over a wide temperature range
- Smart PoE power and diagnostic display for reliable installation
- Fully automatic, simple to install and maintenance-free

Additional Information

Weight 161.0000
Warranty 1 Year
Launch Date Autumn 2020
