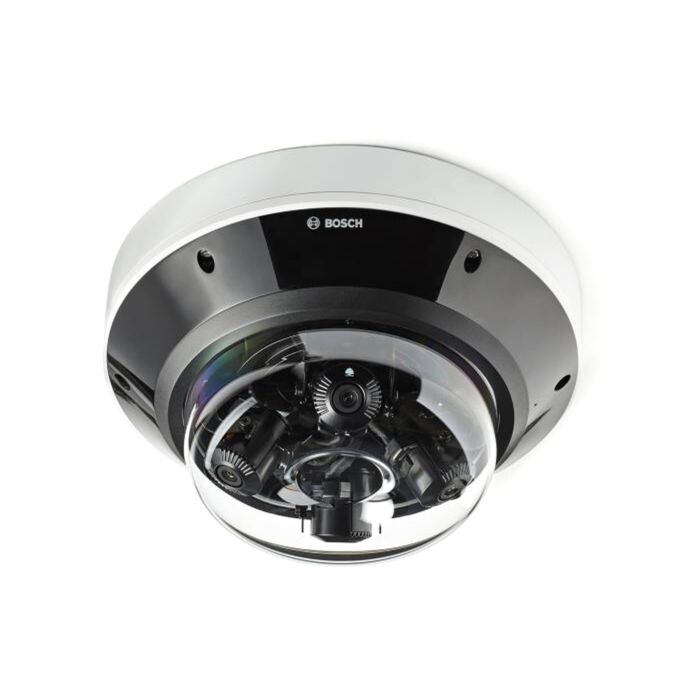

Bosch NDM-7703-AL FLEXIDOME Multi 7000i IR 20MP Fixed Dome Camera
SKU: NDM-7703-AL
Contact Us for Stock Levels
Key Features:
- 4x 5MP (2592x1944) resolution
- 4x Motorised Zoom and Focus lenses (f= 3.7-7.7mm), up to 30fps
- Up to 360º coverage
- IR illumination up to 30m
- High Dynamic Range (HDR) up to 120dB
- Switchable IR-cut filter
- Intelligent Video Analytics
- Two-way audio
- Built-in microphone
- Easy and flexible installation
- IP66 and IK10 ratings for water and vandal resistance
This product can be powered by 24VAC, PoE or PoE+.
Please note: this product does not come with a power supply.
Bosch FLEXIDOME multi 7000i IR Quick Installation Guide
Bosch FLEXIDOME multi 7000i IR Installation Manual
Bosch FLEXIDOME multi 7000i IR User Manual
This product may not be immediately available from UK stock, in which case it will take 7 days to fetch it from their European warehouse.
Please contact us before purchasing.
Details
The NDM-7703-AL is a camera equipped with four independent imagers that each provide 5MP (2592x1944) resolution. With IP66 and IK10 ratings, it has weather and vandal resistance.
The NDM-7703-AL also includes High Dynamic Range (HDR), ensuring that the exceptional image quality is maintained in low lighting without HDR motion blur and artefacts. The excellent low light performance of this camera can also be guaranteed with the IR range of up to 30m, so the high image quality is maintained during all hours of the day.
The built-in Intelligent Video Analytics Pro (IVA Pro) supplies the camera with IVA Pro Building and IVA Pro Perimeter, bringing incredibly reliable deep-learning based detection and tracking of persons and vehicle to a variety of scenes while also resisting false triggers.
We recommend using PoE to power this camera as the installation is easier and more cost effective, as the cameras so not require a local power source.
DORI is a standard system used to define the ability of a camera to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below:
| DORI | Detect | Observe | Recognise | Identify |
| 3.7-7.7mm | 47m/148m | 22m/59m | 11m/30m | 6m/15m |
Parts Included:
- NDM-7703-AL Camera
- Mounting plate
- TR20 Allen key
- RJ-45 punch-through aid
- 2-pin power connector
- 8-pin Audio and I/O connector
- 2x M20 rubber grommets
- Quick installation guide
- Safety information
- 3x Installer UX labels

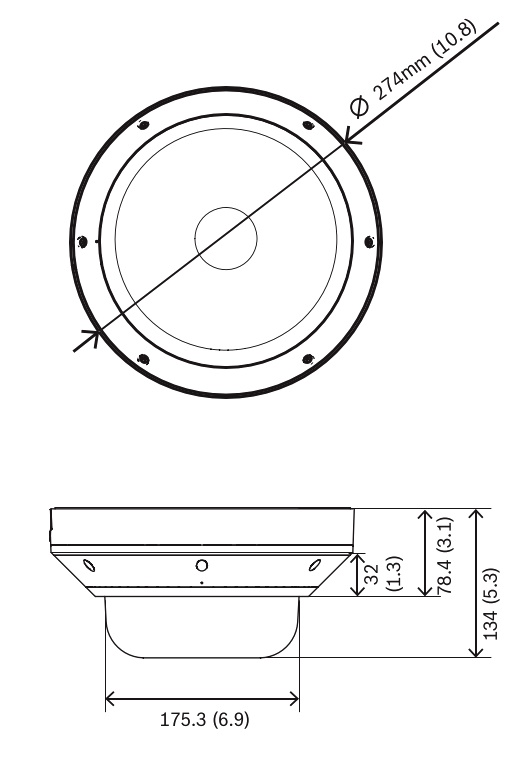

Dimensions in mm (inch):
