Geovision GV-EVD3100 3MP Vari-Focal Dome Camera

Out of stock
GV-EVD3100 ~ EOL
£420.00 £350.00

The Geovision GV-EVD3100 is now End of Life.

There is no direct replacement but please feel free to browse our Geovision category

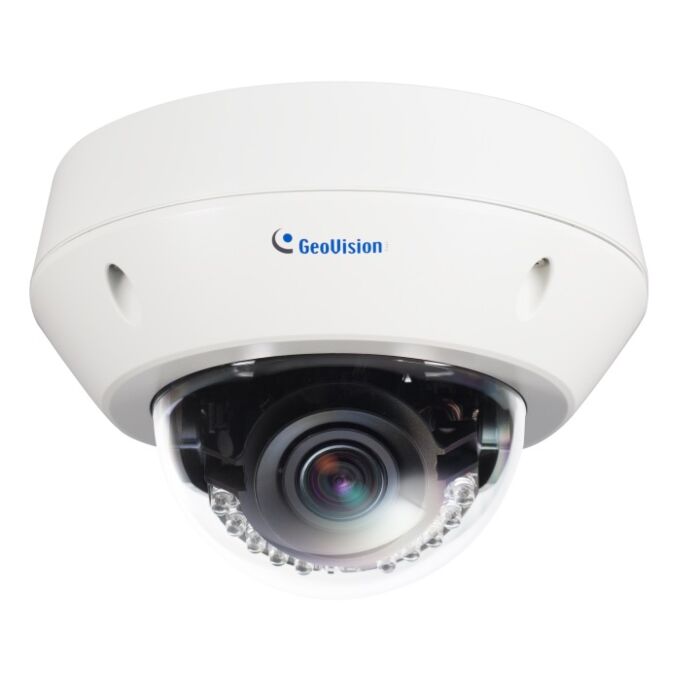

The Geovision GV-EVD3100 is a 3MP dome camera with a vari-focal 3mm~9mm lens and intelligent IR LEDs effective up to 50m. Fitted with IP67 rated weatherproof housing and IK10 vandal resistant housing, this camera is a sturdy choice for outdoor applications. The GV-EVD3100 has a 3-axis mechanism for precise set up ensuring any area of interest can be easily covered. This camera also supports two way audio for the connection of an external microphone and speaker. With a range of image enhancers such as wide dynamic range, back light compensation, 3D noise reduction and image configuration such as contrast, brightness and saturation, the GV-EVD3100 can provide excellent video quality day or night. Security is further improved with the use of motion detection, tampering alarm and privacy mask. This camera supports on board storage and H.264 compression. It can be powered by a 12VDC power supply or by PoE and remote access is possible through internet explorer or the GV-Eye app.

GV-VD5100 packing list

Vandal Resistant Dome Quick Start GuideGeovision BrochureGeovision Mount Guide

Product Datasheets

Geovision GV-EVD3100 3MP Vari-Focal Dome Camera Datasheet (1.33MB)


GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


- 3MP - Dual streams from H.264, MJPEG - 30fps @ 2048 x 1536 - IK10 vandal resistant housing - IP67 weatherproof housing - P-iris lens for auto iris control - Intelligent IR effective up to 50m - 3-axis mechanism - DC 12V/PoE - Two-way audio - Wide dynamic range - 3D noise reduction technology - Smart streaming - Defog - Motion detection - Tampering alarm - 31 languages on web interface


3mm - 9mm: Horizontal field of view: 96° to 36°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

GV-VD overview

Image chip size 1/2.8"
Image chip type Progressive scan super low lux CMOS
Image Compression H.264 & Motion JPEG
Audio Two-way
Indoor / Outdoor Outdoor
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2048 X 1536
Min. low-light lux 0.01
Supply Volts 12V DC or PoE
Lens Mount Φ14
Viewing Angle 96° ~ 36° Horizontal Field of View
Aspect ratio 4:3
Megapixels 3 MP
Supplied with lens Yes
Accepts auto-iris lens P-Iris control
IR Range Up to 50m
Max. Images per second 30
PSU included No
ONVIF Compatible Yes
Power Consumption max. 6.1W
Warranty 2 Years
Launch Date November 2016
Focal Length 2.8mm
Audio/Alarm I/O Audio/Alarm I/O
Wireless Wireless
Frames per Second 8.3 fps
Resolution 720p
Colour White
Built-in PIR No Built-in PIR
