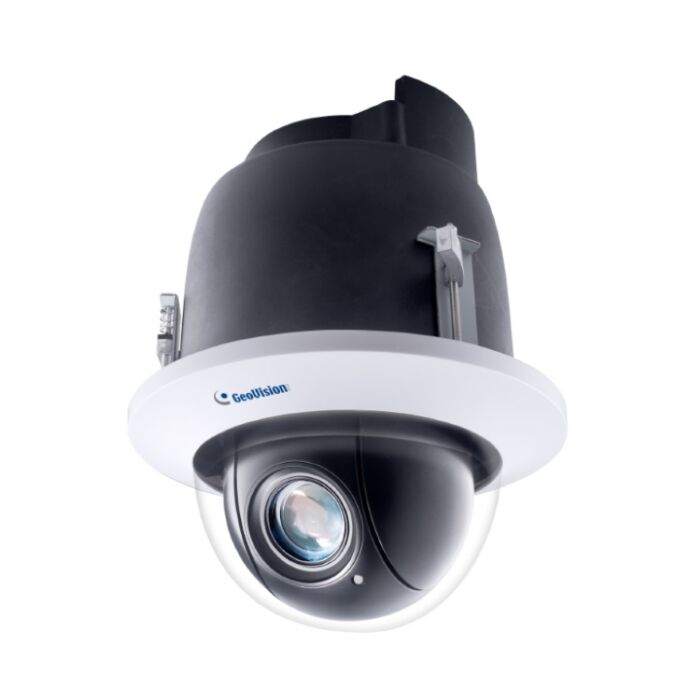

Geovision GV-QSD5730 5MP IP Speed Dome Camera

Contact Us for Stock Levels
SKU
GV-QSD5730
£1,861.20 £1,551.00

Key Features:

- 1/2.8" progressive scan low lux CMOS sensor

- Quad streams from H.265, H.264 or MJPEG

- Up to 30 fps at 2592 × 1944

- Min. illumination at 0.002 lux

- 33x optical zoom and 10x digital zoom

- Day and Night function (with removable IR-cut filter)

- Four sensor inputs and two alarm outputs

- Wide Dynamic Range Pro (WDR Pro)

- Temperature tolerance (-25°C ~ 50°C / -13°F ~ 122°F)

- Support for TV-out

- Two-way audio

- Built-in SD card slot (SDHC/SDXC, Class 10) for local storage

- PoE (802.3af) / AC 24V

- Pan 360° endlessly

- Tilt from -10° to 100°

- Pan and tilt speed of up to 400°/sec and 300°/sec respectively

- PTZ movement (Preset, Cruise, Auto Pan, Sequence)

- PTZ auto tracking

- Electrical Image Stabilizer (EIS)

- Servo Feedback, returning the camera view to the previous position upon encountering external forces

- 3D noise reduction

- Privacy mask

- 12 languages on Web interface

- ONVIF (Profile G, S, T) conformant


SHIPPED FROM GEOVISION'S EUROPEAN WAREHOUSE

PLEASE ALLOW 7-10 WORKING DAYS FOR DELIVERY.


Geovision GV-QSD5730 User Manual Geovision GV-QSD5730 Quick Start Guide Geovision Brochure Geovision Mount Guide

Product Datasheets

Geovision GV-QSD5730 5MP IP Speed Dome Camera Datasheet (0.25MB)


GV-EYE

GV-EYE app for mobile viewing

- GV-EYE app for android

- GV-EYE app for iOS



Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera



The Geovision GV-QSD5730 is a 5 megapixel indoor speed dome camera featuring a 33x optical zoom and 10x digital zoom lens.

The camera features 360° endless pan and -10° ~ 100° tilting capacity to provides users with wide coverage. Users can programme and activate PTZ functions such as preset, auto pan and patrol by schedule.

Servo Feedback and Electronic Image Stabiliser (EIS) technology is a feature of the GV-QSD5730 and the Servo Feedback technology will ensure the camera view returns to the previous position when encountering external force or environmental vibration. EIS technology is able to effectively produce stable images by actively sensing directional movement of the images and compensating according.


Packing List:

- Drill template paster

- 3-Pin power terminal block (AC 24V)

- 4-Pin alarm/audio I/O terminal block

- Download guide

- Warranty card


Geovision GV-QSD5730 Dimensions
Specs
Country Of Origin Taiwan
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio Two-way
Indoor / Outdoor Indoors only
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2592 X 1944
Min. low-light lux 0.002
Supply Volts 24V AC, PoE+
Lens Mount optical zoom lens
Lens Focal Length 4.6 ~ 152mm
Viewing Angle 55.4° ~ 1.9° Horizontal Field of View
Aspect ratio 4:3
Megapixels 5 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
Max. Images per second 30
PSU included N/A
ONVIF Compatible Yes
Power Consumption max. 25.4W
Warranty 2 Years
Launch Date Summer 2020
Commodity Code 8525801990
