5.0 2 Hikvision DS-2CD2142FWD-I | 2.8mm 4MP WDR Fixed Dome Network Camera

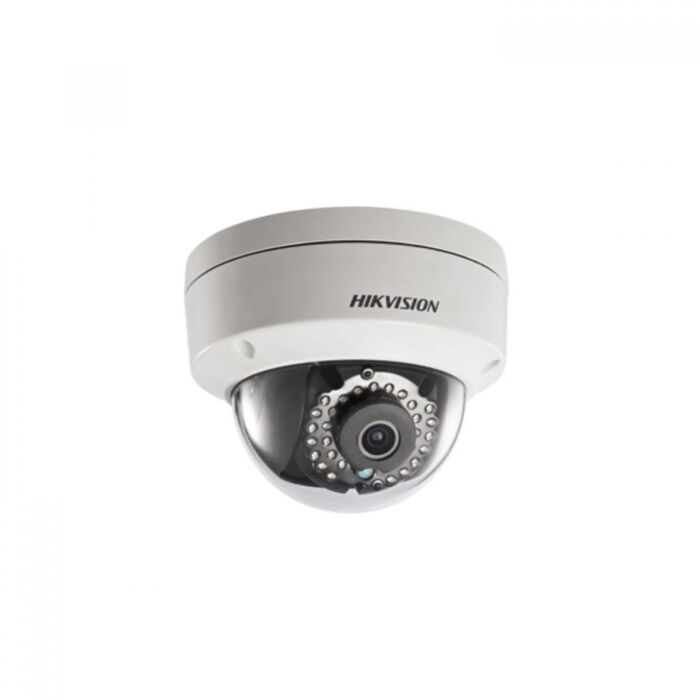

Hikvision DS-2CD2142FWD-I | 2.8mm 4MP WDR Fixed Dome Network Camera

Availability: Out of stock

Hikvision DS-2CD2142FWD-I-2.8mm

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

We like this because… The IK10 rated vandal-resistant dome cover, 4MP resolution and improved 120db WDR make this our go-to recommendation for any camera that may be within reach and at risk of tampering, such as ground floor installations.

Quick Overview


This product is now End of Life - May we recommend the DS-2CD2143G0-I or please feel free to browse the Hikvision category.

The Hikvision DS-2CD2142FWD-I is a 4MP dome camera with the option of either a 2.8mm or 4mm lens. This camera is a great choice for external, domestic applications as it is fitted with IP66 rated weatherproof housing and IK10 vandal resistant housing. There are also built in infra-red LEDs that are effective up to 30m and help this camera to provide high quality images day and night.

The DS-2CD2142FWD-I has 3-axis adjustment allowing it to be mounted in versatile ways to ensure that any area of interest can be covered. There is also the optional choice of junction box or bracket to further expand the mounting options available to this camera. This camera uses a range of image enhancing features to improve image quality even further: wide dynamic range (WDR), back light compensation (BLC) and 3D digital noise reduction (3D DNR).

The DS-2CD2142FWD-I features a host of alarm trigger features such as motion detection, tampering alarm and many more. Using H.264+ codec, this camera is able to reduce bandwidth and storage needs allowing the on board micro SD card slot to be efficiently used. This dome camera can be powered by either a 12V DC power supply or by PoE. Remote access is possible through a web browser or through the Hik-Connect app.
PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

Hikvision Product Catalogue Hikvision Quick Guide Hikvision R6 Catalogue User Manual


Product Datasheets

Hikvision DS-2CD2142FWD-I | 2.8mm 4MP WDR Fixed Dome Network Camera Datasheet (0.84MB)


This camera has been superseded by a camera from the EasyIP 2.0+ which was released in June 2018 - DS-2CD2143G0-I

2122 banner


R6 Family Banner


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Key Features

- Up to 4 megapixel high resolution
- Full HD 1080p video
- Dual video streams
- 120dB wide dynamic range
- 3D digital noise reduction - 3-axis adjustment
- DC12V & PoE
- Support H264+
- IK10 protection
- Up to 30m IR range
- IP66 weatherproof protection

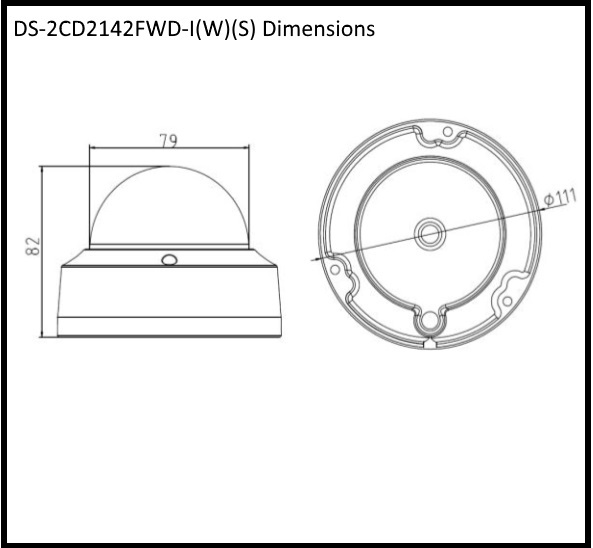

Dimensions
2.8mm - Horizontal field of view: 106°
4mm - Horizontal field of view: 83°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


Hikvision IP Camera Codes
Hikvision IP Camera Codes

Additional Information

Weight 500.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.264/MJPEG/H.264+
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 2688 X 1520
Min. low-light lux 0 Lux (IR LED ON)
Supply Volts 12V DC or PoE
Lens Mount M12 mount
Viewing Angle Horizontal Field of View
Aspect ratio 16:9
Megapixels 4 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max. 5W
Warranty 2 Years
Launch Date Autumn 2015
Focal Length 2.8mm
Audio/Alarm I/O No Audio/Alarm I/O
Wireless No Wireless
