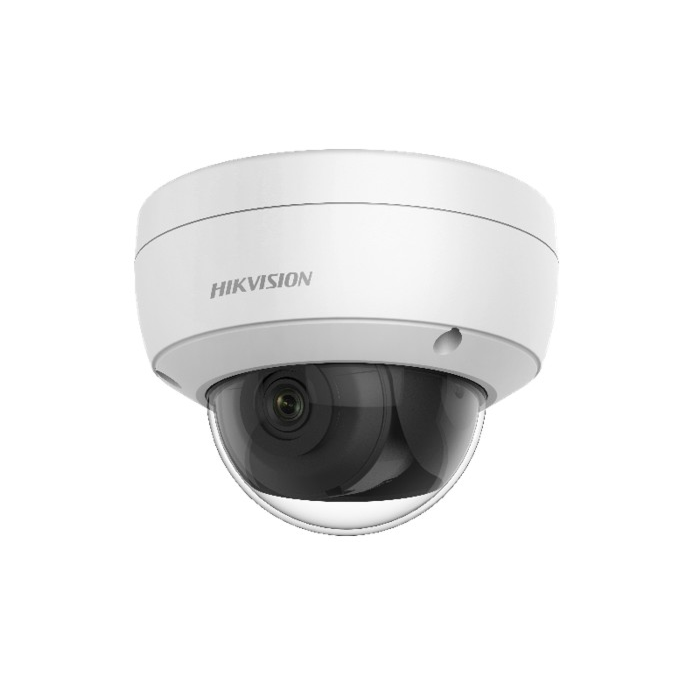

Hikvision DS-2CD2146G1-I AcuSense 4MP IR Fixed Dome Network Camera 2.8mm

Availability: In stock Contact Us for Stock Levels

Hikvision DS-2CD2146G1-I 2.8mm

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2CD2146G1-I is a 4MP IR dome camera featuring AcuSense technology; AcuSense stands for accurate sensing and this technology is able to distinguish between person and vehicle or other. This dramatically reduces the number of false alert notifications users get sent.

As well as this the camera features a alarm trigger which alerts if; there is an illegal login attempt, tampering is detected and the network is disconnected etc.

Featuring an IP67 weather-resistant and IK10 vandal-resistant housing along with a working temperature of -30°C to +50°C this camera is ideal for both indoor and outdoor use and the camera can be easily manually adjusted thanks to 3-axis adjustment.

Powered by Darkfighter technology the DS-2CD2146G1-I can produce clear, detailed images even in ultra-low light environments 24/7.

Please note, this camera does not come with a power supply.

Hikvision Network Camera User Manual Hikvision Dome Quick Start GuideHikvision Product Catalogue Hikvision Darkfighter Catalogue Hikvision Quick Guide

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together


Key Features

- Powered by Darkfighter.
- 120dB WDR.
- IR range: Up to 30 m.
- False alarm filter by target classification.
- 12 VDC & PoE (802.3af, class 3).
- H.265, H.264.
- Max. 2688 × 1520 @ 30fps.
- IP67, IK10.
- Support on-board storage, up to 128 GB.
- Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON).

2.8mm - Horizontal field of view: 104°
4mm - Horizontal field of view: 83°
6mm - Horizontal field of view: 51°
12mm - N/A°

Focal Length Diagram

Additional Information

Weight 600.0000
Image chip size 1/2.7"
Image chip type Progressive Scan CMOS
Image Compression H.265/H.264
Audio Audio input/output (full duplex)
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2688 X 1520
Supply Volts 12V DC or PoE
Lens Mount M12 mount
Lens Focal Length 2.8mm
Viewing Angle Horizontal Field Of View: 104°, Vertical Field Of View: 58°, diagonal Field Of View: 124°
Aspect ratio N/A
Megapixels 4 MP
Supplied with lens Yes
IR Range Up to 30m
ONVIF Compatible Yes
Power Consumption max. 10W
Warranty 3 Years
Launch Date Spring 2019
Focal Length 2.8mm
