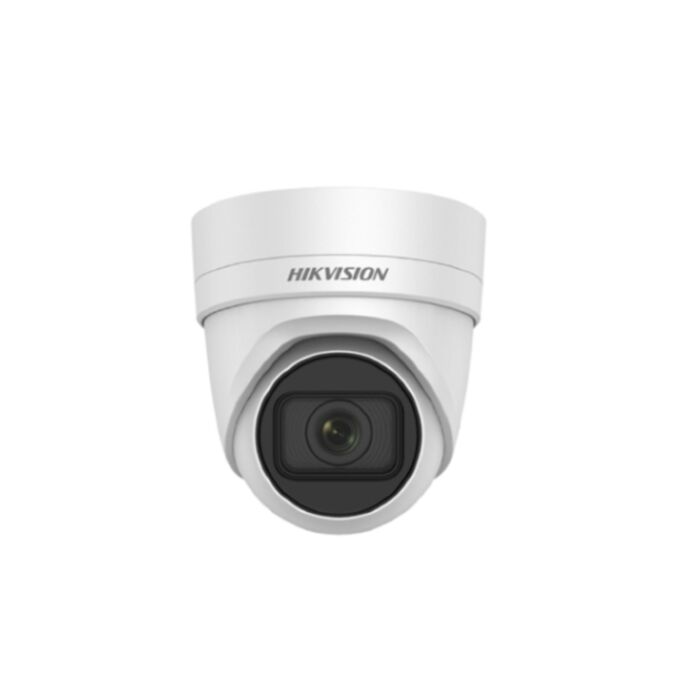

Hikvision DS-2CD2H86G2-IZS 8MP AcuSense Varifocal Turret Network Camera

In Stock
Only 3 left

This item is expected to be back in stock in Febrauary. We do not have a confirmed date as yet.

- 8 Megapixels

- Powered by Darkfighter

- 2.8-12mm Varifocal Lens

- IR Range Up-To 40m

- IP66 Rated (Water and Dust Resistant)

- IK10 Rated (Vandal Resistant)

- 120dB WDR (Wide Dynamic Range)

- 3840 x 2160 @ 20 fps

- H.265+, H.265, H.624+, H.264

- On Board Storage


AcuSense Documents

Hikvision Easy IP 4.0 Catalogue

Hikvision Easy IP 4.0 AcuSense Flyer

Hikvision Darkfighter Catalogue

Hikvision Network Camera User Manual Hikvision Turret Quick Start Guide

Product Datasheets

Hikvision DS-2CD2H86G2-IZS 8MP AcuSense Varifocal Turret Network Camera Datasheet (1.10MB)

G1 Family Badge

DS-2CD2H86G2-IZS Features

For information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2CD2H86G2-IZS 8MP AcuSense Varifocal Turret Network Camera
  2. +
  3. Hikvision DS-7608NI-I2-8P 8 Channel Network Video Recorder
  4. +
  5. Hikvision DS-1273ZJ Wall Mount Bracket
Total price: £0.00INCL VAT
Ex Vat: £0.00

The DS-2CD2H86G2-IZS is the first Varifocal Turret to be added to Hikvision's AcuSense range. The 8 megapixel turret camera uses deep learning algorithms to reduce false alarms, typically generated by foliage, insects or pets. This means that alarm efficiency is vastly improved when targeting humans and vehicles.

With its vari-focal lens ranging between 2.8mm and 12mm the camera provides an excellent option for capturing a range of positions. The lens is able to provide a horizontal field of view ranging between 108° to 45.8°. This allows users to capture a narrow FOV which is not often available with the standard fixed lens options, with no compromise to the resolution.

Powered by Darkfighter technology the DS-2CD2H86G2-IZS performs extremely well in low light conditions with an IR range of up to 40 meters. The camera also uses technology such as WDR (Wide Dynamic Range) to provide a clear image against a strong backlight.

The DS-2CD2H86G2-IZS feautres on-board storage space for a Micro SD/SDHC/SDXC card up to 256GB for those wanting extra storage back up, or those using the camera as a standalone system, with no NVR. Thanks to H.265+ video compression, users will also experience a greater bandwith and storage saving of up to 90%.

This camera can be powered by PoE or with a 12V DC power supply, we normally recommend PoE for ease of installation. Please note: this camera does not come with a power supply for our recommended option please see our Frequently Brought Together section above.


2.8mm - Horizontal field of view: 108° 4mm - Horizontal field of view: 83° 6mm - Horizontal field of view: 53° 12mm - 45.8°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 3840 X 2160
Min. low-light lux 0.003
Supply Volts 12V DC or PoE
Lens Mount Φ14
Lens Focal Length 2.8~12mm
Viewing Angle 108°-45.8° Horizontal Field of View
Aspect ratio 16:9
Megapixels 8 MP
Supplied with lens Yes
IR Range Up to 40m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 11W
Warranty 3 Years
Launch Date December 2020
Focal Length 2.8mm
