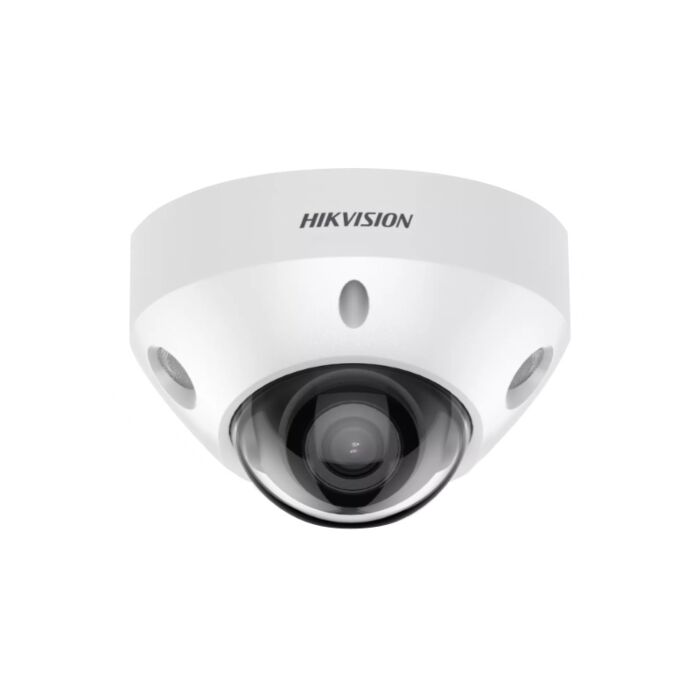

Hikvision DS-2CD3586G2-IS 8MP Fixed Mini-Dome Network Camera
SKU: DS-2CD3586G2-IS
Out of stock
Key features:
- 8MP (3840x2160) Image Resolution
- Lens Specs - Fixed Iris, M12 lens mount, F1.6 aperture
- 2 Lens Options - 2.8mm or 4mm
- Impressive Low Light performance, with DarkFighter technology
- 120dB WDR (Wide Dynamic Range) - for improved visibility in challenging lighting conditions
- Image Enhancement capabilities - HLC (Highlight compensation), BLC (Backlight compensation), 3DNR (3D noise reduction)
- IR Suppliment Light - up to 30m
- Capable of Human and Vehicle Target Classification, based on Deep Learning
- Supports a selection of Deep Learning capabilities and Analytics - Includes Basic events, Smart events, Face Capture, and Perimeter Protection
- Simultaneous Live View - up to 6 channels
- Features support for up to 32 Users, with 3 User levels - Administrator, Operator, and User
- Equipped with Audio / Alarm Interface, and a built-in Microphone
- Operating Conditions - Temperature: -30°c ~ 60°c | Humidity: 95% or less (non-condensing)
- Equipped for use in Outdoor applications - IP67 Ingress protection
- Vandal Resistant - IK08 Impact rating
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD3586G2-IS is a fixed lens Mini-Dome camera, from Hikvision, equipped with 8MP resolution, DarkFighter capabilties, Acusense, Deep Learning functionality, a selection of analytics, and IP67 environmental resistance (suitable for use in Outdoor applications)
Lens Options and FOV specs
This camera is available as one of two lens options / models. These include - DS-2CD3586G2-IS(2.8mm)(H) and DS-2CD3586G2-IS(4mm)(H). Both lens options are fixed iris, M12 mount, with F1.6 aperture, but offer a different focal length, FOV, and DORI distance.
Field of View (FOV)
| Horizontal FOV | Vertical FOV | Diagonal FOV | |
| 2.8mm | 110° | 56.7° | 134.1° |
| 4mm | 88° | 49.9° | 100.4° |
DORI: Detection, Observation, Recognition, Identification - DORI distance is used to give users a general overview of the camera's capability to distinguish between people and objects within its field of view.
| Detection | Observation | Recognition | Identification | |
| 2.8mm | 89m | 35m | 18m | 9m |
| 4mm | 99m | 39m | 20m | 10m |
Impressive Image Quality
Equipped with 8MP HD Image Quality, with a max. resolution of 3840 x 2160, and 16:9 aspect ratio, the DS-2CD3586G2-IS offers impressive footage, supported by a selection of image enhancement and low light technologies. These include:
Hikvision DarkFighter Technology - Improves image quality and offers clear, full colour footage in low light conditions.
IR Illumination - Supplement Light, with an IR wavelength of 850nm, and a range of up to 30m.
120dB Wide Dynamic Range (WDR) - Improves image visibility in challenging lighting conditions.
Highlight Compensation (HLC) and Backlight Compensation (BLC) - Compensates for areas of darkness and bright light in the camera's field of view, keeping images clear and balanced.
3D Noise Reduction (3DNR) - Reduces image quality interference from incoming 'noise' keeping footage as clear as possible.
Analytics, Alarm Linkage, and Deep Learning Functions
Basic Events - Motion detection, Video Tampering alarm, Exception detection
Smart Events - Line-crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Audio exception detection, Unattended baggage detection, Object removal detection
Alarm and Footage upload Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, trigger Alarm output, trigger Recording, trigger Capture, Audible warning
Deep Learning Functions - Face Capture, Perimeter Protection (line crossing, intrusion, region entrance, and region exiting detection, with support for alarm triggering by different types - human and vehicle)

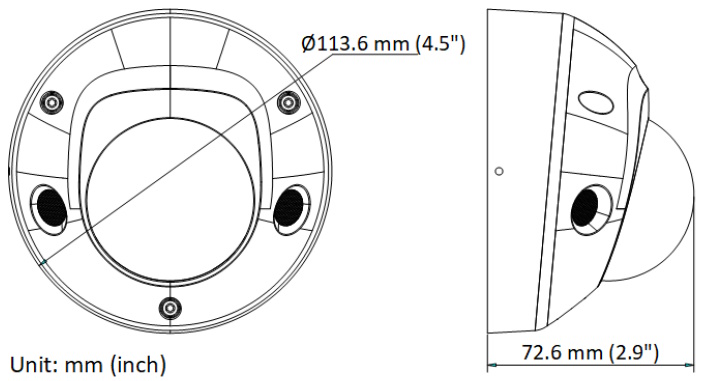

Dimensions:
