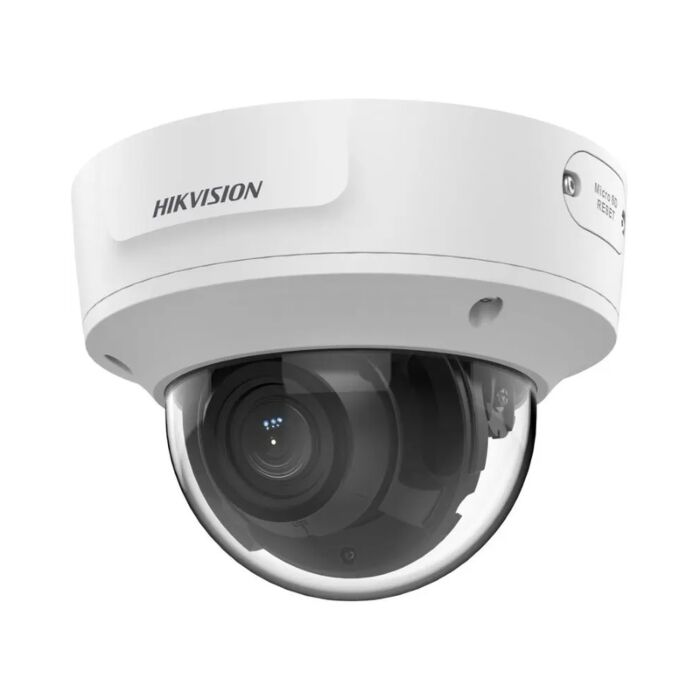

Hikvision DS-2CD3786G2T-IZSY 8MP AcuSense Varifocal Dome Camera
SKU: DS-2CD3786G2T-IZSY(H)
In Stock
Key features:
- 8MP 3840x2160 Image Resolution, at 30 fps
- Motorised Varifocal Lens, with Auto-Iris and F1.6 Aperture
- 2 Focal Length Options - 2.7~13.5mm / 7~35mm
- Impressive Low Light performance, powered by DarkFighter technology
- IR Illumination - up to 40m (2.7~13.5mm) or 50m (7~35mm)
- 120dB WDR (Wide Dynamic Range) - for improved detail and clarity against strong backlight
- Image Enhancement technologies - BLC (backlight compensation), HLC (highlight compensation), 3DNR (3D noise reduction)
- Efficient Compression, with H.265+ technology
- Supports Deep Learning functions (Face Capture and Perimeter Protection)
- Supports simultaneous Live View for up to 6 channels
- Users - up to 32, with 3 user levels: Administrator, Operator, and User
- Audio - 1 input, 1 output, with support for Environment Noise Filtering
- Operating Conditions - Temperature: -30°c ~ 60°c | Humidity: 95% or less (non-condensing)
- Water and Dust Resistant - IP67 ingress protection
This product can be powered by 12V DC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision DS-2CD3786G2T-IZSY Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD3786G2T-IZSY is a 8MP (4K) Dome camera, equipped with a Motorised Varifocal lens, and enhanced with Hikvision DarkFighter and AcuSense technologies.
It offers impressive low light performance, efficient video compression, effective image enhancement capabilities, and a selection of video analytics, including basic events, smart events, and deep learning functions.
The DS-2CD3786G2T-IZSY is available with 2 different lens options - 2.7~13.5mm, and, 7~35mm
(please see the 'Field of View' and 'DORI' tables below for more information)
Hikvision Technologies:
Acusense - AcuSense is a technology designed for Hikvision cameras, that uses deep-learning AI algorithms to improve security capabilities.
This allows for AcuSense equipped cameras to achieve impressive Human and Vehicle classification, meaning that it will recognise whether an alarm was triggered by a person, vehicle, or other object. This reduces the amount of false alarms, and allows your surveillance system to prioritise genuine security risks.
Darkfighter - DarkFighter is a technology that helps to improve a camera's low light performance, allowing image quality to remain clear regardless of the amount of light in a scene. This keeps video surveillance working effectively at all times.
Field of View (FOV)
| Horizontal FOV | Vertical FOV | Diagonal FOV | |
| 2.7 ~ 13.5mm | 108° ~ 46° | 58° ~ 26° | 127° ~ 52° |
| 7 ~ 35mm | 42° ~ 15° | 23° ~ 9° | 49° ~ 17° |
DORI: Detect, Observe, Recognise, Identify (wide / tele)
| Detect | Observe | Recognise | Identify | |
| 2.7 ~ 13.5mm | 86m / 192m | 34m / 76m | 17m / 38m | 8m / 19m |
| 7 ~ 35mm | 200m / 580m | 79m / 230m | 40m / 116m | 20m / 58m |
Image Enhancement Capabilities:
IR Illumination - Supplement Light, with an IR wavelength of 850nm, and a range of up to 40m (for the 2.7~13.5mm model) or 50m (for the 7~35mm model)
120dB Wide Dynamic Range (WDR) - Improves image visibility in challenging lighting conditions.
Highlight Compensation (HLC) and Backlight Compensation (BLC) - Compensates for areas of darkness and bright light in the camera's field of view, keeping images clear and balanced.
3D Noise Reduction (3DNR) - Reduces image quality interference from incoming 'noise' keeping footage as clear as possible.
Analytics, Alarm Linkage, and Deep Learning Functions:
Basic Events - Motion detection, Video Tampering alarm, Exception detection
Smart Events - Line-crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Audio exception detection, Defocus detection
Alarm and Footage upload Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, trigger capture, trigger recording, trigger Alarm output, Audible warning
Deep Learning Functions - Face Capture, Perimeter Protection (line-crossing, intrusion, region-entrance, and, region-exiting detection - with support for alarm triggering by specified target type)

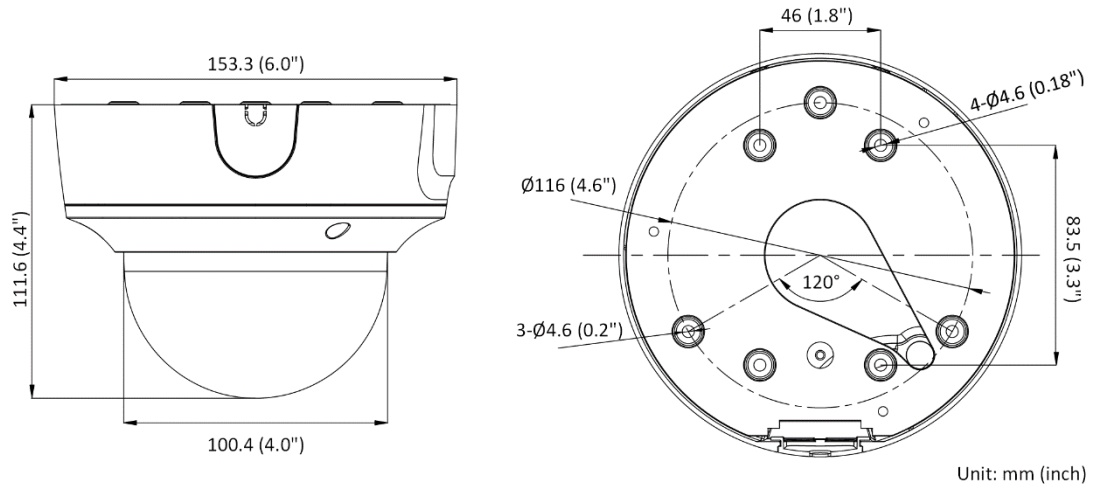

Dimensions:
