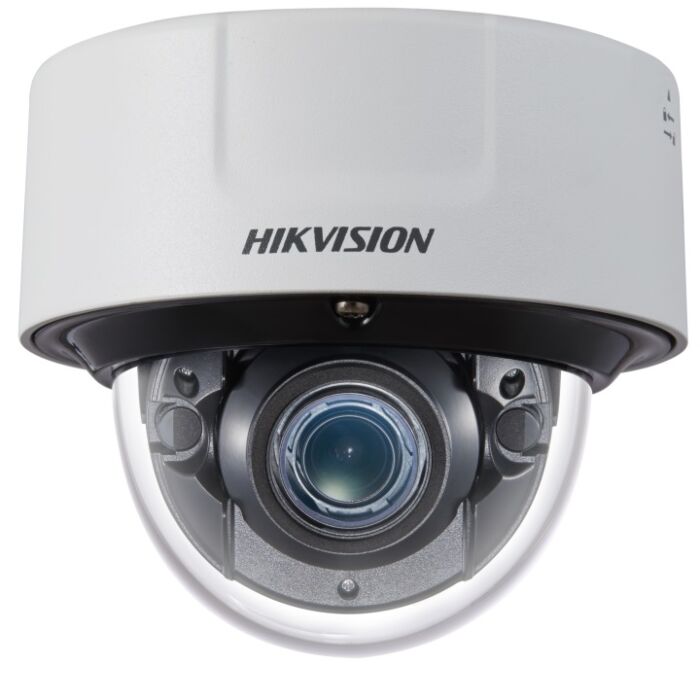

Hikvision DS-2CD5546G0-IZS 4MP Vari-focal Dome Network Camera

Availability: Contact Us for Stock Levels

Hikvision DS-2CD5546G0-IZS

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2CD5546G0-IZS is a 4MP vari-focal dome camera with 2.8mm - 12mm motorized lens and 1/1.8" progressive scan CMOS chip.

Armed with face detection, defocus detection, audio exception detection and scene change detection, this camera also comes with 6 behavior analyses including intrusion detection, object removal detection, line crossing detection, unattended baggage detection and region entrance & exiting detection.

With H.265+ compression, users get a huge saving on bandwidth and storage usage compared to previous H.264 compression. This is supported by the on-board Micro SD/SDHC/SDXC allowing up to an extra 256GB of storage.

This camera comes with IK10 vandal-proof housing, an IR range of up to 30m, IP67 weather-proof housing and a working temperature of -30°C to 60°C, making it perfect for outdoor environments. Although, it can be for either indoor or outdoor use. It also has an angle adjustment, panoramic - 0° to 355°, rotate - 0° to 355° and tilt - 0° to 75°.

The DS-2CD5546G0-IZS is powered by Darkfighter which gives a high quality, detailed image in low-light environments. This is due to image enhancing features such as, defog, high light compensation (HLC), back light compensation (BLC), 140db wide dynamic range (WDR), 3D digital noise reduction (3D DNR).

It is powered by either 12V DC power supply or PoE. PSU NOT INCLUDED.

Hikvision Product Catalogue Hikvision 5 Series Catalogue Hikvision Quick Guide Hikvision DS-2CD5546G0-IZS User Manual Hikvision DS-2CD5546G0-IZS Quick Start Guide Hikvision DS-2CD5546G0-IZS Security Guide

Product Datasheets

Hikvision DS-2CD5546G0-IZS 4MP Vari-focal Dome Network Camera Datasheet (1.26MB)

5line badge

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together


Key Features

- 1/1.8” Progressive Scan CMOS.
- H.265, H.265+, H.264, H.264+.
- Anti-IR reflection.
- 2560 × 1440 @ 30fps.
- 6 behavior analyses, 3 exception detection, and face detection.
- Alarm 1 input/1 output, Audio 1 input/1 output.
- IR range up to 30 m.
- 5 streams and up to 5 custom streams.
- Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR.
- Built-in microSD/SDHC/SDXC card slot, up to 256 GB.
- IP67, IK10.
- Powered by Darkfighter.

Additional Information

Weight 1450.0000
Image chip size 1/1.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 2560 X 1440
Supply Volts 12V DC or PoE
Lens Mount Integrated
Lens Focal Length 2.8~12mm
Viewing Angle Horizontal Field of View: 109.2° to 38.9°, Vertical Field of View: 56.2° to 21.9°, Diagonal Field of View: 134.5° to 45°.
Aspect ratio N/A
Megapixels 4 MP
Supplied with lens Yes
IR Range Up to 30m
ONVIF Compatible Yes
Power Consumption max. 10W
Warranty 3 Years
Launch Date Spring 2019
