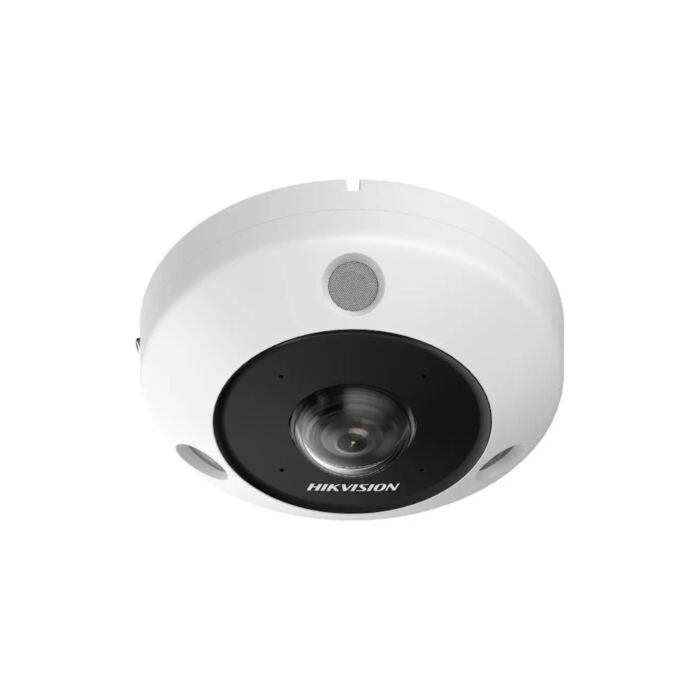

Hikvision DS-2CD63C5G1-IVS 12MP DeepinView IR Network Fisheye Camera
SKU: DS-2CD63C5G1-IVS
In stock
Key features:
- 12MP Resolution - 3504x3504 Fisheye view
- Supports a range of Display modes and Multi-Dewarping modes
- 1.29mm Fixed-focal Lens
- Lens Arperture - F2.2 / Depth of Field - 0.2 m to ∞
- Day and Night, IR-cut filter
- 3 IR Suppliment Lights - 850nm wavelength, up to 15m range
- Image Enhancement features - Digital WDR, BLD, HLC, 3D DNR, Distrortion correction, Defog
- Supports Deep Learning functions - Heat Map, People Counting, Queue Management, and Intersection Analysis
- Alarm I/O - 2 Inputs, 2 Outputs
- Simultaneous Live View for up to 20 channels
- Supports up to 32 Users, and 3 user levels - Administrator, Operator, User
- Built-in Memory card slot - supports microSD/SDHC/SDXC cards, up to 256GB
- Equipped with 4 built-in Microphones, and 1 built-in Speaker
- Operating Conditions - Temperature: -40°c to 60°c / Humidity: 95% or less (non-condensing)
- Built-in Heater
- IP67 Ingress Protection and IK10 Impact rated enclosure
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Network Camera Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD63C5G1-IVS is a 12MP Fisheye camera, designed as part of Hikvision's DeepinView range of cameras. It is equipped with a 1.29mm fixed-focal lens, 3504x3504 resolution fisheye view, up to 20 live view display modes, and a selection of deep learning AI-based functions.
Supports a range of camera views - includes; Fisheye view, 180 Panorama view, 360 Panorama view, 360 Panorama + PTZ view, 360 Panorama + 3PTZ view, and more..
Events and Alarm Linkage:
Basic Events - Motion detection, Video Tampering alarm, Alarm input / output, Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Events - Line Crossing detection, Intrusion detection, Region Entrance detection, Region Exiting detection, Scene Change detection, Audio Exception detection, Defocus detection, Unattended Baggage detection, Object Removal detection.
Alarm Linkage - Upload to FTP/NAS/memory card, Notify surveillance center, Send email, Trigger alarm output, Trigger recording, Trigger capture.
Deep Learning Functions:
People Counting - Counts people entering, exiting, and passing by a scene (stores data in the flash) and supports real-time uploading and upload by statistic cycle. Users can set it up to send email reports on a daily, weekly, monthly, or annual basis.
It also supports up to 3 detection groups, and an independent arming schedule / linkage method.
Queue Management - Supports up to 8 detection regions, and 2 detection modes (regional people queuing up / waiting time detection). It can also generate reports to compare the efficiency of different queues and displays the status of one.
Regional People Queuing up - supports 4 alarm trigger conditions, including; greater-than threshold, less-than threshold, equal-to threshold, and, not equal-to threshold.
Waiting Time detection - supports 1 alarm trigger condition (greater-than threshold)
Heat Map - A graphic description of visits, calculating the amount of people or amount of dwell time in a configured area. Supports 2 report types; Space Heat Map and Time Heat Map line chart.
Intersection Analysis - Used to detect and analyse flow in an intersection-like scene, and generate reports. Supports 1 intersection of up to 10 ways.
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Distance | 27.9m | 11.1m | 5.6m | 2.8m |

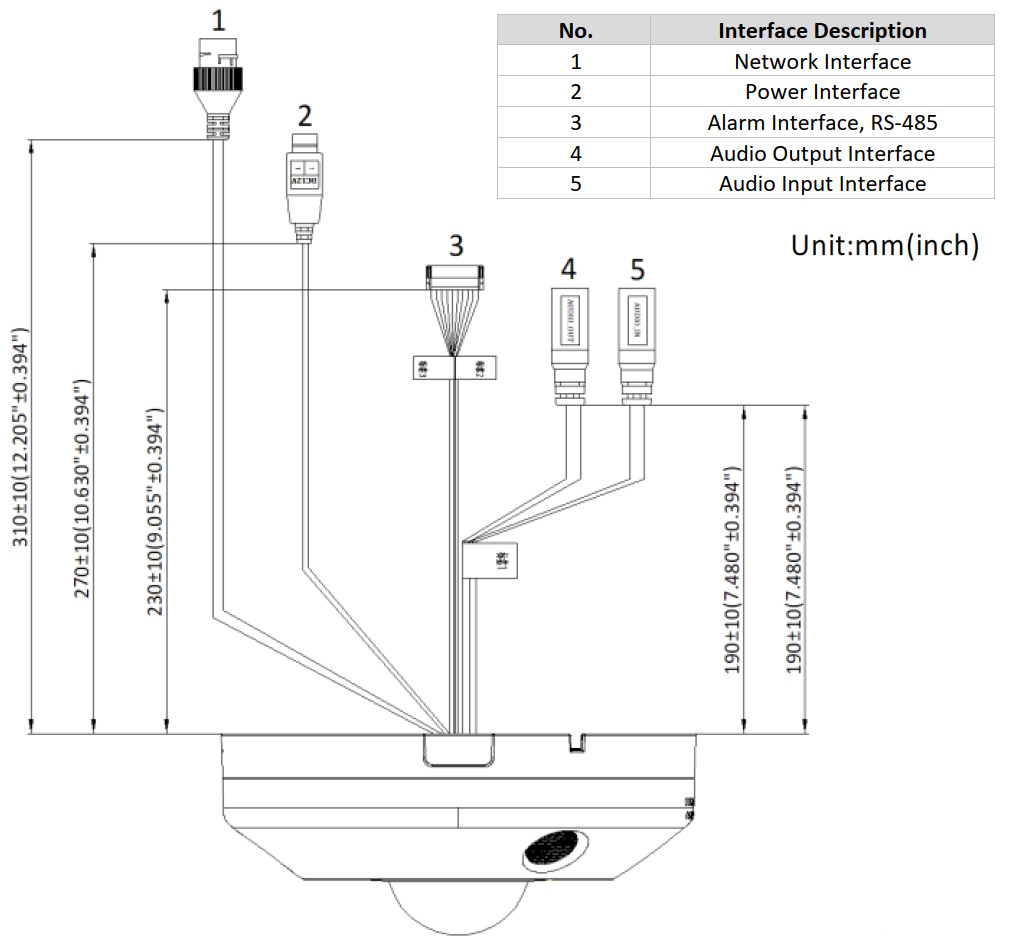

Physical Interface:

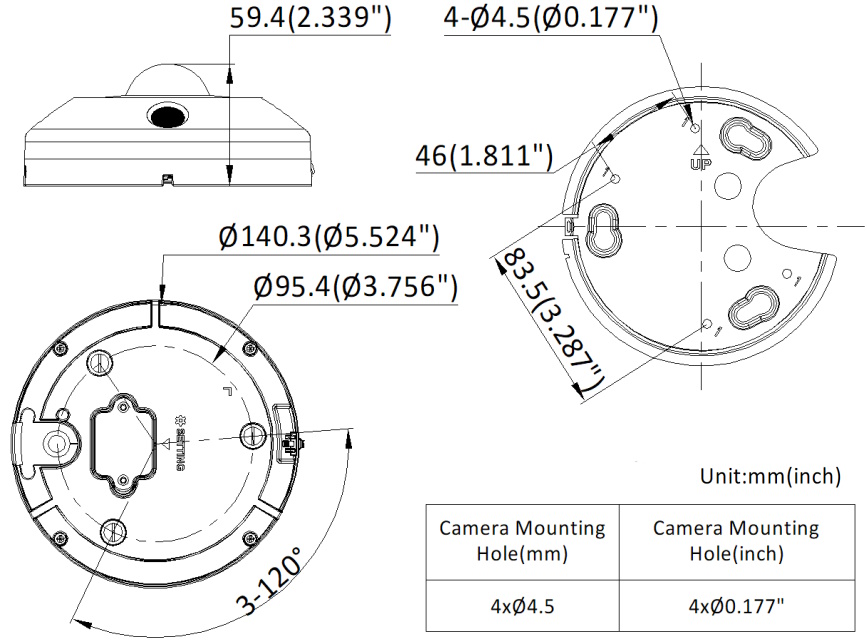

Dimensions:
