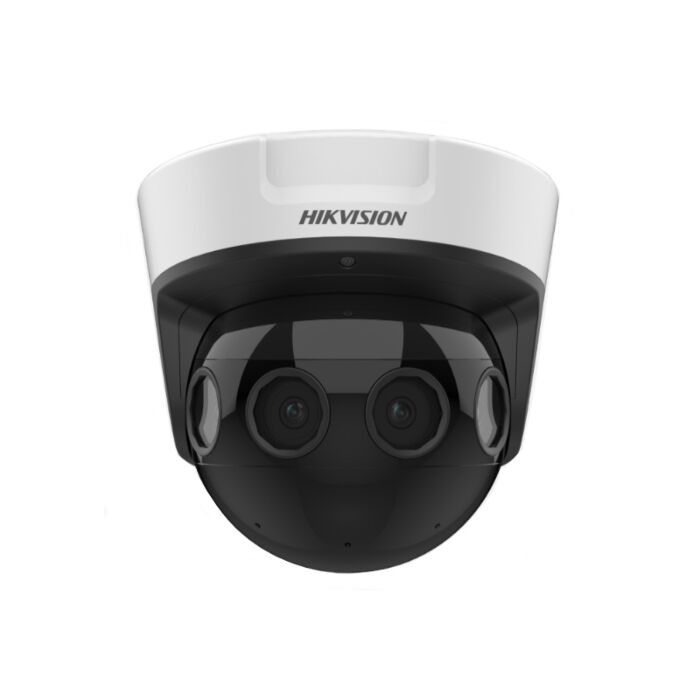

Hikvision DS-2CD6924G0-IHS(C) 8MP 180° Stitched PanoVu Camera
SKU: DS-2CD6924G0-IHS(C)
Available for delivery in 2~3 working days
Key features:
- PanoVu 180° Stitched, with 4 8MP sensors
- Supports 3 viewing modes - Pano+ePTZ, Panorama, and Original
- 1920x1080 (Pano+ePTZ / Original mode) or 3840x2160 (Pano mode) Image Resolution
- Four 2.8mm fixed focal Lenses
- Field of View - Horizontal FOV 180° | Vertical FOV 90°
- Angle Adjustment - Pan: 0° ~ 355° | Tilt: 0° ~ 90°
- IR Illumination - 4 IR LEDs, with supplement light range up to 20m
- Image Enhancement Features - Defog, EIS (electronic image stabilisation), and 3D DNR (3D noise reduction)
- Up to 20 channels simultaneous Live View
- Up to 32 users - with 3 user levels: Administrator, Operator, and User
- Supports a selection of surveillance features - Smart Events, Basic Events, and, Linkage options
- Built-in memory card slot - supports Micro SD/SDHC/SDXC card slot (up to 256 GB)
- Weather Resistant - IP67
- Vandal Resistant - IK10 Impact rating
- Ultra-low start up Temperature, -40°c, with built-in Heater
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision 180° Stitched PanoVu - Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD6924G0-IHS(C) is a 8MP PanoVu camera, with a 180° stitched panoramic design, using 4 sensors, each with 8MP resolution and 2.8mm fixed focal lenses.
Hikvision PanoVu range cameras offer a streamlined surveillance experience, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2CD6924G0-IHS(C) is a part of the Panoramic Stitched series, and offering a 4-sensor design, splicing the sensor FOVs together to create a full 180° wide view, to cover the entire scene.
The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations
Stitched PanoVu cameras also offer 3 different viewing modes, Panorama+ePTZ, Panorama, and, Original mode - each offer different resolution capabilities and features.
| Panorama+ePTZ | Panorama mode | Original mode | |
| Max. Resolution |
Pano channel - 1920x1080 ePTZ channel - 1920x1080 |
3840x1260 | 1920x1080 |
| Frame Rate | Both channels - up to 30fps |
up to 30fps + supported as sub-stream |
up to 30fps |
|
Supported Features |
Target cropping People density (deep learning function) Smart Events |
Rotate mode 3D DNR (3D noise reduction) Defog EIS (electronic image stabilisation) |
Smart Features - To add to the capabilties of video surveillance, the DS-2CD6924G0-IHS(C) is equipped with the use of a selection of security features - Basic events, Smart events, and Linkage options
Basic Events - Motion detection, and, Exception detection (network disconnected, IP address conflict, Illegal login, HDD full, HDD error) - supported in all modes
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Scene change detection, Unattended baggage detection, Audio exception detection, and, Object removal detection - only supported in Panorama mode
Deep Learning Function - People density - only supported in Panorama mode
Linkage - Upload to FTP/NAS/memory card, Notify surveillance centre, Send Email, Trigger alarm, Trigger recording, and, Trigger capture
DORI = Detect, Observe, Recognise, Identify - The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8mm | 32 m | 12.5 m | 6.5 m | 3 m |

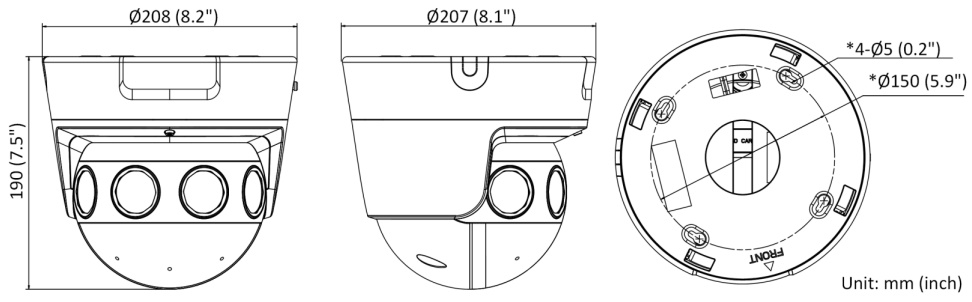

Dimensions
