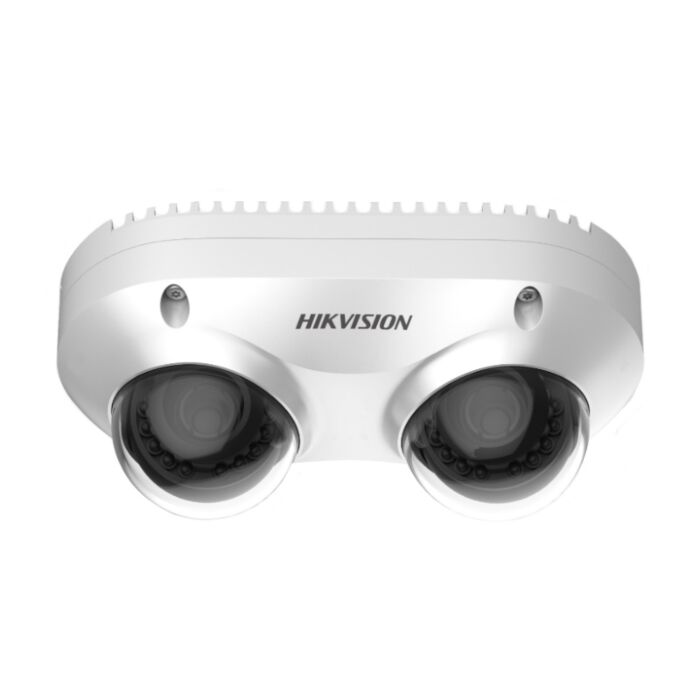

Hikvision DS-2CD6D52G0-IHS 5MP Dual-Directional PanoVu Camera
SKU: DS-2CD6D52G0-IHS
Contact Us for Stock Levels
Key features:
- PanoVu Multi-Directional Camera, with Dual Lens design
- 5MP (2560 x 1920) Image Resolution
- Flexible Lens - Pan: -90° ~ 90° | Tilt: 0° ~ 60° (2.8mm), 0° ~ 70° (4mm / 6mm)
- 120dB WDR (Wide Dynamic Range - for improved detail in challenging lighting conditions)
- IR Illumination - Up to 10m
- Image Enhancement Features - Defog, EIS (electronic image stabilisation), and 3D DNR (3D noise reduction)
- Up to 20 channels simultaneous Live View
- Up to 32 users - with 3 user levels: Administrator, Operator, and User
- Audio - 1 Input, 1 Output, with 2 built-in Microphones
- Supports a selection of surveillance features - Smart Events, Basic Events, and, Linkage options
- Built-in Micro SD/SDHC/SDXC card slot - up to 256 GB
- Weather Resistant - IP67
- Vandal Resistant - IK10 Impact rating
- Operating Conditions - -40°c ~ 60°c, and less than 95% humidity
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Dual-Directional PanoVu - Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD6D52G0-IH(S) is a 5MP PanoVu camera, with a Dual-directional design, avaliable in 3 different lens options.
Hikvision PanoVu range cameras offer a streamlined surveillance experience, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2CD6D52G0-IH(S) is a part of the Dual-directional PanoVu series, and offers a dual-lens design, with flexible Pan and Tilt capabilities, to allow for two separate wide angle views from a single vantage point.
The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations
Smart Features - To add to the capabilties of video surveillance, the DS-2CD6D52G0-IH(S) is equipped with the use of a selection of security features - Basic events, Smart events, and Linkage options
Basic Events - Motion detection, Video tampering alarm, and Exception detection (network disconnected, IP address conflict, Illegal login, HDD full, HDD error)
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection, and, Audio exception detection
Linkage - Upload to FTP/NAS/memory card, or, Send Email
Lens Options and FOV - The DS-2CD6D52G0-IH(S) comes available with a choice of 3 different lens types (2.8mm, 4mm, or, 6mm) - each offer an M12 lens mount, with F1.6 aperture, and different Fields of View.
| Horizontal FOV | Vertical FOV | Diagonal FOV | |
| 2.8mm | 97° | 70° | 128° |
| 4mm | 79° | 57° | 104° |
| 6mm | 49° | 35° | 63° |
DORI = Detect, Observe, Recognise, Identify - The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8mm | 61.1 m | 24.2 m | 12.2 m | 6.1 m |
| 4mm | 85.4 m | 33.9 m | 17.1 m | 8.5 m |
| 6mm | 128.0 m | 50.8 m | 25.6 m | 12.8 m |

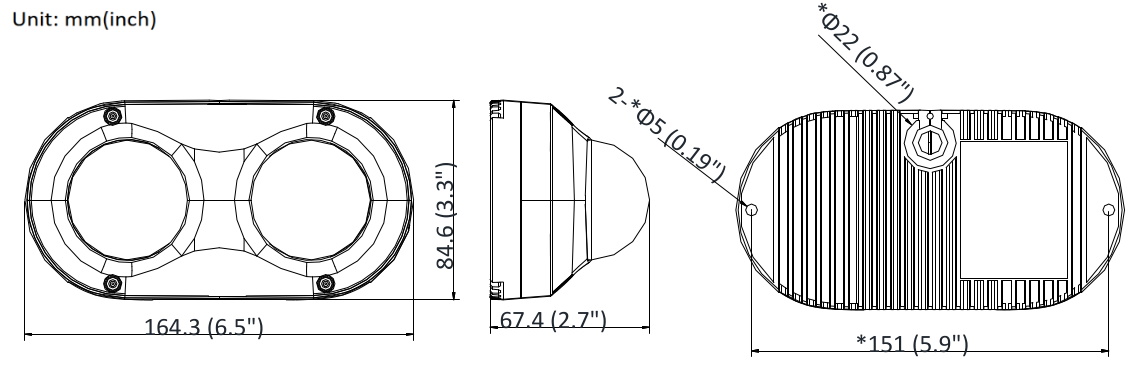

Dimensions
