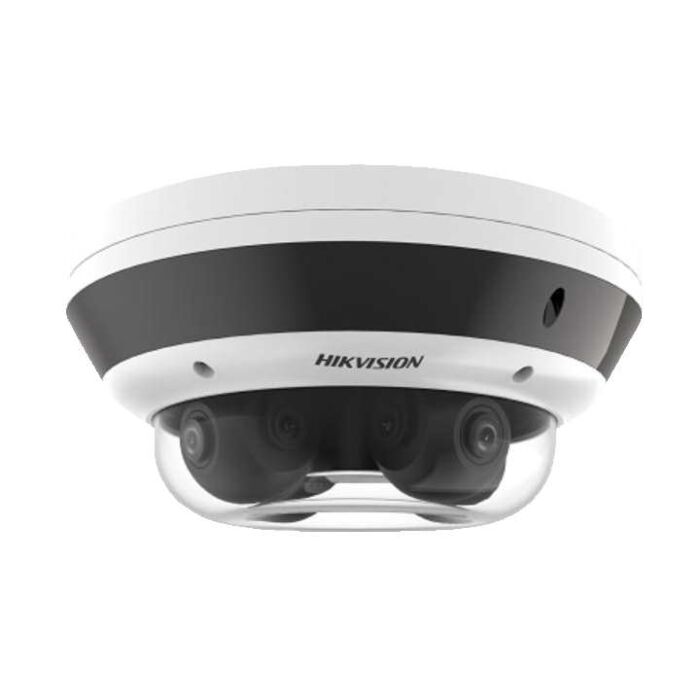

Hikvision DS-2CD6D54G1-IZS Flexible PanoVu Network Camera

Contact Us for Stock Levels

The Hikvision DS-2CD6D54G1-IZS Flexible PanoVu Network Camera complete with four lenses situated on a track allowing users to face each lens in their preferred position.

Each individual lens features a varifocal length of 2.8mm-8mm which offers users even more flexibility for surveillance.

This model is rated weather proof and vandal proof making it a suitable option for public areas such as hotel lobbies, waiting rooms, shopping centers and car parks. The built-in supplement IR lights are situated along the black ring above the dome cover and reach a range of up to 30m providing an adequate amount of light to provide clear images at low light levels.

Smart Events Include: - Line Crossing Detection (up to 4 lines configurable). - Intrusion Detection (up to 4 regions configurable). - Object Removal Detection (up to 4 regions configurable).

The DS-2CD6D54G1-IZS can be powered by either 24 VAC ± 20%, 12 VDC± 20%, reverse polarity reverse polarity protection;​ three-core terminal block or PoE (802.3at, class 4).

Hikvision IP User Manual

Product Datasheets

Hikvision DS-2CD6D54G1-IZS Flexible PanoVu Network Camera Datasheet (2.21MB)

Hikvision Authorised Seller

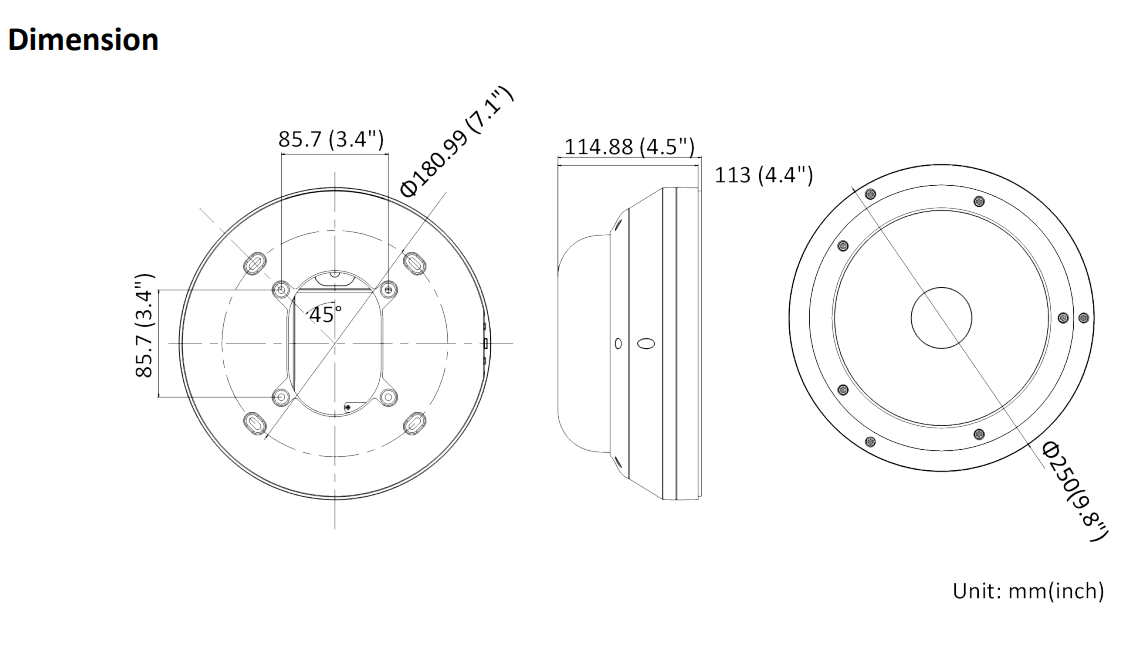

DS-2CD6D54G1-IZS Dimensions

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

- 1/2.7" Progressive Scan CMOS - Varifocal Lens (2.8mm - 8mm) - 2560 x 1920 @ 25 fps - H.265, H.264, H.265+m H.264+ - Up to 30m IR Range - 4 x Flexible Lenses - Digital WDR - IP67 (weather resistant) - IK10 (vandal resistant)

DORI Distance
The DORI (detect, observe, recognise, identify) distance gives the general idea of the cameras ability to distinguish people or objects within its field of view. This is calculated by the sensor specification and the criteria given by EN 62676-4: 2015.

Distance (Wide) Detect: 60m Observe: 23m Recognise: 12m Identify: 6m Distance (Tele) Detect: 120m Observe: 47m Recognise: 24m Identify: 12m
DS2CD6D54G1-IZS Dimenions
Image chip size 1/2.7"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Focus Assist
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 2560 X 1920
Supply Volts 12V DC, 24V AC or PoE
Lens Mount Φ14
Lens Focal Length 2.8~8mm
Viewing Angle 100° - 49° Horizontal Field of View
Aspect ratio 4:3
Supplied with lens Yes
IR Range Up to 30m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 22W
Warranty 3 Years
Launch Date August 2020
