Hikvision DS-2CD6D82G0-IHS 8MP Dual-Directional PanoVu Camera
SKU: DS-2CD6D82G0-IHS ~ EOL
Out of stock
The DS-2CD6D82G0-IHS is now End of Life.
Please feel free to browse our Hikvision category to find a suitable replacement.
Key features:
- PanoVu Multi-Directional Camera, with Dual Lens design
-8MP (3840 x 2160) Image Resolution
- Flexible Lens - Pan: -90° ~ 90° | Tilt: 0° ~ 60° (2.8mm), 0° ~ 70° (4mm / 6mm)
- 120dB WDR (Wide Dynamic Range - for improved detail in challenging lighting conditions)
- IR Illumination - Up to 10m
- Image Enhancement Features - Defog, BLC, HLC, EIS, and 3D DNR
- Up to 20 channels simultaneous Live View
- Up to 32 users - with 3 user levels: Administrator, Operator, and User
- Audio - 1 Input, 1 Output, with 2 built-in Microphones
- Supports a selection of surveillance features - Smart Events, Basic Events, and, Linkage options
- Built-in Micro SD/SDHC/SDXC card slot - up to 256 GB
- Weather Resistant - IP67
- Vandal Resistant - IK10 Impact rating
- Operating Conditions - -40°c ~ 60°c, and less than 95% humidity (non-condensing)
This product is powered by 12 VDC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Camera User Manual
Hikvision Dual-Directional PanoVu - Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2CD6D82G0-IH(S) is a 8MP PanoVu camera, with a Dual-directional design, available in 3 different lens options.
Hikvision PanoVu range cameras offer a streamlined surveillance experience, with a selection of different multi-directional camera designs (including; Panoramic stitched 180°/360°, Flexible 4 individual sensors, PanoVu mini, and Dual-directional)
The DS-2CD6D82G0-IH(S) is a part of the Dual-directional PanoVu series, and offers a dual-lens design, with flexible Pan and Tilt capabilities, to allow for two separate wide angle views from a single vantage point.
The most suitable application environments for Dual-directional PanoVu cameras include; Hallways, Walkways, Retail, and, Cashier Stations
Smart Features - To add to the capabilties of video surveillance, the DS-2CD6D82G0-IH(S) is equipped with the use of a selection of security features - Basic events, Smart events, and Linkage options.
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection, Audio exception detection.
Basic Events - Motion detection, Video tampering alarm, Exception (network disconnected, IP address conflict, Illegal login, HDD full, HDD error)
Linkage - Upload to FTP/NAS/memory card, Notify surveillance centre, Send Email.
Lens Options and FOV - The DS-2CD6D82G0-IH(S) comes available with a choice of 3 different lens types (2.8mm, 4mm, or, 6mm) - each offer an M12 lens mount, with F2.0 aperture, and different Fields of View.
| Horizontal FOV | Vertical FOV | Diagonal FOV | |
| 2.8mm | 103° | 53° | 124° |
| 4mm | 79° | 41° | 94° |
| 6mm | 50° | 27° | 58° |
DORI = Detect, Observe, Recognise, Identify - The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| 2.8mm | 105.4m | 41.8m | 21.1m | 10.5m |
| 4mm | 123.5m | 49m | 24.7m | 12.3m |
| 6mm | 181.5m | 72m | 36.3m | 18.1m |

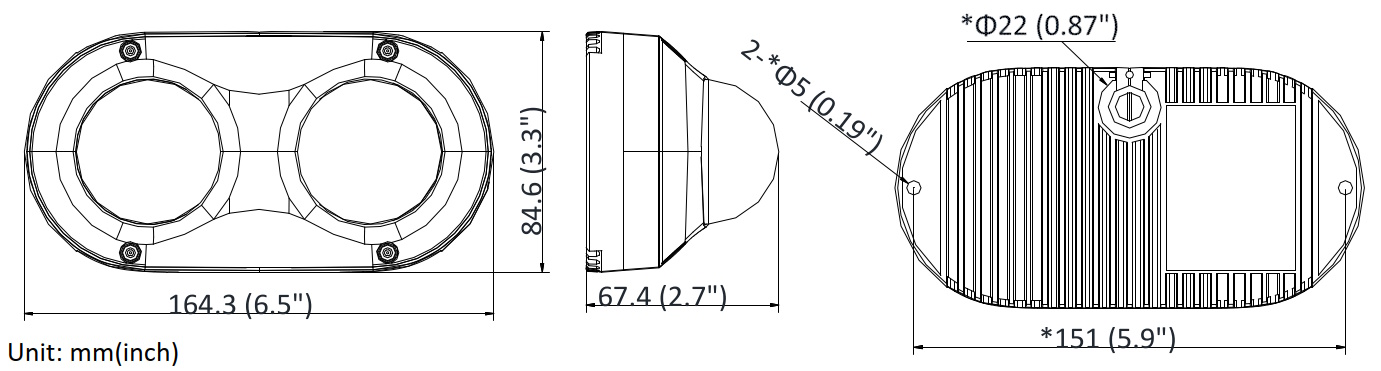

Dimensions:
