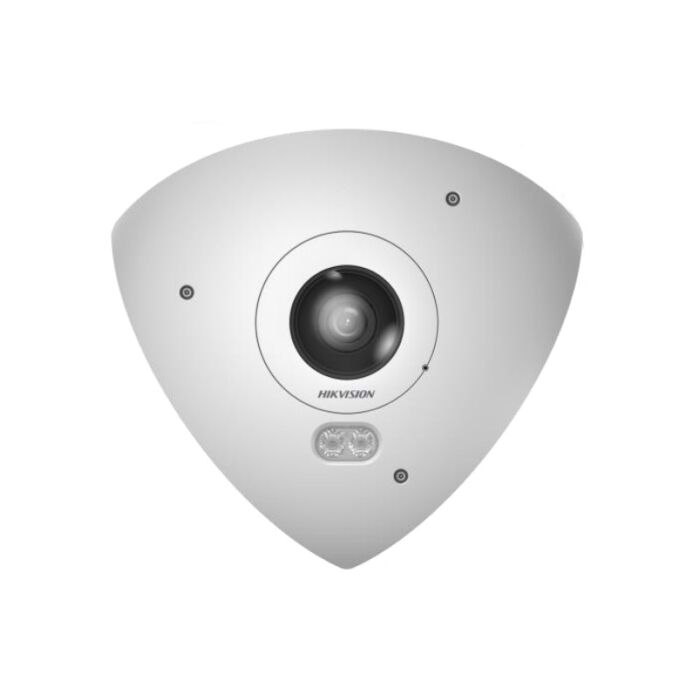

Hikvision DS-2CD6W45G0-IVS 4MP Corner Mount Anti Ligature IR Network Fisheye Camera

Due
SKU
DS-2CD6W45G0-IVS

Key Features

4MP Fisheye Camera

2400 x 1800 @ 25fps

Built-In Microphone

Audio Input and Output Line

Alarm Input and Output Line

Up-To 10m IR Range

120 dB WDR

IP67 Water and Dust Resistant Rating

IK10 Vandal Resistant Rating

1/2" Progressive Scan CMOS

2mm Focal Length

135° Horizontal Field of View

Built In Micro SD/SDHC/SDXC Slot

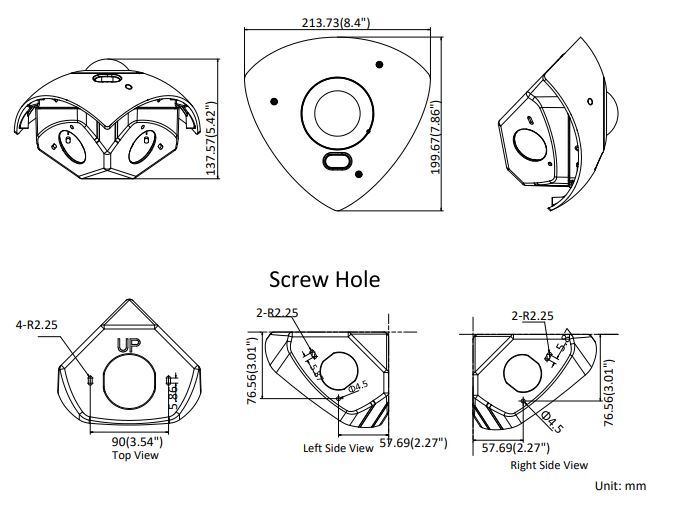

Dimensions: 213.73mm x 199.67mm x 137.57mm




Hikvision Product Catalogue

Hikvision Network Camera User Manual

Product Datasheets

Hikvision DS-2CD6W45G0-IVS 4MP Corner Mount Anti Ligature IR Network Fisheye Camera Datasheet (1.04MB)

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera



Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

  1. Hikvision DS-2CD6W45G0-IVS 4MP Outdoor IR Network Fisheye Camera
  2. +
  3. XeLAN Cat6 UTP Patch Lead 1m - Grey 4001-0001
  4. +
  5. Level One POI-2002 Single Port POE Injector
Total price: £0.00INCL VAT
Ex Vat: £0.00

The Hikvision DS-2CD6W45G0-IVS is a 4 megapixel network camera with a fisheye lens. The fisheye lens has a 2mm focal length and is able to produce a horizontal field of view of 135°. It has been designed to provide 24/7 surveillance in areas that require increased safety.

Rated IP67, the DS-2CD6W45G0-IVS can withstand water and dust ingress, making it suitable for use indoors or outdoors.  With the anti-ligature design and IK10 rating, the fisheye camera is impact resistant, thanks to the strong casing, the DS-2CD6W45G0-IVS is safe to use in environments where it could be subject to vandalism or knocks from heavy machinery or vehicles.

Smart Features

  • Behavior Analysis - Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection and Object Removal Detection.
  • Exception Detection - Audio Exception Detection
  • Region of Interest - Four Fixed Regions for Main Stream and Sub-Stream

On-board the DS-2CD6W45G0-IVS is integrated 980 nm LEDs which offer invisible IR functionality, providing supplement illumination for up to 10 metres in zero light conditions. Image quality during the daytime is also supported by 120 dB Wide Dynamic Range, aiding the camera to produce quality images during contrasting of fast changing light scenarios.

Also upon the camera is a built-in microphone to allow users to record conversations for an added depth of security surveillance, a micro SD/SDXC/SDHC card slot to support on-board recording, and both Audio and Alarm input and output lines to enable users to connect third party devices to the DS-2CD6W45G0-IVS such as speakers and sirens.

DORI Detect Observe Recognise Identify
Distance (2mm) 43.2m 17.2m 8.6m 4.3m

The DORI distance provides users with an overall estimate of the cameras ability to distinguish people or objects within it's field of view. This is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

We recommend that the DS-2CD6W45G0-IVS is powered via POE to simplify the installation process as only one network cable is required to provide the camera with both a power and data source, known as Power Over Ethernet. However, the camera can also be powered via a 12V DC mains supply if required. Please note that the DS-2CD6W45G0-IVS is not sold with a power supply.

From use-IP - "Whilst FishEye cameras do serve a purpose, they are a very niche tool and if used in the wrong scenario they can provide disappointing results. If you would like any advice on camera selections, please do not hesitate to contact our sales team on sales@use-ip.co.uk".

Specs
Image chip size 1/2"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio I/O, Built-in Microphone
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 0 (0.44-12.95W)
Max. Resolution N/A
Supply Volts 12V DC or PoE
Lens Mount M12 mount
Lens Focal Length 2.0mm
Viewing Angle 135° Horizontal Field of View
Aspect ratio 4:3
Megapixels 4 MP
Supplied with lens Yes
IR Range Up to 10m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 11W
Warranty 3 Years
Launch Date September 2021
