383.81

Hikvision DS-2DE4220IW-DE 2MP 20X PTZ Camera

Availability: Contact Us for Stock Levels

£383.81 Incl VAT Excl VAT. £319.84

Hikvision DS-2DE4220IW-DE

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2DE4220IW-DE is a 2MP PTZ camera which is able to capture high quality images in low light environment with its black anti-reflective glass. With a 4.7mm - 94mm focal length the DS-2DE4220IW-DE offers 20x optical zoom.

This camera also offers 100m IR range and audio I/O's allowing the user to connect external microphones or speakers. The DS-2DE4220IW-DE uses a range of features to enhance images such as Dynamic Wide Dynamic Range (DWDR), 3D Digital Noise Reduction (3D DNR) and Highlight/Back Light Compensation (HLC/BLC).

This PTZ supports 300 presets, 4 pattern scans and 8 patrols. It also includes smart features such as intrusion detection, line crossing detection and motion detection.

The DS-2DE4220IW-DE can be powered by 12VDC power supply or 15W PoE and has a built in micro SD card slot. This PTZ can be accessed and controlled remotely through a browser or the Hik-Connect app.


PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

Hikvision E Series Network Speed Dome User ManualHikvision Product CatalogueHikvision Quick Guide

Product Datasheets

Hikvision DS-2DE4220IW-DE 2MP 20X PTZ Camera Datasheet (0.81MB)


DS-2DE4220IW-DE BANNER


R7 Family Badge

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Key Features

- 1/2.8" Progressive Scan CMOS
- 1920x1080
- Support H.265 Video Compression
- 20x Optical Zoom
- DWDR
- 3D Intelligent positioning function
- Support EZVIZ cloud P2P
- Up to 100m IR distance
- Supports H.265

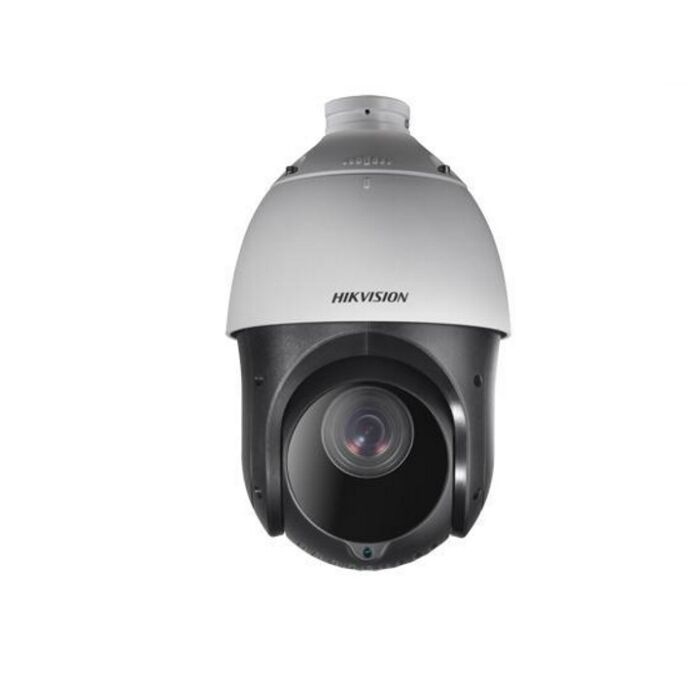

 Hikvision DS-2DE4220IW-D 2MP H.265 20X Network IR PTZ Dome Camera


4.7mm - 94mm: Horizontal field of view: 58.3° to 3.2°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


PTZ Camera Codes

PTZ naming rule

Additional Information

Weight 2000.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265,H.264,MJPEG
Audio N/A
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
Max. Resolution 1920 X 1080
Min. low-light lux 0.01
Supply Volts 12V DC
Lens Mount remote focus & zoom
Lens Focal Length 4.7~94mm
Viewing Angle Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
IR Range Up to 100m
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max. 20W
Warranty 2 Years
Launch Date Winter 2015
