Hikvision DS-2DE4A204IW-DE 2MP 4X Mini PTZ Camera

Availability: Out of stock

Hikvision DS-2DE4A204IW-DE ~ EOL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The DS-2DE4A204IW-DE is now End of Life.

May we recommend the Hikvision DS-2DE4A225IW-DE as replacement or please feel free to browse our Hikvision category.

The Hikvision DS-2DE4A204IW-DE is a 2MP PTZ with a 2.8mm-12mm lens that offers 4x optical zoom and 16x digital zoom. This PTZ is designed to work well in low light environments with the use of image enhancers such as wide dynamic range (WDR), back light compensation (BLC) and 3D digital noise reduction (3D DNR) technology. Built-in IR LEDs allow recording in complete darkness up to 50m.

The DS-2DE4A204IW-DE is a great choice for external applications with IP66 rated weatherproof housing and the option for external microphones/speakers to be connected. This PTZ supports 300 presets, 8 patrols and 4 pattern scans. It is also loaded with a range of smart features to improve security such as intrusion detection, line crossing detection and region entrance/exit detection.

There is an on-board SD card slot which can be utilised along with H.265+ compression; offering a huge saving on bandwidth and storage usage. This camera can be powered via a 12VDC power supply or a PoE+ injector. Remote access is possible through the Hik-Connect app or via a browser.

Hikvision Product CatalogueHikvision Quick GuideUser Manual

Product Datasheets

Hikvision DS-2DE4A204IW-DE 2MP 4X Mini PTZ Camera Datasheet (0.91MB)

4a204iw-de banner

R7 Banner

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together


Key Features

- 2MP
- 2.8mm - 12mm lens
- Ultra low light
- 4 x optical zoom
- 16 x digital zoom
- IP66 rated weatherproof housing
- 3D DNR
- Smart IR effective up to 50m
- H.265+/H.265

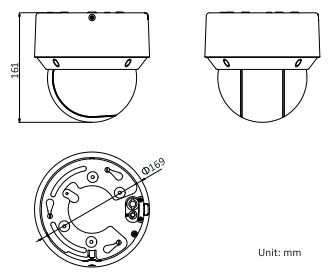

4A204IW-DE dimensions

2.8mm - 12mm: Horizontal field of view: 90.1° to 31°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Lux Levels - For more information on Lux Levels please look here. Lux levels

PTZ Camera Codes

PTZ naming rule

Additional Information

Weight 2450.0000
Image chip size 1/1.9"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount remote focus & zoom
Lens Focal Length 2.8~12mm
Viewing Angle Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 50m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max.18W
Warranty 3 Years
Launch Date Spring 2018
