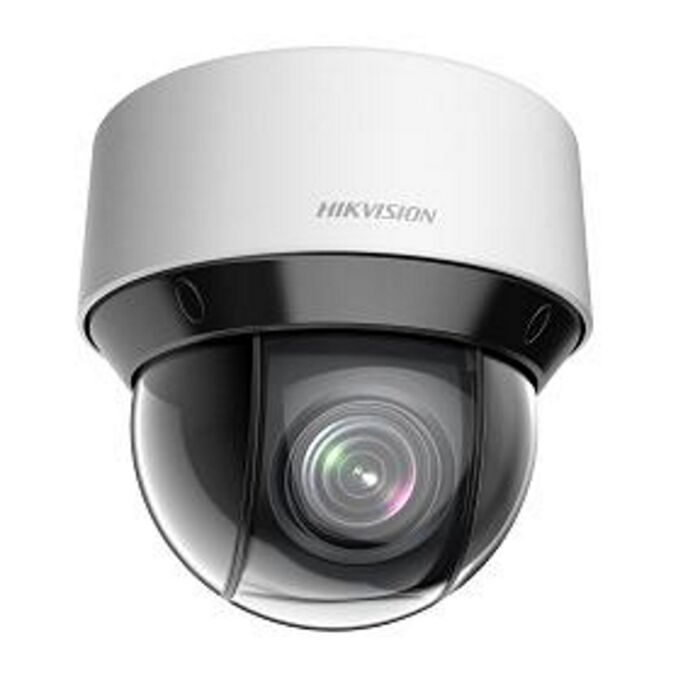

Hikvision DS-2DE4A220IW-DE 2MP 20x Mini PTZ Camera

Availability: Out of stock

Hikvision DS-2DE4A220IW-DE

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The DS-2DE4A220IW-DE is a mini PTZ from Hikvision with 2MP resolution and a 25fps max frame rate. With a 4.7mm-94mm focal length this camera offers 20x optical zoom and built in IR LEDs that provide clear night-time images up to 50m.

The DS-2DE4A220IW-DE is fitted with IP66 rated weatherproof housing and audio/alarm I/Os. It also utilises a range of features to improve image quality such as wide dynamic range (WDR), back light compensation (BLC) and 3D digital noise reduction (3D DNR).

This camera supports 300 presets, 8 patrols and 4 patterns with access for up to 32 users. The DS-2DE4A220IW-DE has a built-in micro SD card slot and can be powered through a 12VDC power supply or 18W PoE injector. Remote access is possible through a browser or through the Hik-Connect app.

Hikvision Product CatalogueHikvision Quick GuideUser Manual

Product Datasheets

Hikvision DS-2DE4A220IW-DE 2MP 20x Mini PTZ Camera Datasheet (0.59MB)


DS-2DE4A220IW-DE banner


R7 Banner


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

+
+
+
+

Key Features

- 2MP (1920 x 1080) resolution
- 4.7 ~ 94mm vari focal lens
- 20x optical zoom, 16x digital zoom
- Wide dynamic range
- 3D digital noise reduction
- smart IR
- up to 50m IR distance
- 12VDC and POE


DS-2DE4A220IW-DE dimensions

4.7mm - 94mm: Horizontal field of view: 61.4° to 2.9°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


PTZ Camera Codes

PTZ naming rule

Additional Information

Weight 2450.0000
Image chip size 1/2.8"
Image chip type Progressive CMOS
Image Compression MJPEG & H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class PoE Plus (802.3at)
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount auto-focus zoom lens
Lens Focal Length 4.7~94mm
Viewing Angle 61.4° to 2.9°
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
IR Range Up to 50m
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max.18W
Warranty 3 Years
Launch Date Autumn 2016
