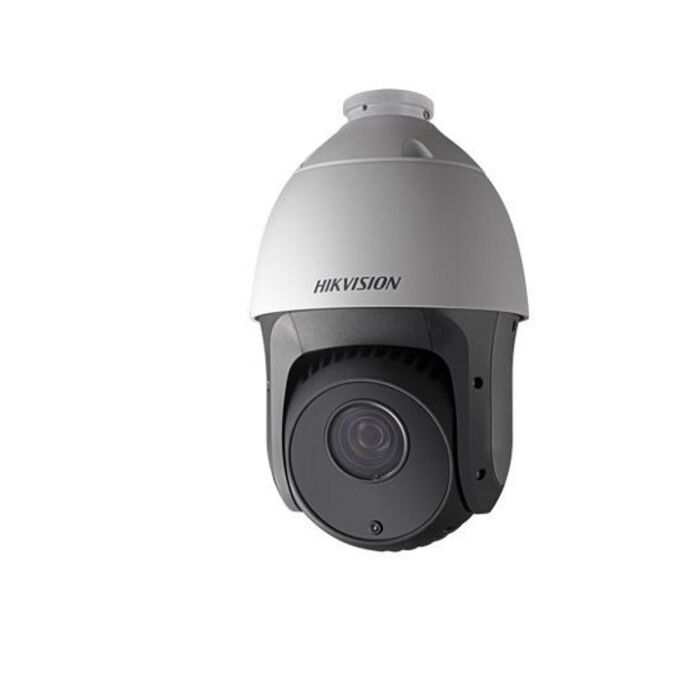

Hikvision DS-2DE5120I-AE 1.3MP 20X PTZ Dome Camera

Contact Us for Stock Levels
DS-2DE5120I-AE ~ EOL
£554.99 £462.49

The DS-2DE5120I-AE is now End of Life.

May we recommend the Hikvision DS-2DE4225IW-DE as replacement or please feel free to browse our Hikvision category.

The Hikvision DS-2DE5120I-AE is a 1.3MP PTZ Dome Camera is able to capture high quality images in low light environment with its black anti-reflective glass. With a 2.9mm - 94mm focal lens this camera offers a 58.3° to 3.2° viewing angle and 20x optical zoom. The DS-2DE5120I-AE has infra-red LEDs that are effective up to 150m along with Audio/Alarm I/Os. This camera uses a range of features to improve images day and night such as digital wide dynamic range (DWDR), 3D digital noise reduction (3D DNR) and Highlight/Backlight comepnsation (HLC/BLC). This PTZ camera supports 300 presets, 8 patrols and a variety of scheduled tasks. It also supports a range of smart features such as intrusion detection, line crossing detection and motion detection. The DS-DE5120I-AE has a built-in micro SD card slot and can be powered by a 24VAC power supply or by PoE plus (30W). Remote access is possible through a browser or through the Hik-Connect app.

PLEASE NOTE: This product may not be available for next working day delivery. Contact us for stock levels.

Hikvision Product Catalogue Hikvision Quick Guide User Manual

Product Datasheets

Hikvision DS-2DE5120I-AE 1.3MP 20X PTZ Dome Camera Datasheet (0.79MB)

5120-ae banner

R0 Family Badge

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2DE5120I-AE 2MP 20X Network IR PTZ Dome Camera
  2. +
  3. Hikvision DS-POE-60W PoE Injector for Hikvision PTZ
  4. +
  5. Hikvision DS-UK-PSU 24V AC Power Supply for PTZ camera
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 1/2.8" Progressive Scan CMOS
-1280 x 960
- 20x Optical Zoom
- 3D Intelligent Positioning Function
- Support EZVIZ Cloud P2P
- Up to 150m IR Distance
- PSU not included
- Support BNC Output

Hikvision DS-2CD5220I-AE

4.7mm - 94mm: Horizontal field of view: 58.3° to 3.2°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Lux Levels - For more information on Lux Levels please look here. Lux levels

PTZ Camera Codes

PTZ naming rule

Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.264 & Motion JPEG
Audio G.711/G.722/G.726
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class PoE Plus (802.3at)
Max. Resolution 1280 X 960
Min. low-light lux 0.002
Supply Volts 24V AC, PoE+
Lens Mount remote focus & zoom
Lens Focal Length 4.7~94mm
Aspect ratio 16:9
Megapixels 1.3 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
IR Range Up to 150m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 30W
Warranty 2 Years
Launch Date Winter 2015
