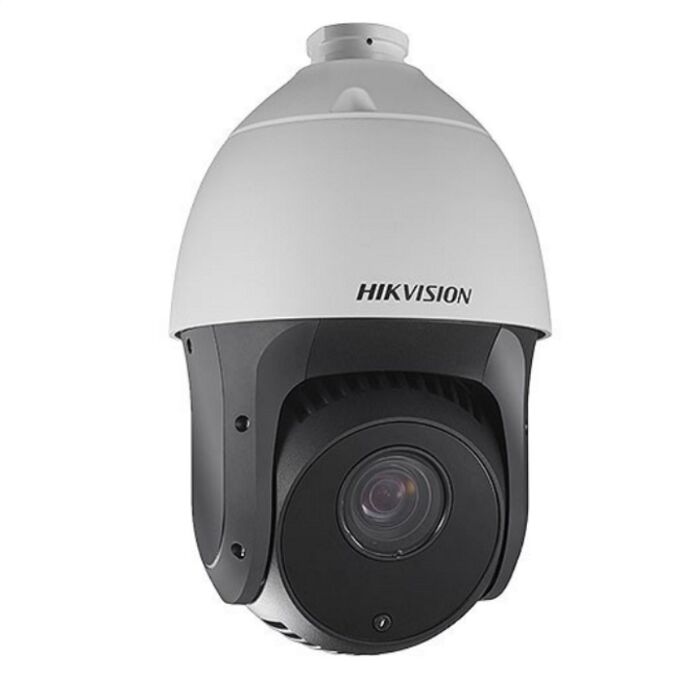

Hikvision DS-2DE5220IW-AE 2MP 20x PTZ Dome Camera

Contact Us for Stock Levels
£568.80 £474.00

The DS-2DE5220IW-AE is now End of Life.

May we recommend the Hikvision DS-2DE5225IW-AE as replacement or please feel free to browse our Hikvision category.

The Hikvision DS-2DE5220IW-AE is a 2MP PTZ Dome Camera is able to capture high quality images in low light environment with its black anti-reflective glass. With a 4.7mm - 94mm focal lens this camera offers a 58.3° to 3.2° viewing angle and 20x optical zoom. The DS-2DE5220IW-AE has infra-red LEDs that are effective up to 150m along with Audio/Alarm I/Os. This camera uses a range of features to improve images day and night such as digital wide dynamic range (DWDR), 3D digital noise reduction (3D DNR) and Highlight/Backlight comepnsation (HLC/BLC). This PTZ camera supports 300 presets, 8 patrols and a variety of scheduled tasks. It also supports a range of smart features such as intrusion detection, line crossing detection and motion detection. The DS-DE5220IW-AE has a built-in micro SD card slot and can be powered by a 24VAC power supply or by PoE plus (30W). Remote access is possible through a browser or through the Hik-Connect app.

PLEASE NOTE: This product may not be available for next working day delivery. Contact us for stock levels.

Hikvision Product CatalogueHikvision Quick GuideUser Manual

Product Datasheets

Hikvision DS-2DE5220IW-AE 2MP 20x PTZ Dome Camera Datasheet (0.74MB)

DS-2DE5220IW-AE banner

R7 Banner

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Frequently bought together

  1. Hikvision DS-2DE5220IW-AE 2MP IR PTZ Dome Camera
  2. +
  3. Hikvision DS-POE-60W PoE Injector for Hikvision PTZ
  4. +
  5. Hikvision DS-1602ZJ-CORNER Wall Mount Corner Bracket
  6. +
  7. Hikvision DS-UK-PSU 24V AC Power Supply for PTZ camera
  8. +
  9. Hikvision DS-1602ZJ Wall Mount Bracket
  10. +
  11. Hikvision DS-1602ZJ Pole Wall Mount Bracket
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 1/2.8" Progressive Scan CMOS
- 4.7mm ~ 94mm varifocal lens
- 2MP (1920 x 1080) resolution
- 20x optical zoom
- Digital wide dynamic range
- 3D intelligent positioning function
- Up to 150m IR distance
- Hi-PoE/ 24VAC Power supply
- Support BNC output

DS-2DE5220IW-AE dimensions

4.7mm - 94mm: Horizontal field of view: 58.3° to 3.2°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Lux Levels - For more information on Lux Levels please look here. Lux levels

PTZ Camera Codes

PTZ naming rule

Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression MJPEG & H.264
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Outdoor
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class PoE Plus (802.3at)
Max. Resolution 1920 X 1080
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount N/A
Lens Focal Length 4.7~94mm
Viewing Angle 58.3-3.2° Horizontal Field of View
Aspect ratio 16:9
Megapixels 2 MP
Supplied with lens Yes
Accepts auto-iris lens No
IR Range Up to 150m
Max. Images per second 25
PSU included Yes
ONVIF Compatible Yes
Warranty 3 Years
Launch Date Autumn 2016
Write Your Own Review
You're reviewing:Hikvision DS-2DE5220IW-AE 2MP 20x PTZ Dome Camera
Your Rating
Customer Questions
Signal to noise ratio of it?
