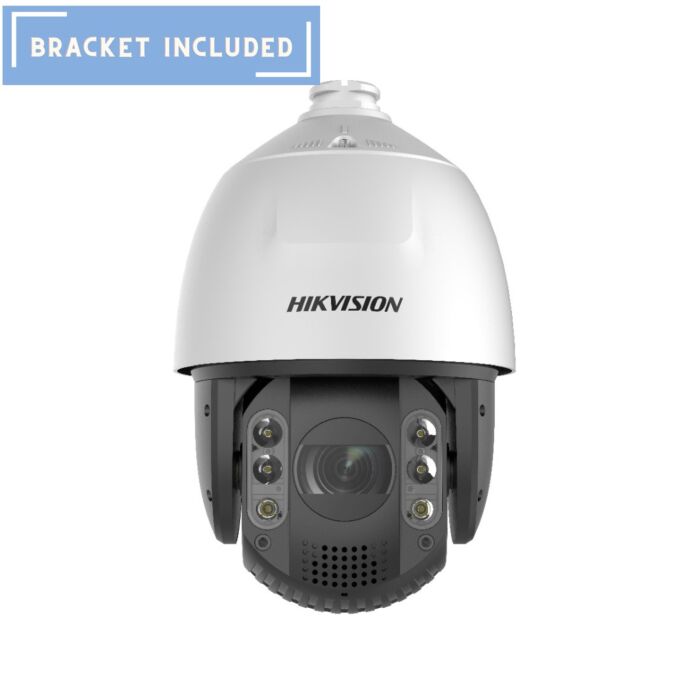

Hikvision DS-2DE7A232IW-AEB(T5) 7" 2MP 32x IR Speed Dome Camera
SKU: DS-2DE7A232IW-AEB(T5)
In stock
Key Features:
- 1/2.8" progressive scan CMOS
- High-quality 2MP resolution
- Excellent low-light performance
- Powered by Darkfighter technology
- Audiovisual alarm
- 32x optical zoom and 16x digital zoom
- Up to 200m IR distance
- Human and vehicle target classification
- Deep learning algorithms
- Face capture: up to 5 faces captures at one time
PLEASE NOTE: This product comes with the DS-1602ZJ Wall Mount Bracket included.
This product can be powered by 24V AC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Speed Dome Camera User Manual
Hikvision DS-2DE7A232IW-AEB(T5) Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be available for Next Working Day Delivery.
Please contact us before purchasing if you need this item urgently.
Useful Hikvision Tools
SADP Download
IE Tab Download
Hik-Connect
Details
The Hikvision DS-2DE7A232IW-AEB(T5) is a 2-megapixel speed dome camera that features a 32x optical zoom and 16x digital zoom. The camera is able to produce high-quality images over vast areas in both day and night applications thanks to the units IR LEDs which are effective up to 200m.
With an IP66 rated weather-resistant housing, the unit can be used outside whilst being protected against both rain and dust. This camera can be used in a range of applications that require wide areas of coverage including roads, train stations, airports, city centres, shopping centres, parks and concert venues etc.
Empowered by deep learning algorithms and Hikvision AcuSense technology, human and vehicle target classification alarms are brought to front and back end devices. The DS-2DE7A232IW-AEB(T5) focuses on human and vehicle targets which greatly improves alarm efficiency and effectiveness, thus reducing false alarms.
Other Features:
- Basic event: motion detection, video tampering alarm, alarm input and output
- Smart event: line crossing detection, intrusion detection, region entrance and exit detection, unattended baggage detection, object removal detection, audio exemption detection
- Smart tracking: manual tracking, auto-tracking
- Face capture: supports detecting, capturing, grading, selecting a face in motion, and outputting the best picture of the face
- Perimeter protection: line crossing, intrusion, region entrance, region exit, supports alarm triggering by specified target types (human and vehicle)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 2200m | 873m | 440m | 220m |
