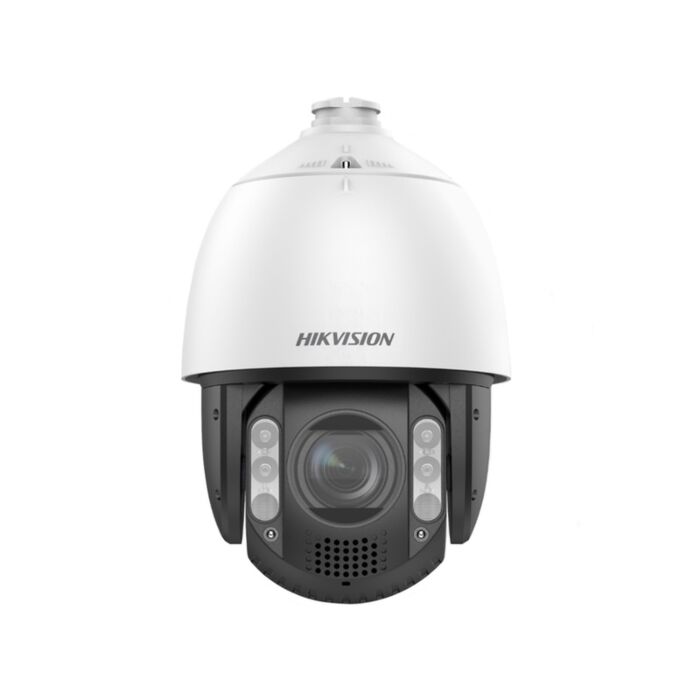

Hikvision DS-2DE7A412MCG-EB 7-inch 4MP ColorVu Network Speed Dome
SKU: DS-2DE7A412MCG-EB
In Stock
Key features:
- 4MP (2560x1440) Image Resolution
- 24/7 Colour Imaging, with ColorVu Technology
- PTZ Capabilities | Pan range - 360° | Tilt range - -15° ~ 90° (auto flip) | Zoom - 12x optical zoom, 16x digital zoom
- 6.7mm ~ 80.4mm Lens
- Supports Auto, Semi-auto, and Manual Focus
- IR Illumination - up to 150m | White Light distance - up to 100m
- 120dB WDR (Wide Dynamic Range) - for improved visibility in challenging lighting conditions
- Image Enhancement - BLC, HLC, 3DNR, Digital Defog, and, EIS
- Supports Audio-Visual alarms - white flashing light and audible warning
- Analytics for human and vehicle Target Classification, based on Deep Learning
- Supports Face Capture - up to 5 faces at one time
- Vandal Resistant - IK10 Impact rating (excluding glass window)
- Weather Resistant - IP66 Ingress protection
- Operating Conditions | Temperature - -30°c ~ 65°c | Humidity - 90% or less (non-condensing)
- Equipped for use in a variety of Outdoor applications
This product can be powered by 24V AC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Speed Dome - User Manual
Hikvision Network Speed Dome - Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The DS-2DE7A412MCG-EB is a 7-inch PTZ camera from Hikvision, equipped with a 6.7mm ~ 80.4mm varifocal lens, and capable of 4MP resolution, 12x Optical zoom, and 24/7 colour imaging (using Hikvision's ColorVu technology)
Also featuring a selection of Image Enhancement technologies, and support for Smart features / Deep learning functions, the DS-2DE7A412MCG-EB is well equipped for a range of video surveillance applications, offering impressive image quality, performance, and capabilities.
Impressive Image Quality
With technologies in place for image enhancement, and features for improved performance in challenging lighting conditions, the DS-2DE7A412MCG-EB provides continuous impressive performance for effective surveillance footage at all times. Supported features / technologies include:
Supplement Light - with IR Illumination up to 150m, and White Light up to 100m
Day/Night Modes - for impressive image quality 24/7. Supports Auto, and Scheduled switching between modes
Image Enhancement - BLC (backlight compensation), HLC (highlight compensation, and, 3DNR (3D noise reduction) for improved image quality, reducing strong backlight, brightness, and 'noise' interference
120dB WDR (Wide Dynamic Range) - equipped to improve image visibility in challenging lighting conditions - scenes with extremely bright or dark lighting - keeping footage as detailed and clear as possible at all times
Other features - Digital Defog, EIS (electronic image stabilisation), Regional Exposure, Regional Focus, and Image Settings
PTZ Capabilities
Pan Range - 360° | Pan Speed - configurable from 0.1°/s ~ 160°/s (preset speed - 240°/s)
Tilt Range - -15° ~ 90° (auto flip) | Tilt Speed - configurable from 0.1°/s ~ 120°/s (preset speed - 200°/s)
The DS-2DE7A412MCG-EB also features support for Proportional Pan, up to 300 Presets, 8 Patrol scans (with up to 32 presets for each patrol), 4 Pattern scans, Power-off memory, 3D positioning, PTZ status display, Preset freezing, Park actions (listed below), and, Scheduled tasks (listed below)
Park Actions - Preset, Patrol scan, Pattern scan, Auto-scan, Tilt scan, Random scan, Frame scan, and, Panorama scan
Scheduled Tasks - Preset, Pattern scan, Patrol scan, Auto-scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Dome adjust, and, Aux output
Smart Features and Deep Learning Functions
Basic Events - Motion detection, Video tampering alarm, Exception detection, Alarm input, and Alarm output
Smart Events - Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, and, Audio exception detection
Smart Tracking - Features support for Manual tracking and Auto-tracking
Alarm Linkage - Upload footage to FTP/NAS/memory card, Notify surveillance center, Send Email, Trigger alarm output, Trigger recording, Audible warning, White light flashing, and PTZ actions (preset, patrol scan, and pattern scan)
Deep Learning Functions - Face Capture (detects up to 5 faces simultaneously, and supports detecting, capturing, grading, selecting of face in motion, and output of best face image), and, Perimeter Protection (supports line crossing, region entrance, and, region exiting)
DORI - Detect, Observe, Recognise & Identify
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (tele) | 744.8m | 295.6m | 149m | 74.5m |

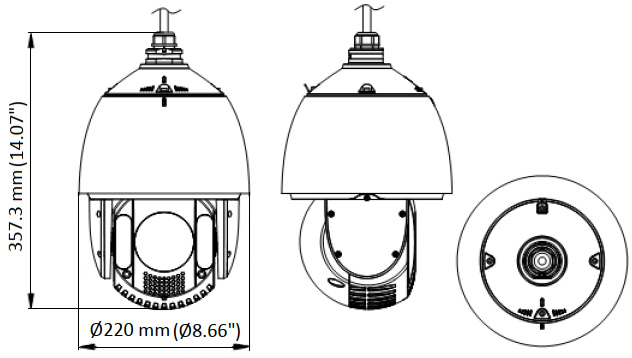

Dimensions
