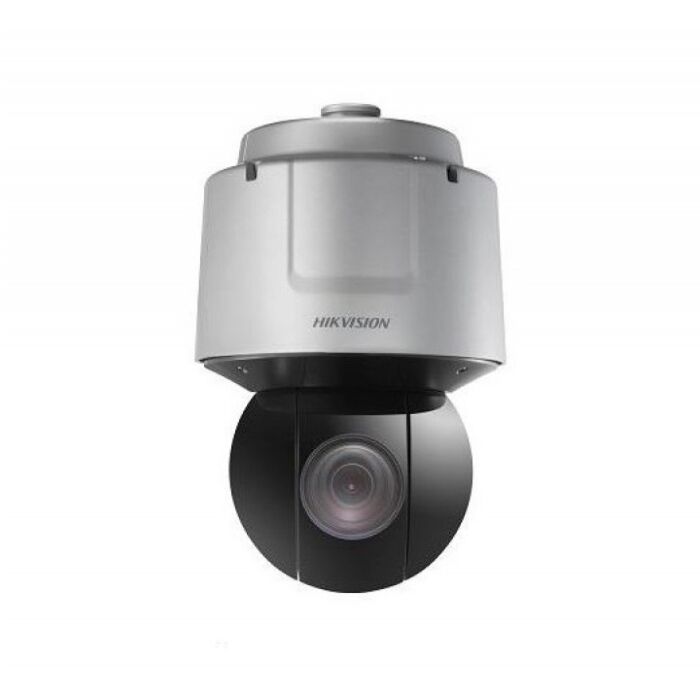

Hikvision DS-2DF6A836X-AEL 8MP 36x Network Speed Dome Camera

Availability: Contact Us for Stock Levels

Hikvision DS-2DF6A836X-AEL

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

Quick Overview

The Hikvision DS-2DF6A836X-AEL is an 8 megapixel 36x network speed dome camera with a 36x optical zoom lens, this camera is able to provide clear images with great detail over large areas.

This camera is packed full of advanced features including
Perimeter detection
- Line crossing
- Region entrance
- Region exiting
- Alarm triggering by target types
Event detection
- Unattended baggage detection
- Object removal detection
- Face detection
- Audio exception detection
Smart tracking
- Manual tracking
- Auto tracking
- Event tracking


PLEASE NOTE: This product may not be available for next working day delivery.

Contact us for stock levels.

Hikvision Product Catalogue Hikvision Quick Guide

Product Datasheets

Hikvision DS-2DF6A836X-AEL 8MP 36x Network Speed Dome Camera Datasheet (0.82MB)


6a836x Features


H3 badge


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Key Features

- 2/3" progressive scan CMOS
- Up to 4096 x 2160 resolution
- Min. illumination; colour 0.005 lux @ F1.5, AGC ON, B/W 0.0005 lux
- 36× optical zoom, 16× digital zoom
- Digital WDR, 3D DNR, HLC, BLC, Defog, EIS
- 24 VAC &Hi-PoE
- Support H.265+/H.265 video compression
- Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- IK10, IP67

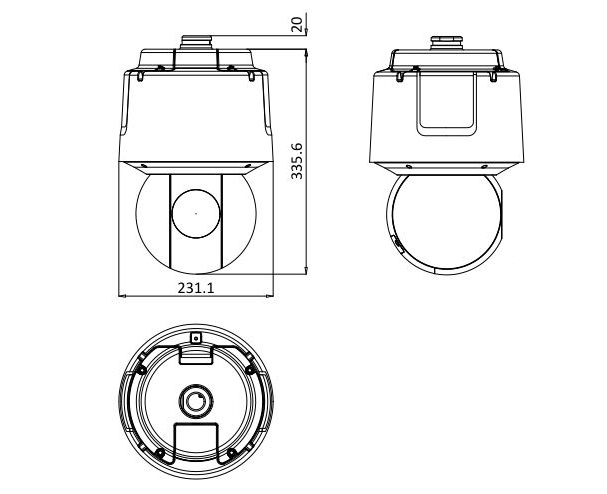

6a236x-ael dimensions


7.5mm - 270mm: Horizontal field of view: 56.1° to
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here. Lux levels


PTZ Camera Codes

PTZ naming rule

Additional Information

Weight 6000.0000
Image chip size 2/3"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP67
Colour / monochrome True Day/Night
POE built-in Yes
Max. Resolution 4096 X 2160
Min. low-light lux 0.005
Supply Volts 24V AC, PoE+
Lens Mount optical zoom lens
Lens Focal Length 7.5 ~ 270mm
Viewing Angle 56.1° ~ 2.0° Horizontal Field of View
Aspect ratio 16:9
Megapixels 8 MP
Supplied with lens Yes
Max. Images per second 25
ONVIF Compatible Yes
Power Consumption max 60W
Warranty 3 Years
Launch Date Autumn 2018
