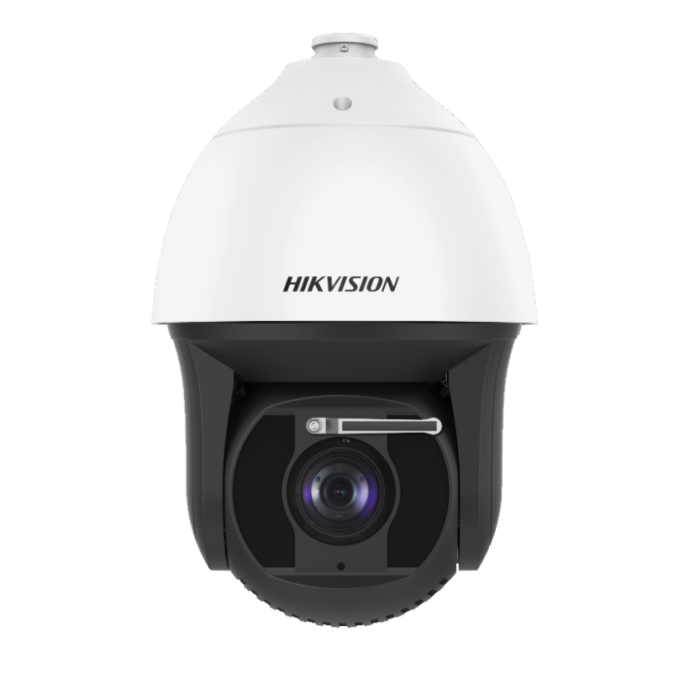

Hikvision DS-2DF8242IX-AELW(T5) 8" 2MP 42x Darkfighter Speed Dome Camera with Wiper Blade
SKU: DS-2DF8242IX-AELW(T5)
Available for delivery in 7~10 days
Key features:
- 1/1.8" progressive scan CMOS
- High-quality 2MP resolution
- Excellent low-light performance
- Darkfighter technology
- 42x optical zoom
- 16x digital zoom
- Up to 400m IR distance
- Water and dust resistance (IP67)
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
- Supports perimeter protection
- Supports alarm linkage
- 24V AC or Hi-PoE power
This product can be powered by 24V AC or Hi-PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Speed Dome Camera User Manual
Hikvision DS-2DF8242IX-AEL(T5) Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be available for Next Working Day Delivery.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2DF8242IX-AELW(T5) is a PTZ Speed Dome network camera powered by DarkFighter technology to provide excellent images even in darkness. With a 2MP resolution and 42x optical zoom capabilities, users will experience great detail over expansive areas.
Featuring smart IR supplement lighting which can reach up to 400m, as well as 140 dB Wide Dynamic Range, and 3D Digital Noise Reduction the DS-2DF8242IX-AELW(T5) can adapt to various challenging light scenarios and still provide high-quality images.
Rated IP67 the PTZ is suitable for outdoor use, as it can withstand adverse weather conditions as well as dirt and dust. Additionally, the built-in wiper blade is activated automatically on detection of moisture, wiping the lens clean of water droplets. These ratings make the speed dome series the perfect choice for a wide variety of areas that require high-definition results such as rivers, roads, railways and parks.
The DS-2DF8242IX-AELW(T5) is equipped with a number of useful smart features to enhance the users' security and surveillance setup. These include:
- Face Capture: Up to 30 faces can be detected at the same time. The camera supports detecting, capturing, tracking, grading and selecting a face in motion whilst providing the best picture of the captured face.
- Perimeter Protection: Line crossing, intrusion, region entrance, and region exiting are supported. Also supports alarm triggering by specified target types (human and vehicle).
- Vehicle Detection: To support road traffic surveillance the PTZ supports the capturing of License Plates, Vehicle Models, and Vehicle Colour.
- Smart Events: Detection of unattended baggage, object removal, intrusion, line crossing, region entrance, region exiting, audio exception and a vandal-proof alarm.
- Basic Events: Motion detection, video tampering alarm, alarm input and output
- Smart Tracking: Includes manual, panorama and event tracking. As well as supporting patrol tracking amongst multiple detection scenes.
- Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording.
Please note that this camera does not come with a power supply unit. The camera can be processed by a 24V AC Power Supply Unit, however, for ease of installation we recommend using POE where possible. Our recommended 60W POE injector can be found in our Frequently Brought Together section above.
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:2015.
| DORI | Detect | Observe | Recognise | Identify |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 3475.9m | 1379.3m | 695.2m | 347.6m |
