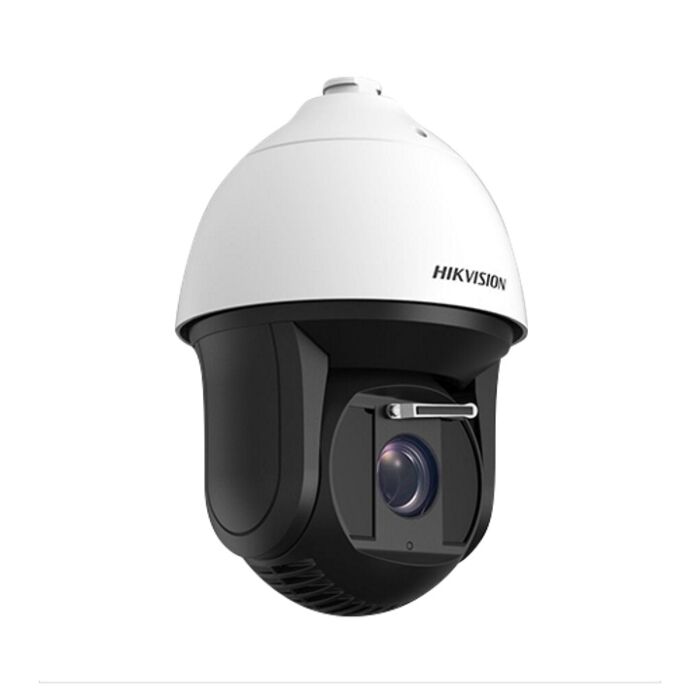

Hikvision DS-2DF8836IX-AELW Darkfighter 8MP Speed Dome Camera

Contact Us for Stock Levels

The Hikvision DS-2DF8836IX-AELW is an 8MP auto focus speed dome camera with a 2/3" progressive scan CMOS chip and a focal length of 7.5 - 270mm. Users also get free remote access via Hikvision's iVMS-4200 Video Management Software.

With an on-board MicroSD card slot that allows up to 265GB of storage, it also comes with H.265+/H.265 compression that gives users a saving on bandwidth & storage usage compared to previous H.264 compression.

The DS-2DF8836IX-AELW comes equipped configurable video motion detectors, which send users an alert when the camera detects something. This is supported by a feature that comes with camera, smart IR, which includes intrusion detection and line crossing.

Supported by a working temperature of -40°C to 65°C and IP66 weather-proof housing, this camera can be for either indoor or outdoor use. It also comes with a silicone wiper on the surface of the lens, this allows a good image no matter what the outdoor conditions, due to removing dirt and water making cleaning easier.

This camera part of the Darkfighter series, which enhances high quality images in low light environments. This is due to features such as: high light compensation, digital wide dynamic range (WDR), 3D digital noise reduction, and auto tracking 2.0.

Armed with 36x optical zoom & 16x digital zoom, providing users with more detail over larger areas. This is also supported by an IR distance of up to 200m of night vision.


Please note, this camera does not come with a power supply.

Hikvision DS-2DF8836IX-AEL(W) User Manual Hikvision DS-2DF8836IX-AEL(W) Quick Start Guide

Product Datasheets

Hikvision DS-2DF8836IX-AELW Darkfighter 8MP Speed Dome Camera Datasheet (0.89MB)

H3 Banner

Lux Levels - For more information on Lux Levels please look here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera

Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect

Hikvision Product Catalogue

Hikvision Darkfighter Catalogue

Hikvision Quick Guide

Frequently bought together

  1. DS-2DF8836IX-AELW
  2. +
  3. DS-1604ZJ-Box-Pole
  4. +

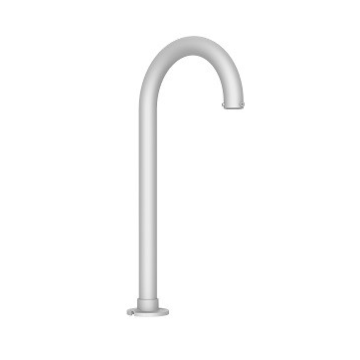

  5. DS-1619ZJ
  6. +

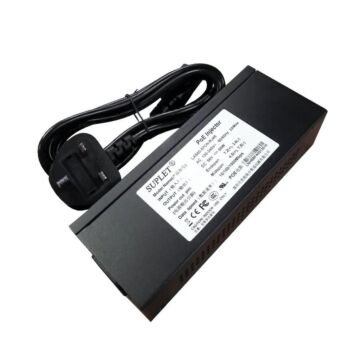

  7. Hikvision DS-POE-60W PoE Injector for Hikvision PTZ
  8. +
  9. Hikvision DS-1604ZJ Wall Mounting Bracket
  10. +

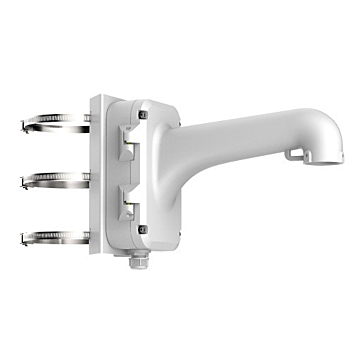

  11. DS-1604ZJ-Pole
  12. +
  13. DS-1660ZJ
  14. +
  15. Hikvision DS-1663ZJ Ceiling Mount Bracket
Total price: £0.00INCL VAT
Ex Vat: £0.00

- Support H.265+/H.265 video compression - 36× optical zoom, 16× digital zoom - Up to 200 m IR distance - Digital WDR, 3D DNR, HLC, Smart IR - 2/3" progressive scan CMOS - Up to 4096 × 2160 resolution - Auto tracking 2.0 - Wiper - Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR

7.5mm - 270mm: Horizontal field of view: 56.1° to 2.0°
Focal Length VF Diagram

For help on figuring out which focal length is best for you please see here.

Image chip size 2/3"
Image chip type Progressive Scan CMOS
Audio Audio input/output (full duplex)
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
POE built-in Yes
Max. Resolution 4096 X 2160
Lens Mount auto-focus zoom lens
Lens Focal Length 7.5 ~ 270mm
Viewing Angle Horizontal Field of View 56.1° to 2.0°, Vertical field of view: 33.4° to 1.1°, Diagonal field of view: 62.9° to 2.3°.
Aspect ratio N/A
Megapixels 8 MP
Supplied with lens Yes
IR Range Up to 200m
PSU included No
ONVIF Compatible Yes
Power Consumption max. 60W
Built-In Storage micro-SD
Warranty 3 Years
Launch Date March 2019
Write Your Own Review
You're reviewing:Hikvision DS-2DF8836IX-AELW Darkfighter 8MP Speed Dome Camera
Your Rating
Customer Questions
Do these cameras need an injector or can they just run of poe from the nvr

Most current Hikvision NVR models support up to PoE+ (Max. 30W) on their built-in PoE ports, if you look at the datasheet for this PTZ model you will see it uses High-POE which is max. 60W so you will have to use the separate 60W PoE injector shown in...
