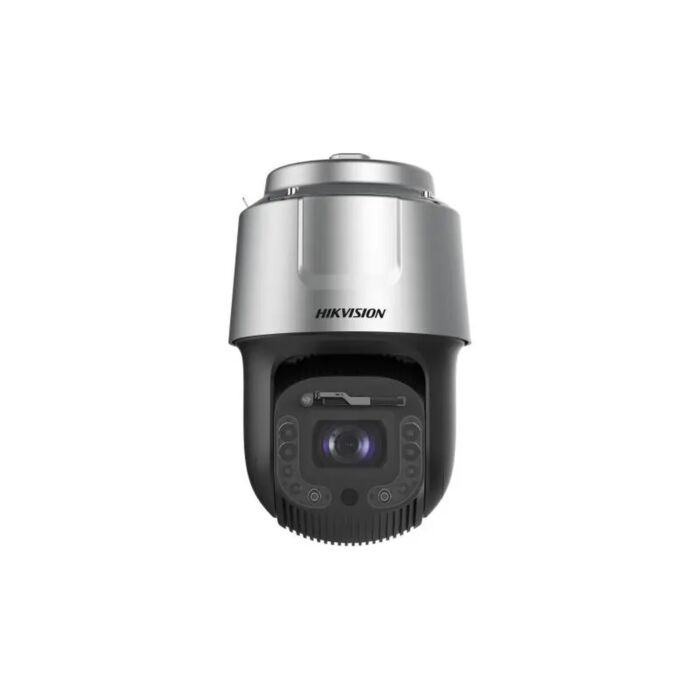

Hikvision DS-2DF8C842IXG-ELW 8-inch 4K 42X DarkFighter IR Network Speed Dome
SKU: DS-2DF8C842IXG-ELW~EOL
Out of stock
The DS-2DF8C842IXG-ELW is now End of Life.
We recommend the DS-2DF8C842IXG1-ELWY as a suitable replacement.
Key features:
- 1/1.2" progressive scan CMOS
- 8 MP and up to 3840x2160 resolution
- High quality low-light performance with DarkFighter technology
- Close up views over large areas with 42x optical zoom and 16x digital zoom
- Lens focal length between 7.5-315mm
- IR Range up to 500m
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
- Smart Pan-Tilt Correction
- Operating conditions - Temperature: -40°C to 70°C, Humidity: ≤ 95%
- PTZ Capabilities - supports Power-off memory, Park Actions, 3D Positioning and more
- 360° Pan movement range and between -20° to 90° Tilt movement range
- IP67 Ingress Protection
- IK10 Vandal Protection
This Product can be powered by 24 VAC or PoE. We recommend using PoE.
Please note: this product does not come with a power supply.
Hikvision Network Speed Dome User Manual
Hikvision Network Speed Dome Quick Start Guide
Hikvision Product Catalogue
Please note: this product may not be immediately available from UK stock.
Please contact us before purchasing for a lead time.
Useful Hikvision Tools
- SADP Download
- IE Tab Download
- Hik-Connect
Details
The Hikvision DS-2DF8C842IXG-ELW 8MP 42X Network IR Speed Dome offers high-quality imaging over expansive areas with its 42x optical zoom and 16x digital zoom. This is also supported by the 360° Pan movement range and -20° to 90° Tilt movement range.The IR distance of up to 500m also offers an expansive night view that is complemented by the strong low-light performance of DarkFighter technology. It is also protected against all weather conditions as the IP67 Ingress Protection offers defence against water and dust and also has a wiper with rain-sensing auto control.
The DS-2DF8C842IXG-ELW can also support detecting up to 30 faces at the same time as well as road traffic to detect vehicles. Furthermore, it has a built-in memory card slot that can support microSD cards up to 256GB. The PTZ capabilities include Power-off memory, Park Actions, 3D Positioning and more.
Events and Alarm Linkage
Users should also note that the DS-2DF8C842IXG-ELW also comes equipped with support for a selection of surveillance features, including Basic events, Smart events, Deep learning functions, and Alarm linkage.
- Basic Events: Motion detection, video tampering alarm, alarm input, alarm output, and exception.
- Smart Events: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, and audio exception detection.
- Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance centre, upload to FTP, audible warning, and NAS video recording.
- Smart Tracking: Manual tracking, and auto-tracking
- Deep Learning Function: Face Capture (can detect up to 30 faces simultaneously), face comparison, and perimeter protection.
- Road Traffic and Vehicle Detection: Support vehicle detection (license plate number, vehicle model, and vehicle colour recognition)
DORI stands for Detect, Observe, Recognise & Identify.
The DORI Distance provides users with a general overview of the camera's capability to distinguish people or objects within its field of view.
| Detect | Observe | Recognise | Identify | |
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m |
| Distance (Tele) | 6300m | 2500m | 1260m | 630m |

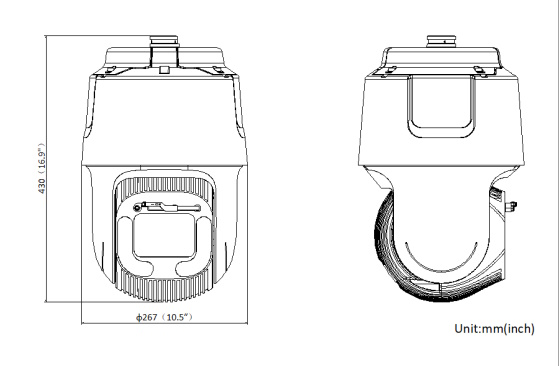

Dimensions:
